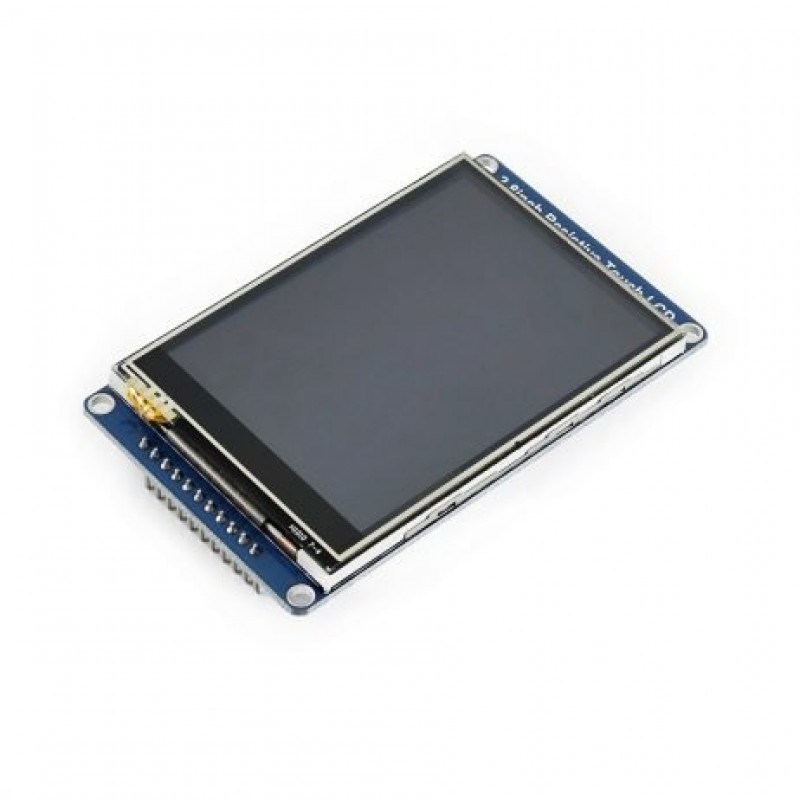

This is a multicolor graphic IPS LCD display, 2.8inch diagonal, 320x240 pixels, with a resistive touch screen. This TFT display is big (2.8 diagonal) bright and colorful! 240x320 pixels with individual RGB pixel control, this has way more resolution than a black and white 12864 display. It has an onboard touch controller for a smoother touch experience.


Package Includes:

  1. Onboard touch controller, smoother touch experience than solutions that directly use AD pins for touching.
  2. SPI interface requires a few pins.
  3. Programmable backlight control, power saving.
  4. Comes with development resources and a manual (examples for STM32/AVR/PIC).

Features:

1 x Waveshare 2.8 Inch Resistive Touch LCD Display



Specifications :-

Driver

HX8347D

Touch Controller

XPT2046

LCD Type

IPS

Communication Interface

SPI

Display Colors

RGB, 65K colors

Resolution

320 x 240

Backlight

LED

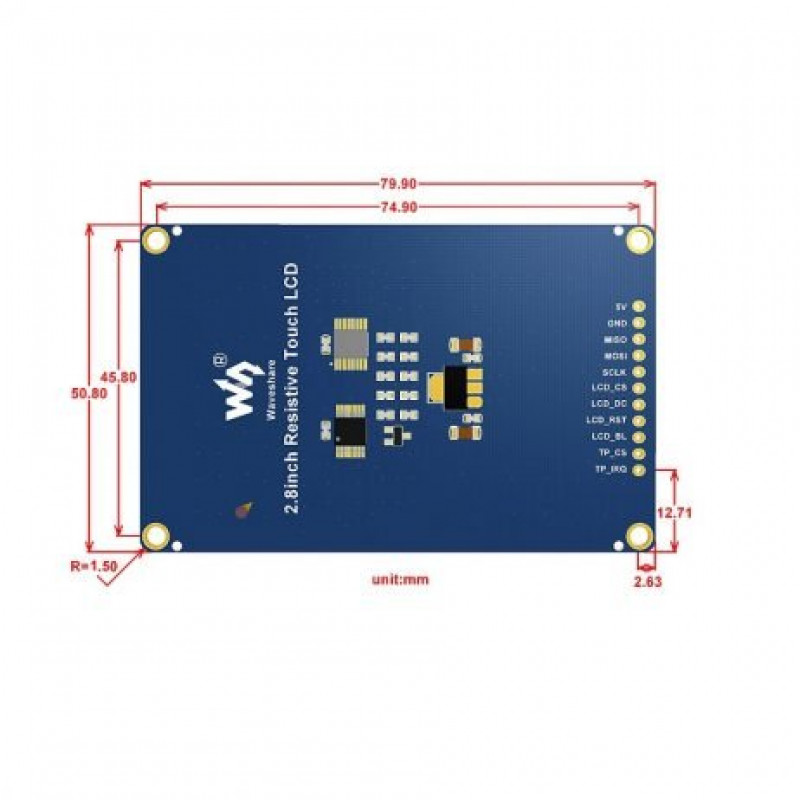

Display Size (mm)

57.6mm 43.2mm

Touch Type

4-wire Resistive

Power Supply Voltage

5V

Logic Level

3.3V

Length (mm)

80

Width (mm)

51

Weight (gm)

30


Brand/Manufacturer Waveshare
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1414.82 (Inclusive of all Taxes)
