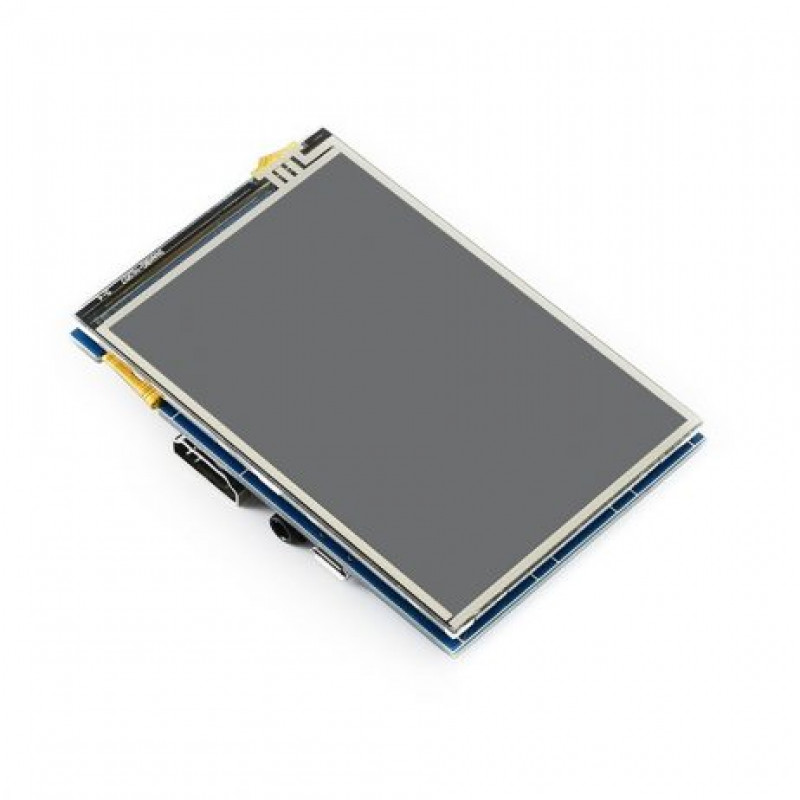

This is a Waveshare 3.5-inch Resistive Touch HDMI Screen LCD display, with a resolution of 480x320 and a resistive touch panel, which supports Raspberry Pi and can also be used as a computer monitor. Also works as a computer monitor, in this case, the touch panel is unavailable and an HDMI cable is required. This LCD can support Raspbian / Ubuntu / Kali / Retropie. The hardware resolution of this LCD is 480x320 but you can change the resolution by software. In Raspbian, these resolution settings can work properly.


  1. 480x320 hardware resolution, software configurable up to 1920x1080.
  2. Resistive touch control.
  3. IPS technology, high quality and perfect displaying from the very wide viewing angle.
  4. Compatible and Direct-connect with any revision of Raspberry Pi.
  5. Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie).
  6. Supports FBCP software driver as well, allows to config software resolution, and set up dual-display.
  7. Also works as a computer monitor, in this case, the touch panel is unavailable and an HDMI cable is required.
  8. HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os).
  9. Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
  10. Supports 100-level backlight adjustment.
  11. Supports HDMI audio output.

Package Includes:

  1. 1 x 3.5inch HDMI LCD

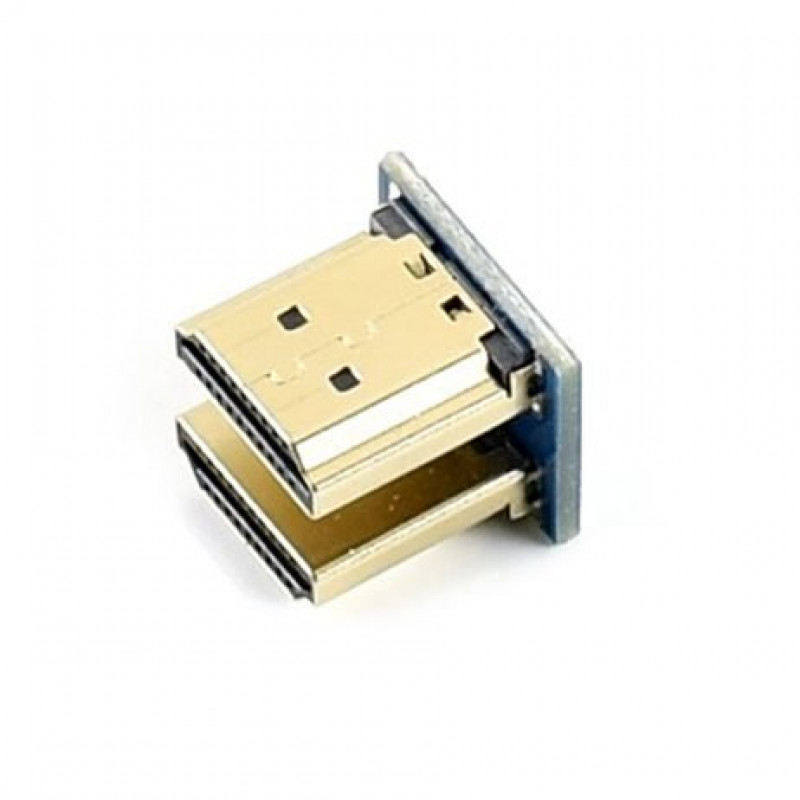

  2. 1 x HDMI connector

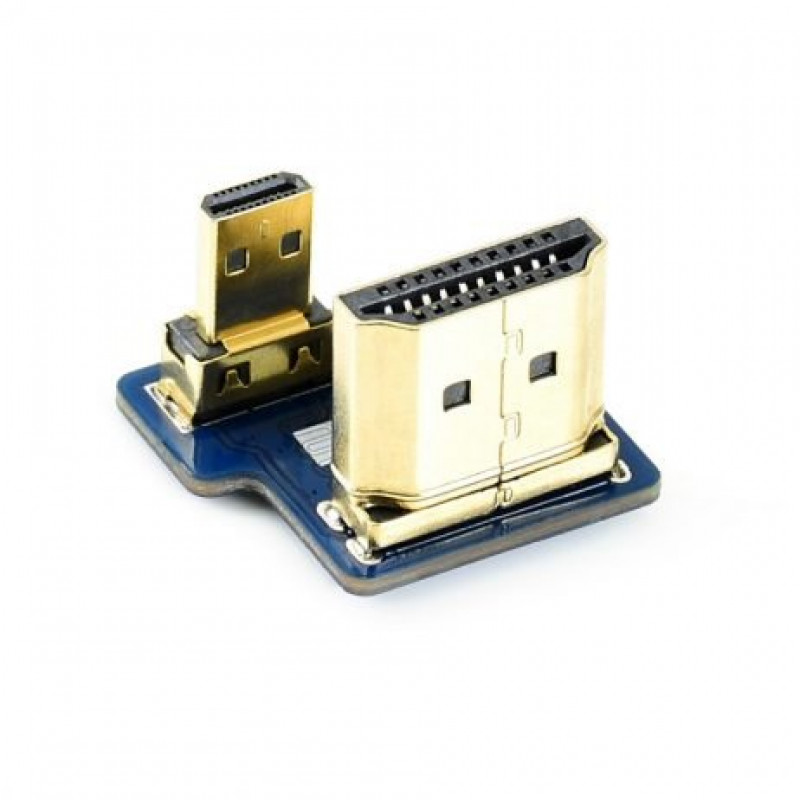

  3. 1 x HDMI to micro HDMI connector
  4. 1 x Touch pen
  5. 1 x Aluminium heat sink
  6. 1 x Quick start sheet

Specifications :-



Pixel Resolution

480 x 320

Display Size (inch)




View Angle


Touch type


Length (mm)


Width (mm)


Weight (gm)


Brand/Manufacturer Waveshare
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2771.82 (Inclusive of all Taxes)
