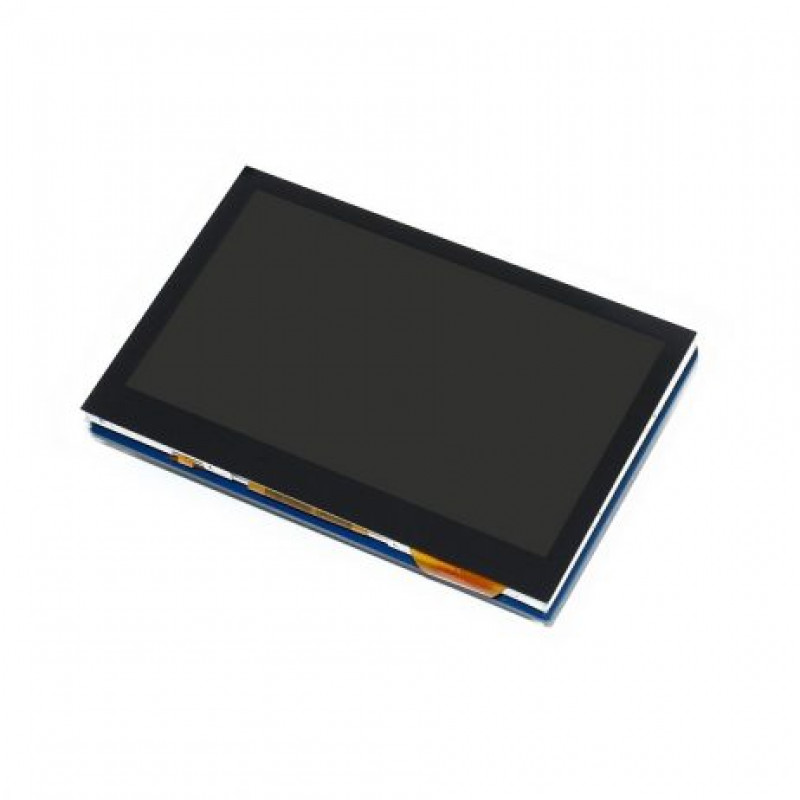

This is a Waveshare 4.3 Inch Capacitive Touch multicolor graphic LCD display, 4.3inch diagonal, 800x480 pixels. It is able to display 16,777,216 colors via the 24-bit RGB interface, supports up to 5-points capacitive touch control via an I2C interface. Although the 800x480 common HDMI display is made for Raspberry Pi, you can use it on other compatible boards too.


Features:

  1. 4.3-inch capacitive touch display, 800x480 resolution.
  2. The capacitive touch panel on the I2C bus, 5-points touch control, with touch, interrupt.
  3. 24-bit RGB display interface, 16,777,216 colors, fast refreshing.
  4. Comes with development resources and a manual (examples for STM32F4 / STM32F7).

Package Includes:

  1. 1 x 4.3inch Capacitive Touch LCD
  2. 1 x 40-pin FFC (opposite side contact)

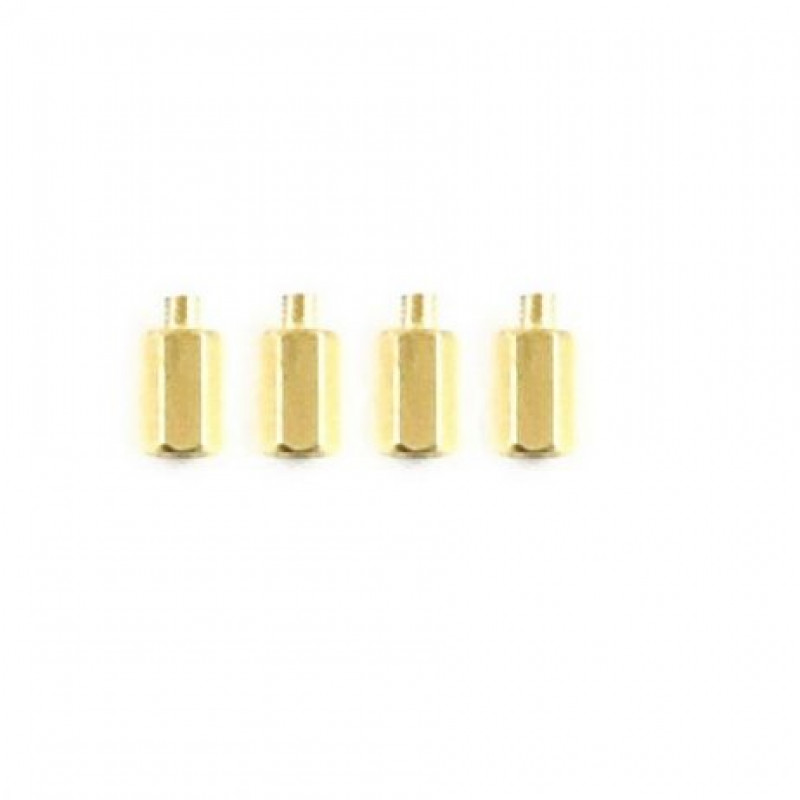

  3. 1 x Screws pack (4pcs)


Specifications :-

LCD Type

IPS

LCD Interface

24-bit RGB

Touch Screen Interface

I2C

Display Colors

16,777,216

Touch Controller

GT911

Display Size (mm)

95.04 (W) 53.86 (H)

Dot Pitch (mm)

0.1188 (W) 0.1122 (H)

Backlight

LED

Resolution

800 x 480

Power Supply Voltage

5V

Logic Level

3.3V

Length (mm)

106

Width (mm)

68

Weight (gm)

90


Brand/Manufacturer Waveshare
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3184.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Waveshare 4.3 Inch Capacitive Touch LCD Display

  • Product Code: EC-5476
  • Availability: 14
  • Rs.2699.00
  • (Excluding 18% GST)
