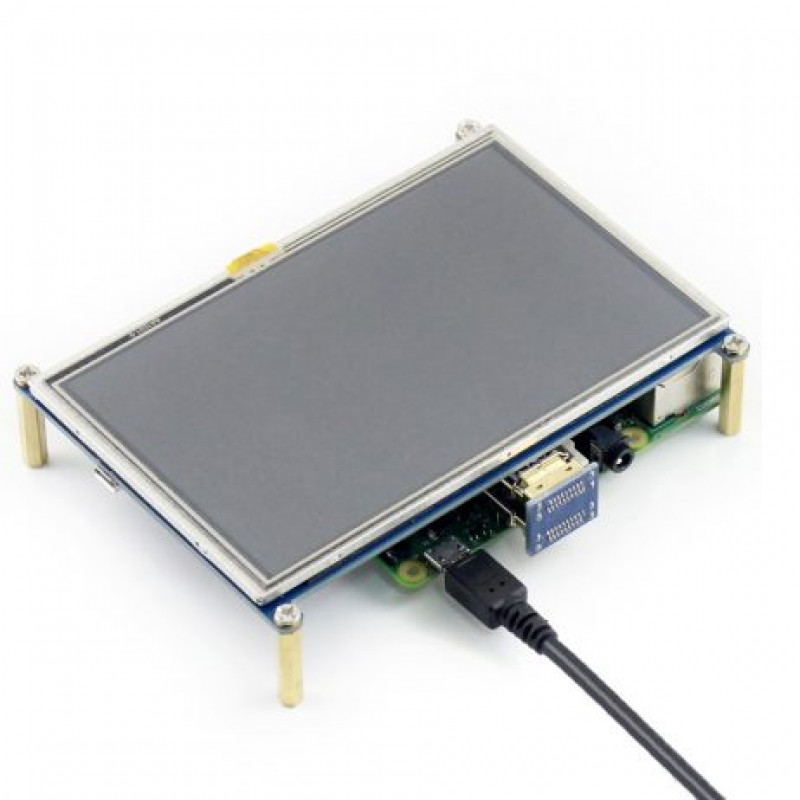

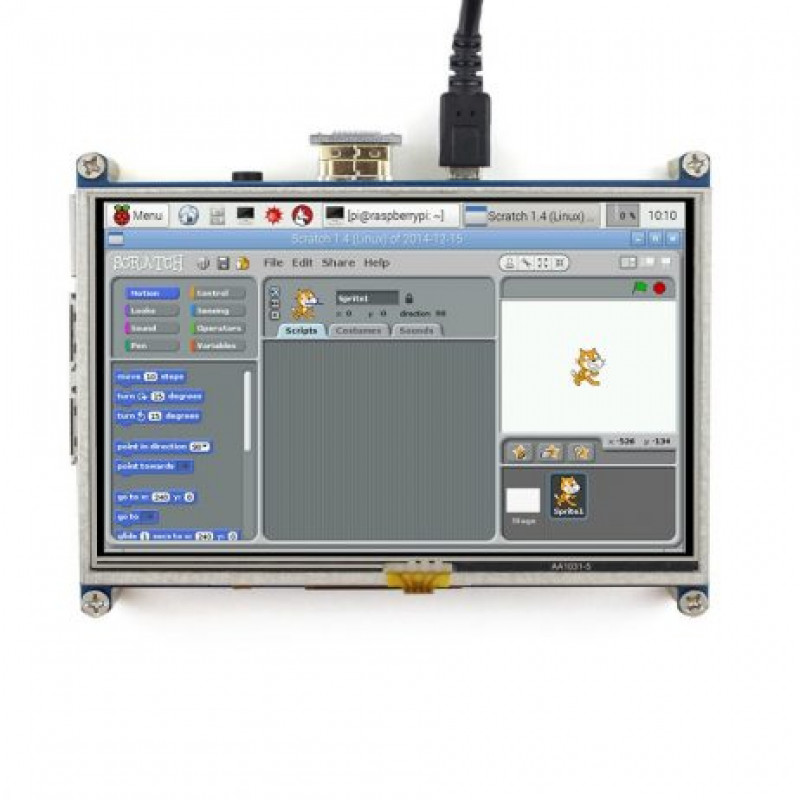

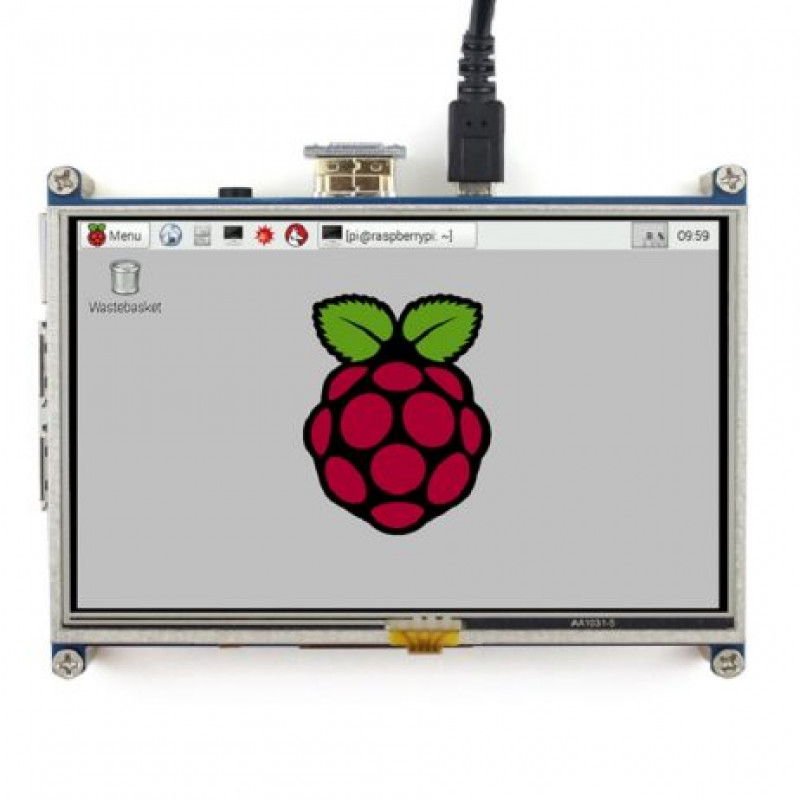

This is a Waveshare 5-inch Resistive Touch Screen LCD display with the latest V2 version and a resolution of 800480 which supports Raspberry Pi. This LCD can support Raspbian / Ubuntu / Kali / Retropie systems. It is compatible and can be directly inserted into any version of Raspberry Pi (except the Pi 1 Model B or Pi Zero, which requires an HDMI cable).

Note: This product can only work on a Raspberry Pi but not work on a PC. If the HDMI interface of the LCD is connected to the HDMI interface on a PC, the LCD will not display anything.

Features:

    1. 800x480 hardware resolution.
    2. Resistive touch control.
    3. It is compatible and can be directly inserted into any version of Raspberry Pi.
    4. Provide driver. (support Raspbian\Ubuntu\Kali and Retropie system).
    5. When only used for display, does not occupy any I/O resources.
    6. Only the touch function will occupy I/O resources.
    7. Support backlight control, more power saving.


    New features of the latest version of V2:

    1. Improve the backlight drive scheme, lower power consumption. (The power consumption of the V1 version is larger)
    2. Improve the screw locking method, which is more scientific and reliable.

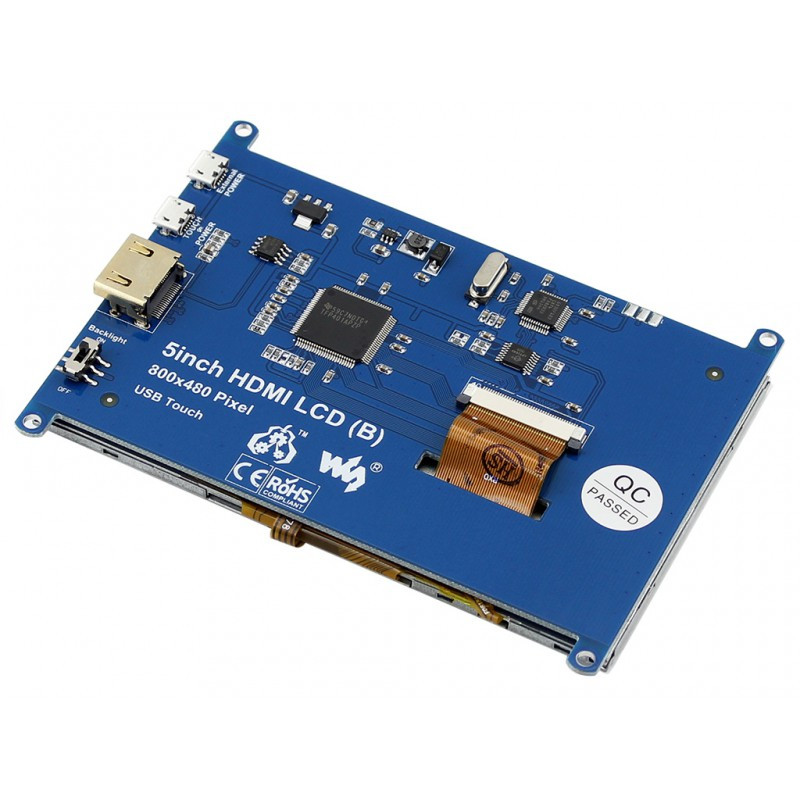

    3. Improve PCB silkscreen, mark LCD occupied pins. (V1 version is not intuitive enough)

Package Includes:

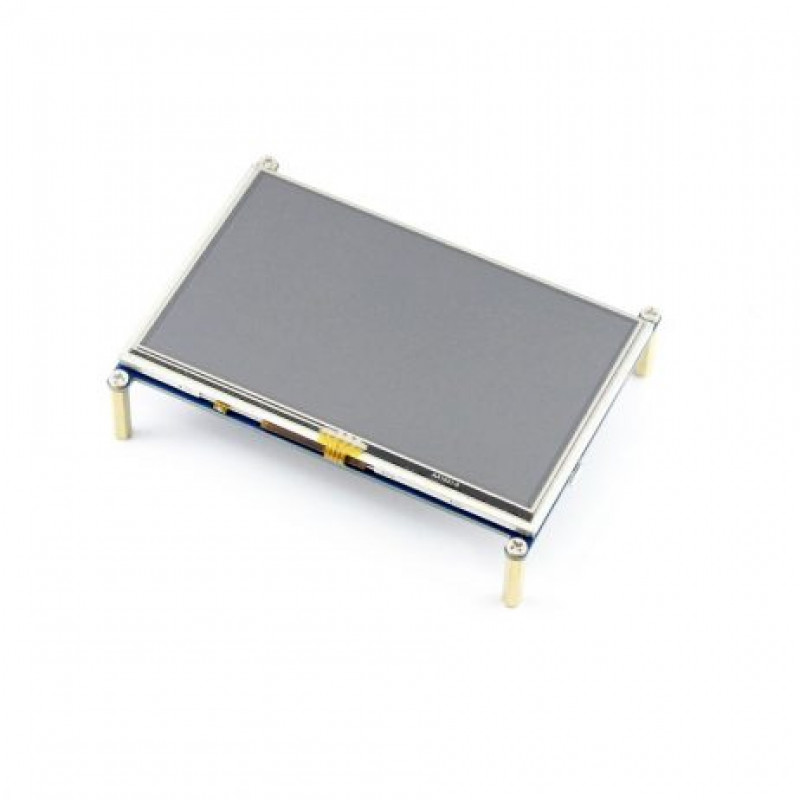

  1. 1 x 5 inch HDMI LCD

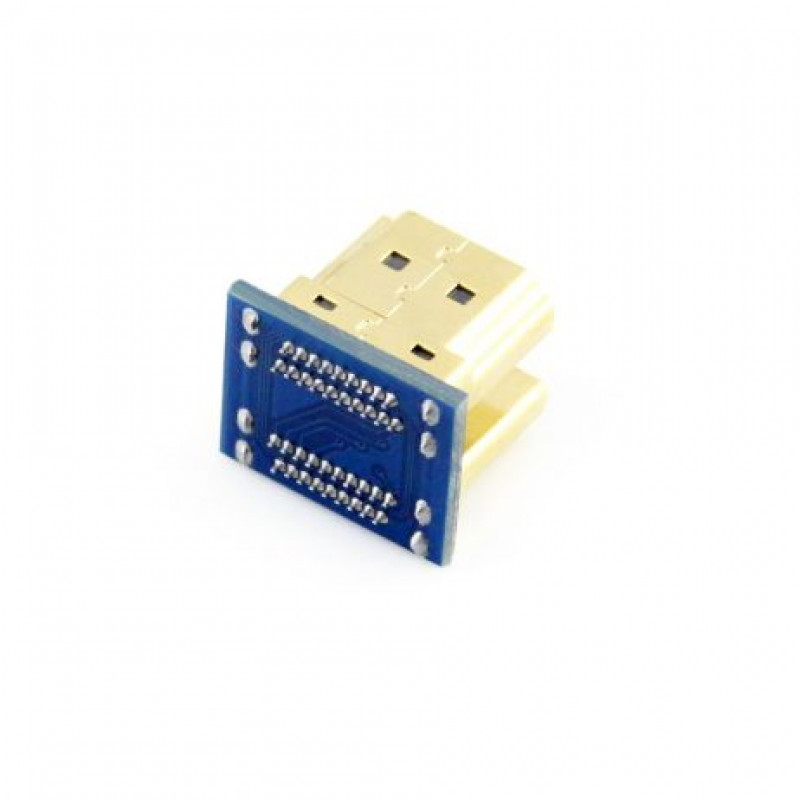

  2. 1 x HDMI connector

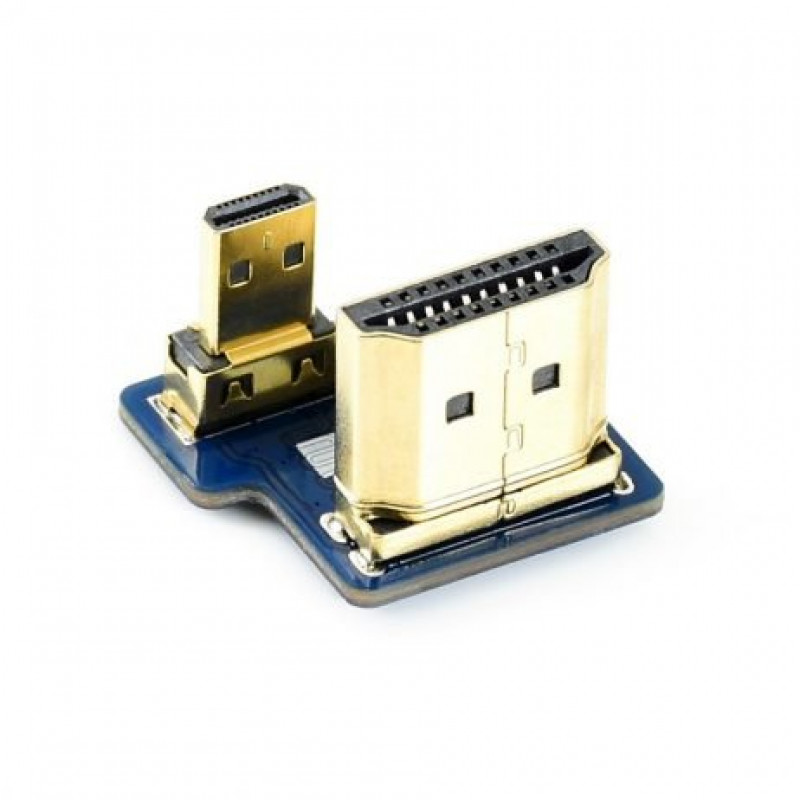

  3. 1 x HDMI to micro HDMI connector
  4. 1 x Touch pen

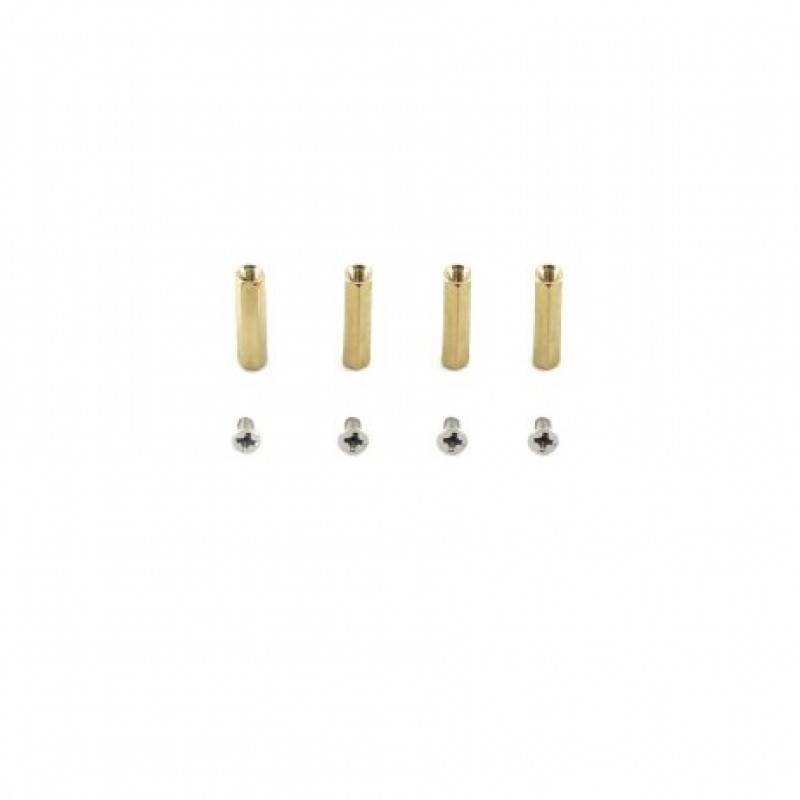

  5. 1 x RPi screws pack (4pcs)
  6. 1 x Quick start sheet


Specifications :-

Brand

Waveshare

Pixel Resolution

800 x 480

Display Size (inch)

5

HDMI Port

Yes

View Angle

170

Touch type

Resistive

Length (mm)

121

Width (mm)

90

Weight (gm)

130


Brand/Manufacturer Waveshare
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3609.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Waveshare 5 Inch Resistive HDMI LCD Display 800x480

  • Product Code: EC-5473
  • Availability: 20
  • Rs.3399.00
  • (Excluding 18% GST)
