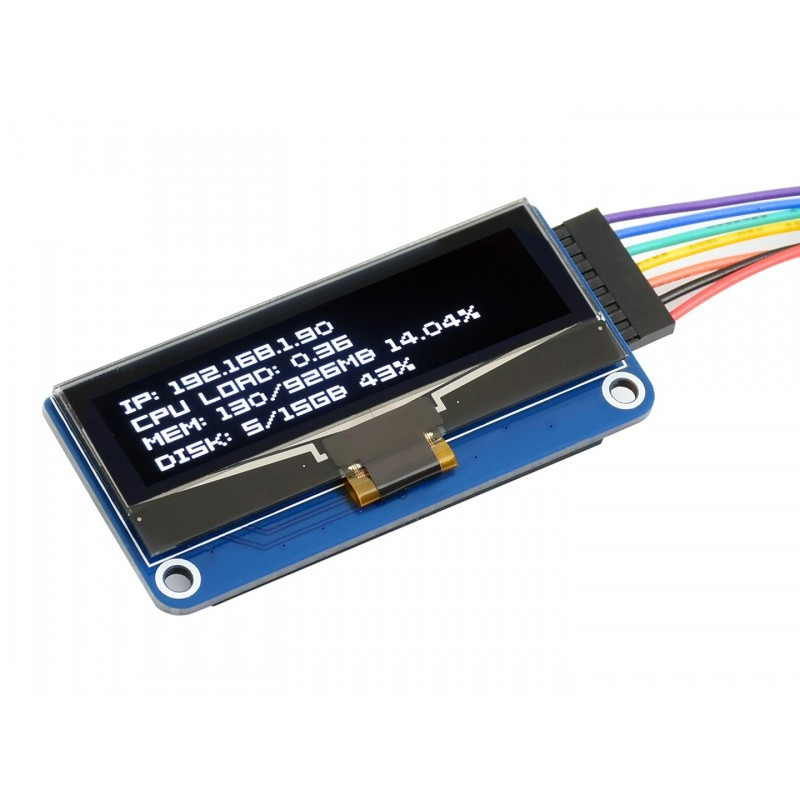

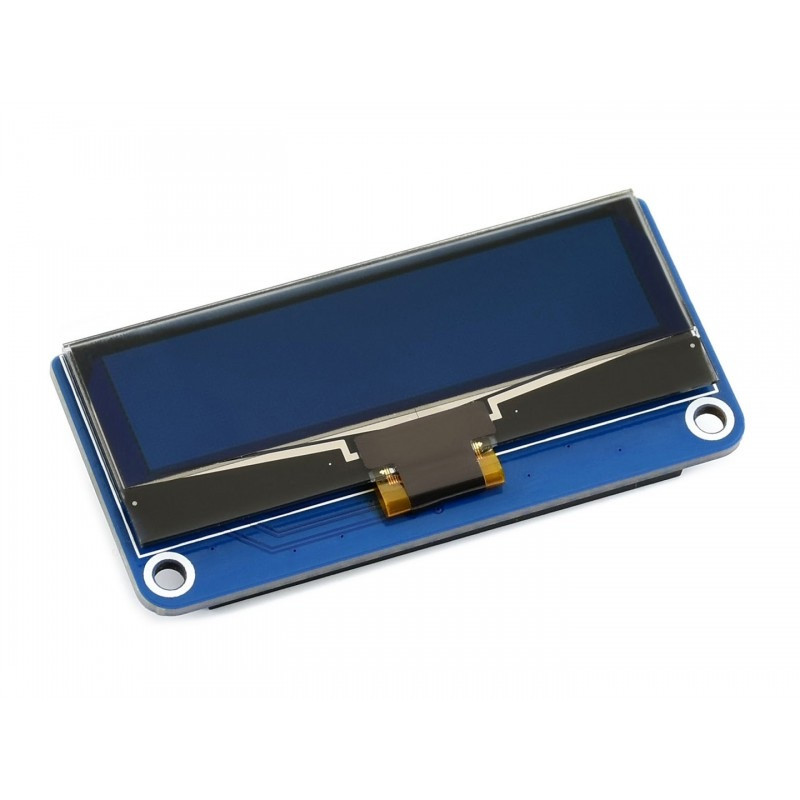

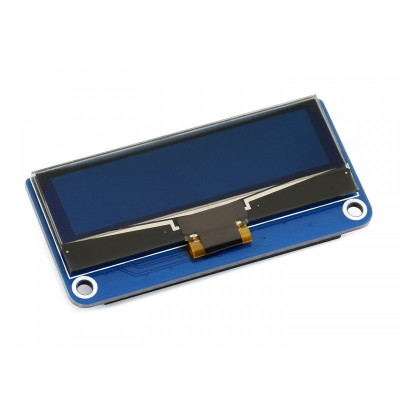

This is an OLED display HAT for Raspberry Pi, 2.23 inch diagonal, 12832 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.

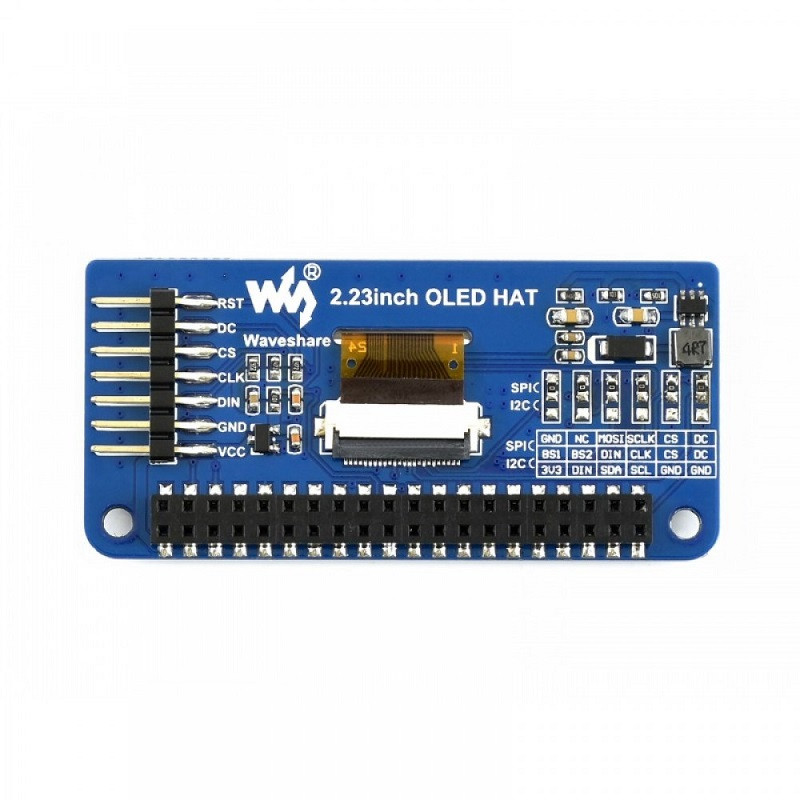

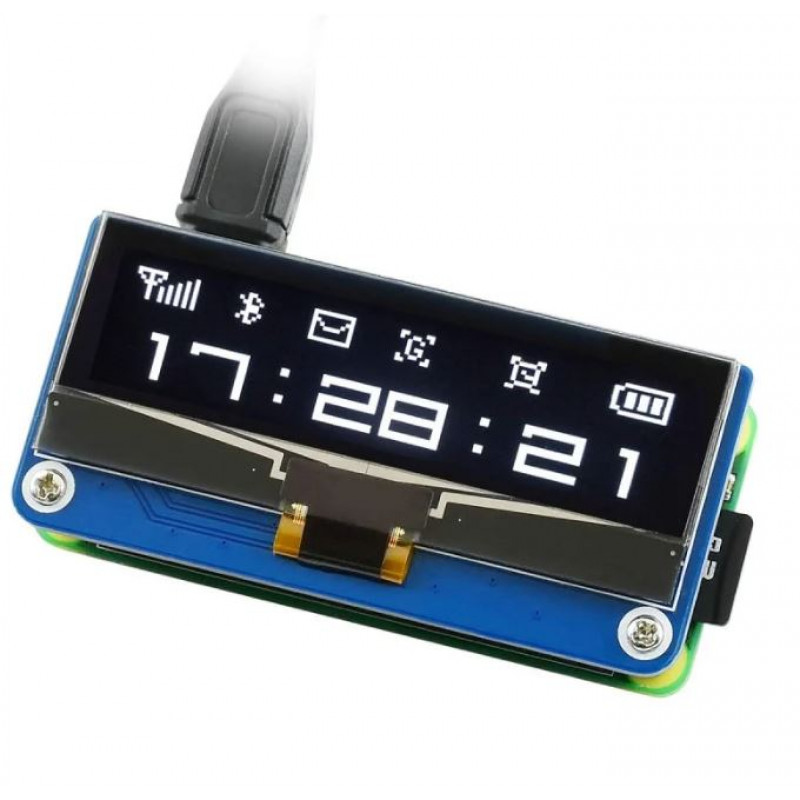

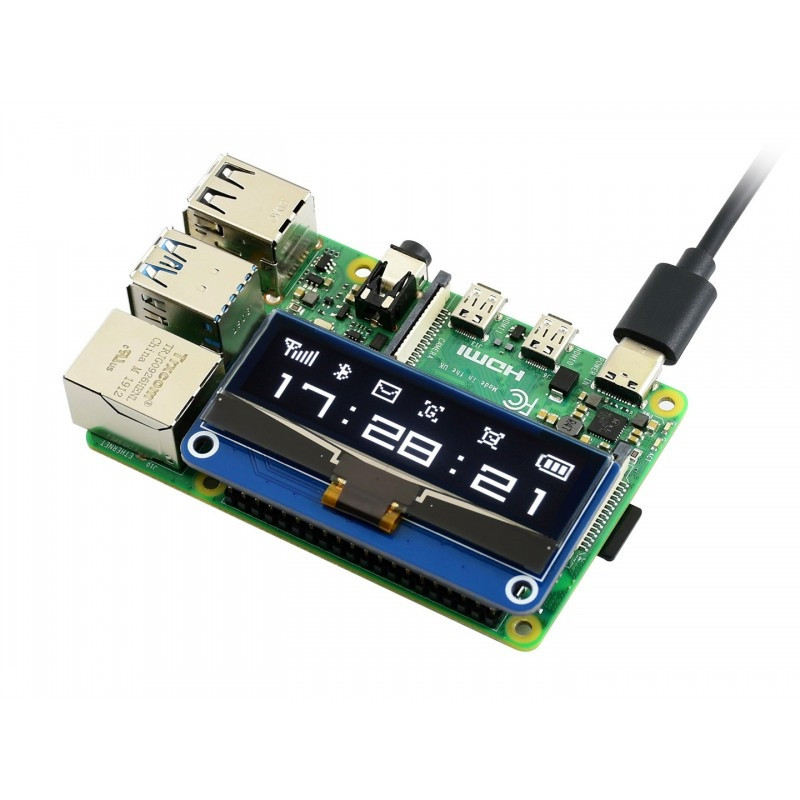

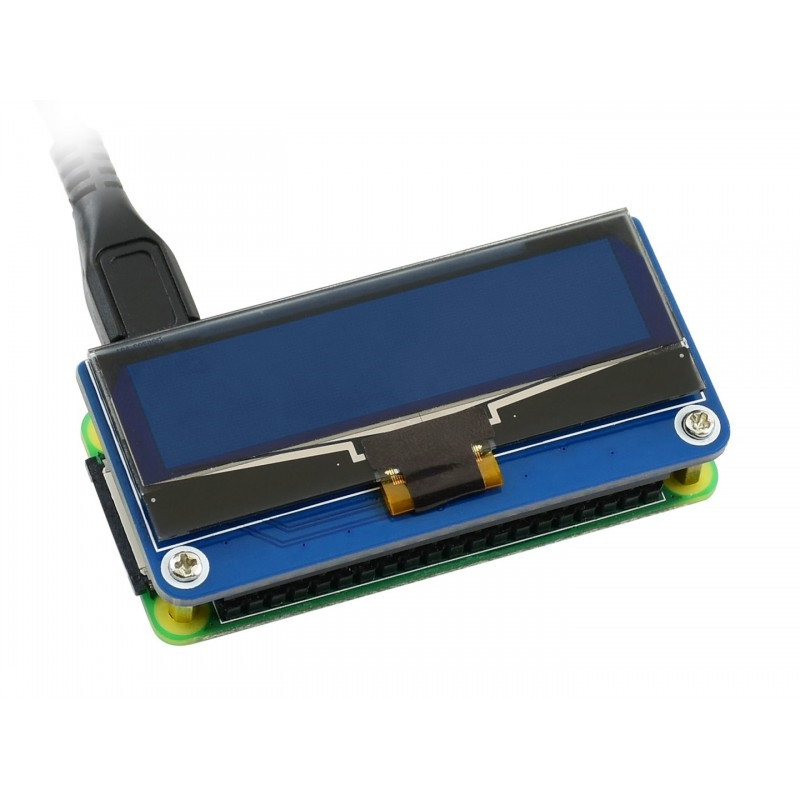

You can directly add it on Raspberry Pi by the 40 PIN header, or connect it to another hardware platform via the I2C and SPI interfaces. The interface of 2.23 inch OLED HAT is the default SPI, you can also switch to I2C by soldering the resistors on the back of OLED.
Features:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Optional interfaces: SPI (default), or I2C, configured via onboard resistor
- Brings control pins for host boards like Arduino/STM32
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Package Includes:
1 x 2.23inch OLED HAT
1 x RPi screws pack (2pieces)
Specifications:
| Driver Chip | SSD1305 |
| Interface | SPI / I2C |
| Resolution | 128x32 |
| Display Size | 2.23inch diagonal |
| Colors | white |
| Visible Angle | >160 |
| Operating Voltage | 3.3V / 5V |
| Logic level | 3.3V |
| Length (mm) | 65 |
| Width (mm) | 30.5 |
| Height (mm) | 3.8 |
| Weight (gm) | 19 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare 5.6 CM (2.23 inch) 128x32 OLED Display HAT for Raspberry Pi
- Product Code: EC-6765
- Availability: 7
-
Rs.1532.82
