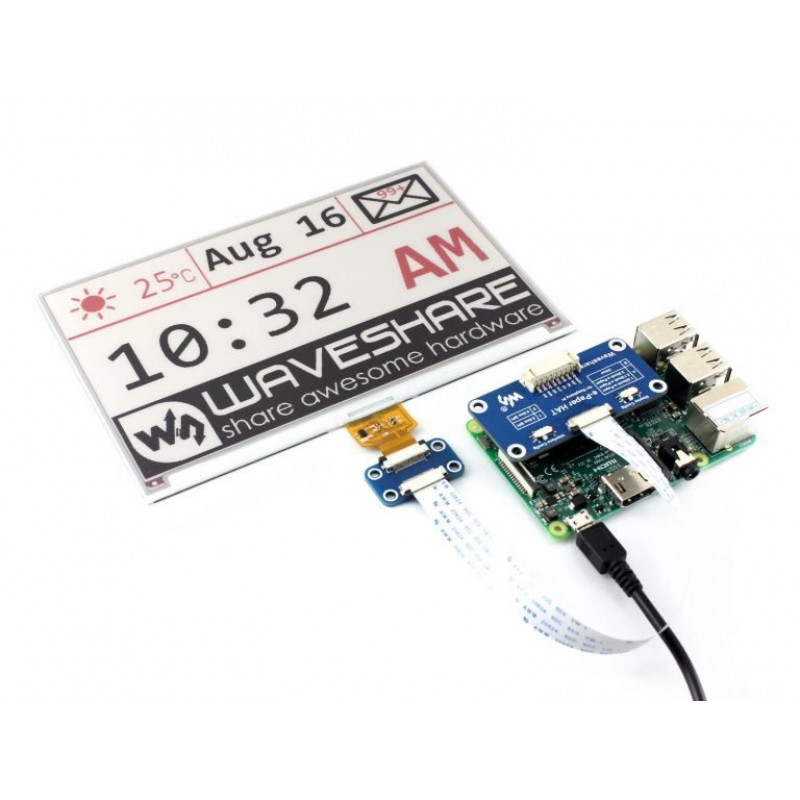

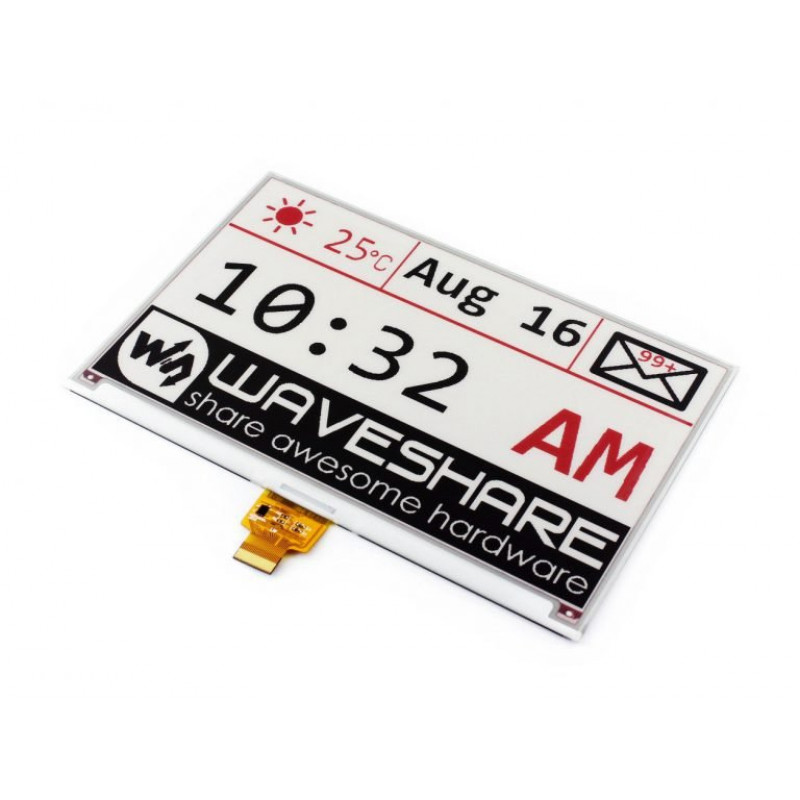

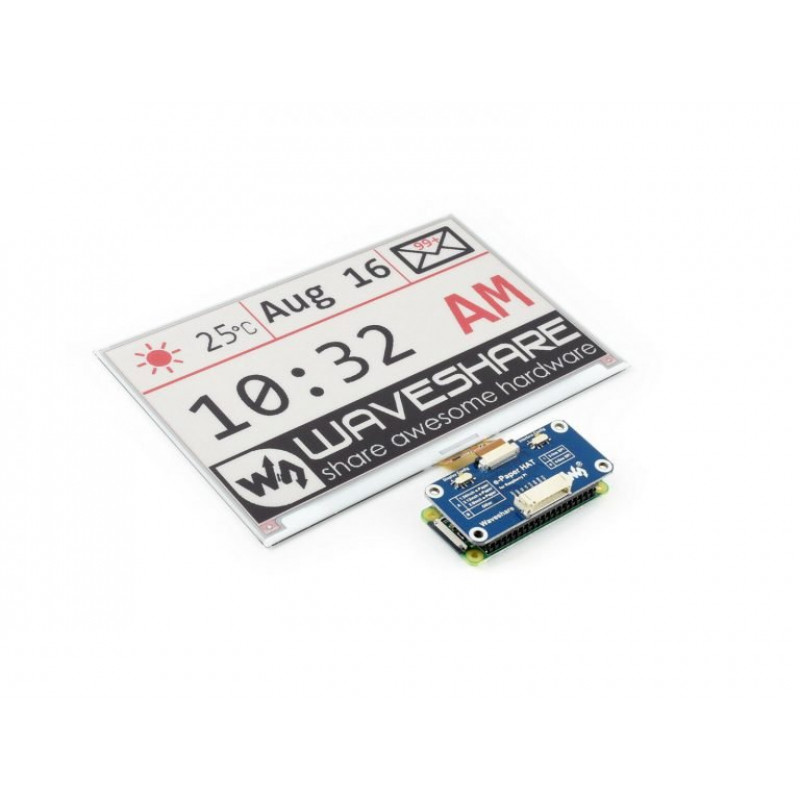

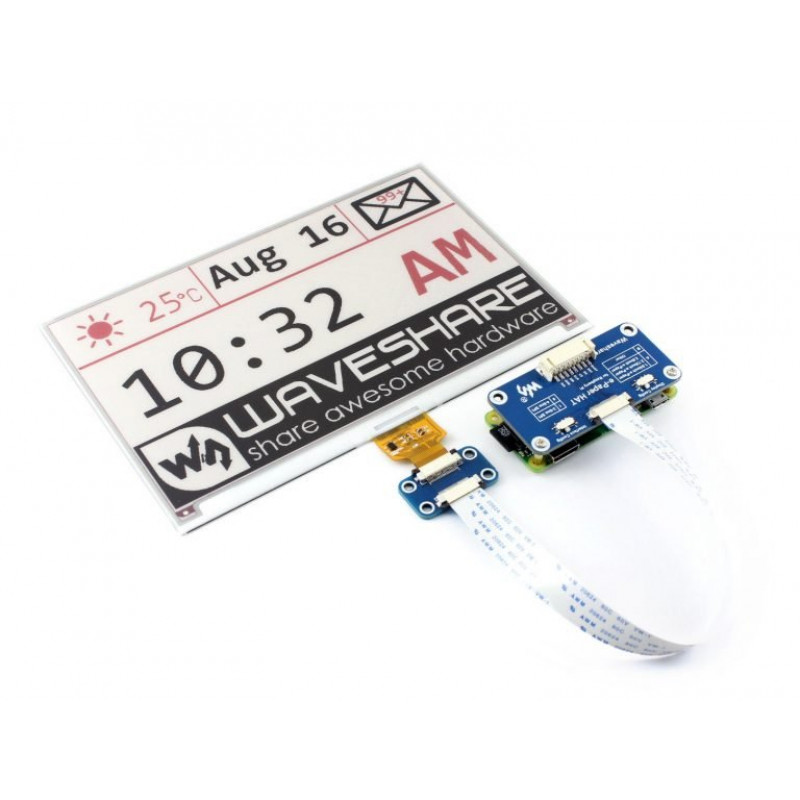

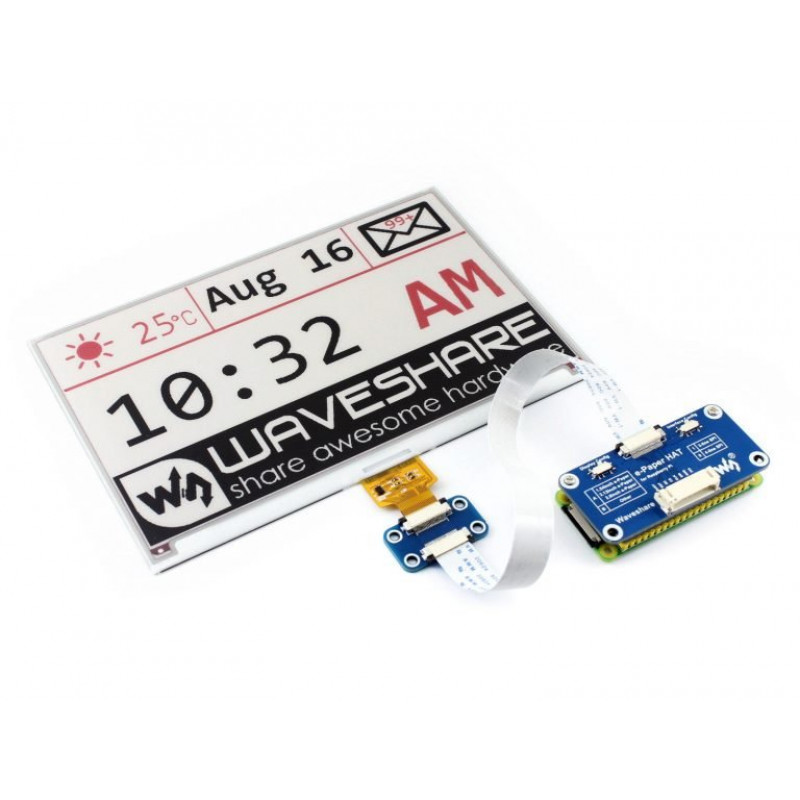

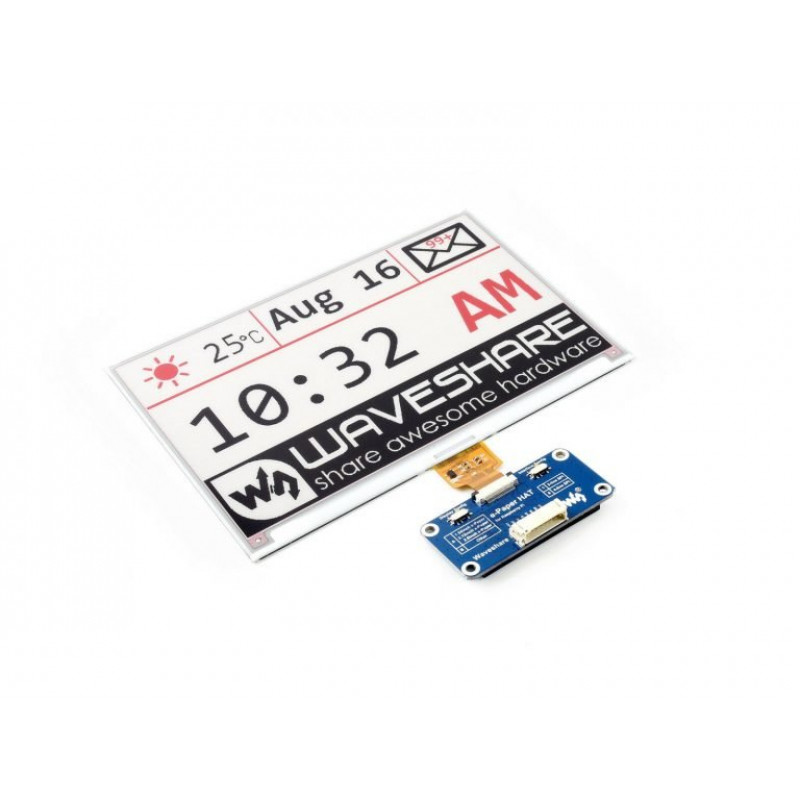

This is an E-Ink display HAT for Raspberry Pi, 7.5-inch, 640x384 resolution, with an embedded controller, communicating via SPI interface. This display shows the data on the screen as same as it seen on printed paper.

There is no backlight so it can keep displaying last content for a long time even when the power is down. As these displays have no backlight panels and it doesn't need a continuous power supply to display the (static data with periodic intervals) data on the screen,

The Display it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, Basically power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.. SPI interface can be used.


Features:

  1. No backlight keeps displaying last content for a long time even when poweris down
  2. Ultra low power consumption, basically power is only required for refreshing
  3. Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
  4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  5. Onboard voltage translator, compatible with 3.3V/5V MCUs
  6. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)


Interface:

SYMBOLDESCRIPTION
VCC3.3V/5V
GNDGround
DINSPI MOSI pin
CLKSPI SCK pin
CSSPI chip selection, low active
DCData/Command selection (high for data, low for command)
RSTExternal reset, low active
BUSYBusy status output, high active


Useful Link:

Wiki: www.waveshare.com/wiki/7.5inch_e-Paper_HAT


Package Includes:

1 x7.5-inch E-Ink Paper display HAT for Raspberry Pi

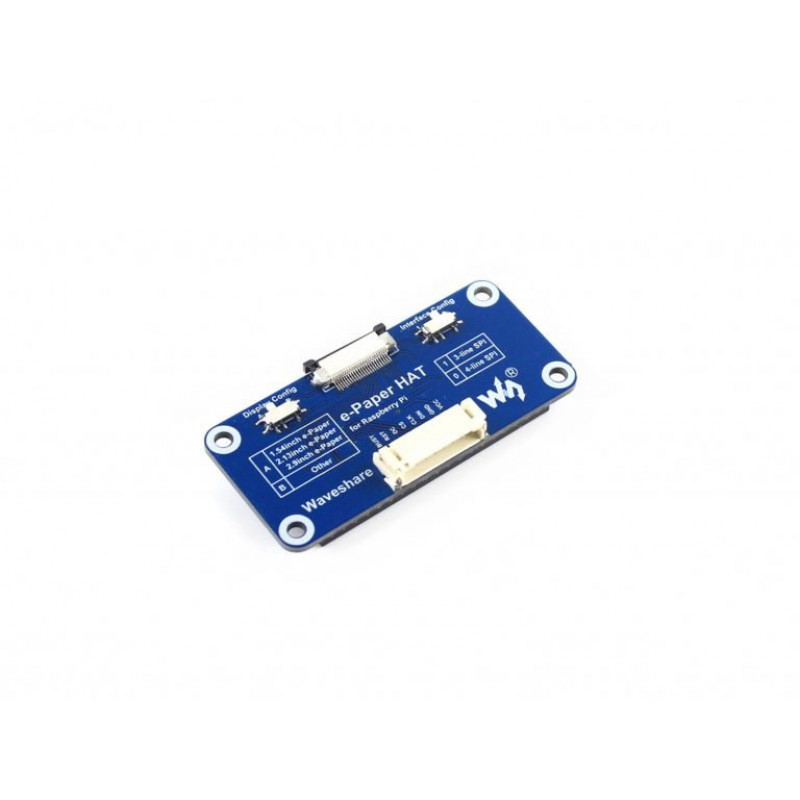

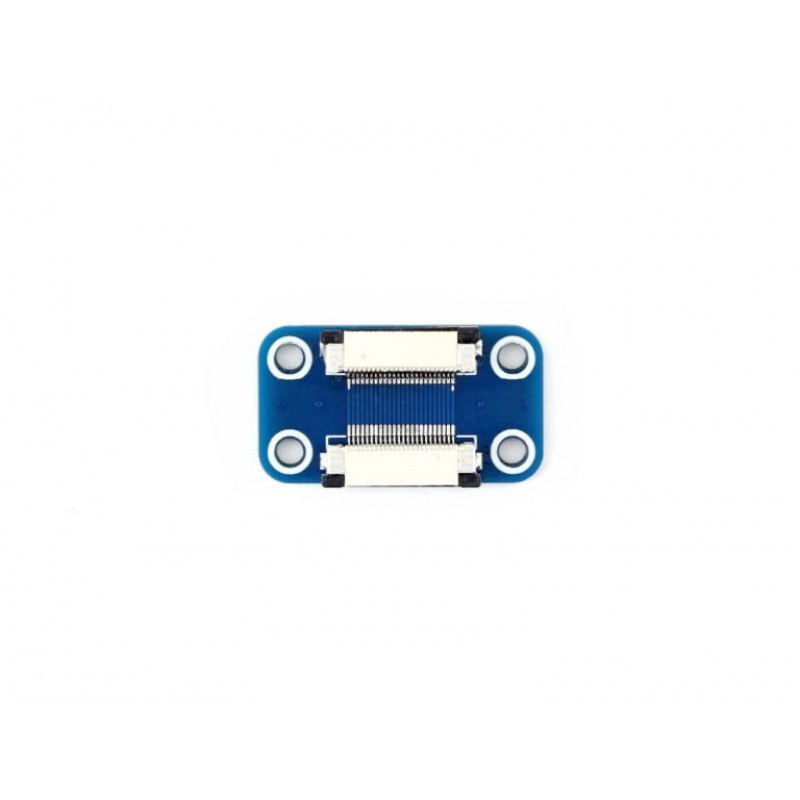

1 x e-paper Hat for Raspberry Pi to e-paper Adapter

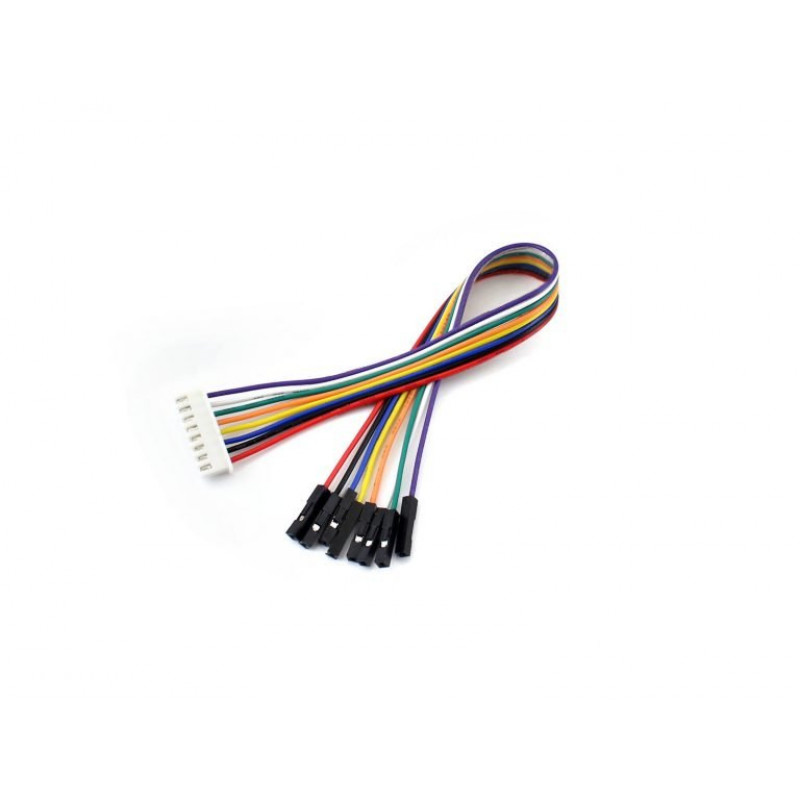

1 x Interfacing Cable

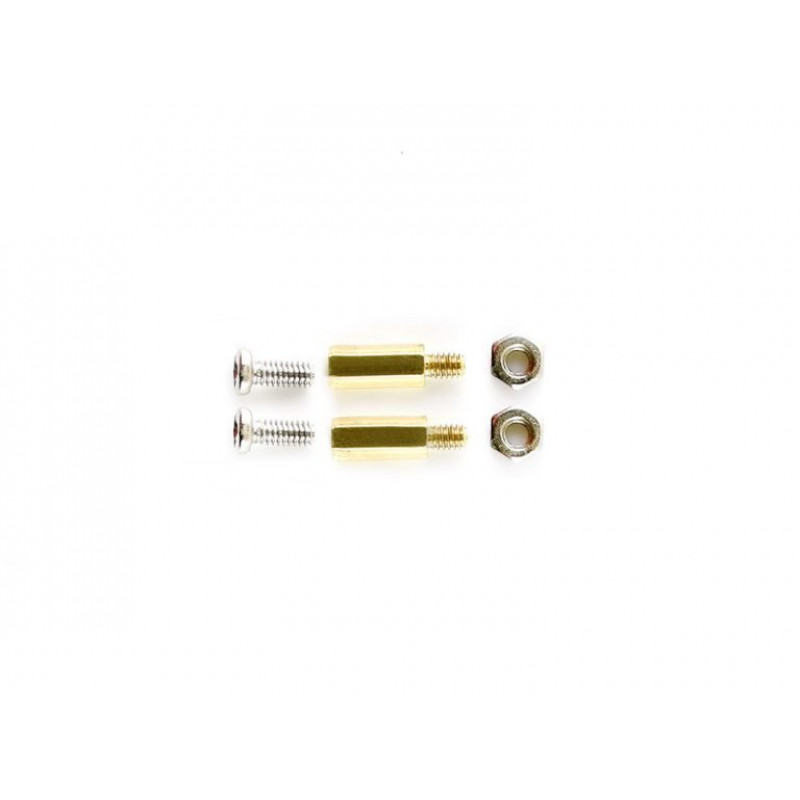

1 x Nut-Bolt and Spacers set

Note: No Raspberry Pi is included in Package



Specifications :-

Operating Voltage (VDC)

3.3 ~ 5

Display Size (inch)

2.13

Outline dimension (mm)

170.2 111.2

Dot Pitch

0.255 0.255

Grey level

2

Display Color

Black and White

Display Resolution

640384

Viewing Angle

>170

Interface

3-wire SPI, 4-wire SPI

Full Refresh Time (s)

6

Refresh Power

38mW(typ.)

Standby Power (mW)

<0.017

Dimensions in mm (LxWxH)

171 x 111 x 2

Weight (gm)

68



Brand/Manufacturer Waveshare
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 7078.82 (Inclusive of all Taxes)
