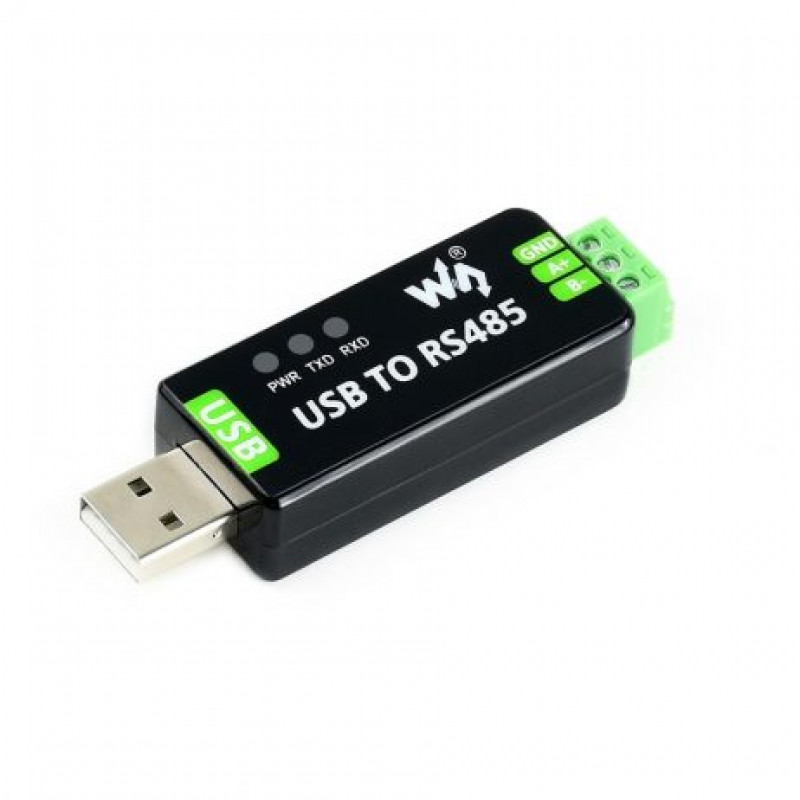

This is an industrial USB to RS485 converter with the original FT232RL and SP485EEN inside. It features embedded protection circuits such as lightning-proof, resettable fuse, ESD protection, and TVS diode, etc. Its pretty small in size.

The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipment and/or applications with high communication requirements.


Features:

  1. USB to RS485 communication.
  2. Adopt original FT232RL and SP485EEN, fast communicating, stable and reliable, better compatibility.
  3. Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.
  4. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.
  5. 3 LEDs for indicating the power and transceiver status.

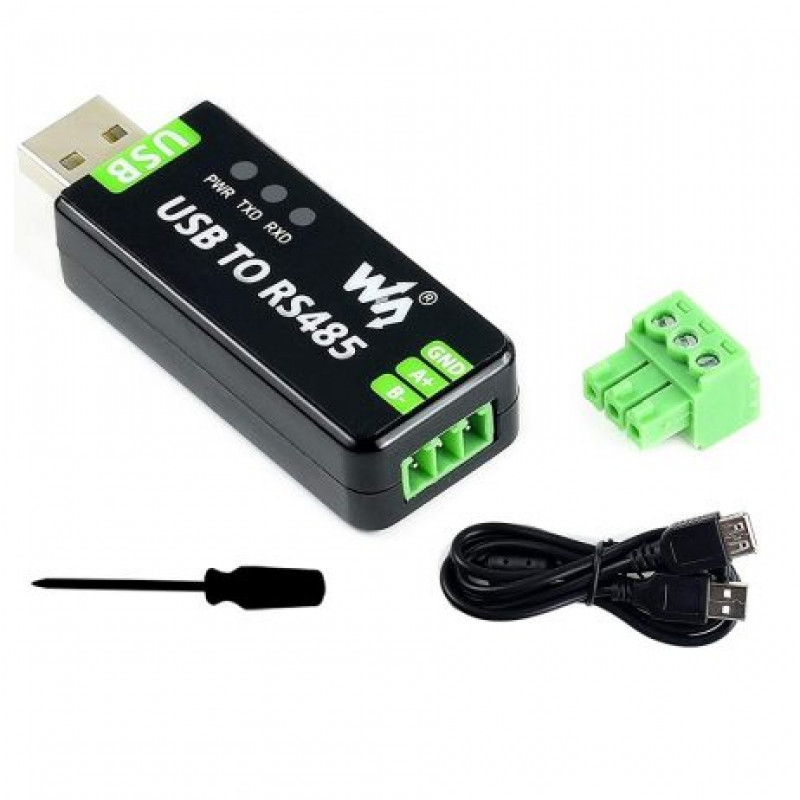

Package Includes:

  1. 1 x USB TO RS485
  2. 1 x USB-A male to female cable
  3. 1 x Screwdriver


Specifications :-

Product type

Industrial Converter

Baudrate

300-921600bps

Host port

USB

Device port:

RS485

USB

Operating voltage: 5V
Connector: USB-A
Protection: 200mA self-recovery fuse, ESD protection
Transmission distance: about 5m

RS485

Connector: screw terminal
Pins: A+, B-, GND
Direction control: hardware automatic control
Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection
Transmission distance: about 1200m (low rate)
Transmission mode: point-to-multipoints

Operating environment

Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH

Operating system

Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

Length (mm)

62

Width (mm)

23.5

Height (mm)

14.5

Weight (gm)

75


Brand/Manufacturer Waveshare
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1108.02 (Inclusive of all Taxes)
