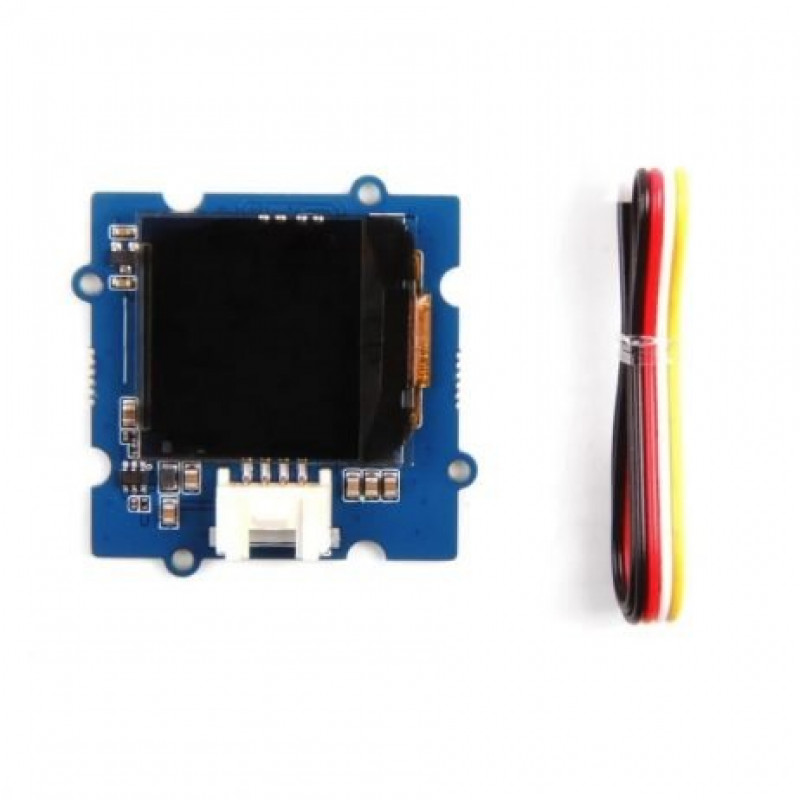

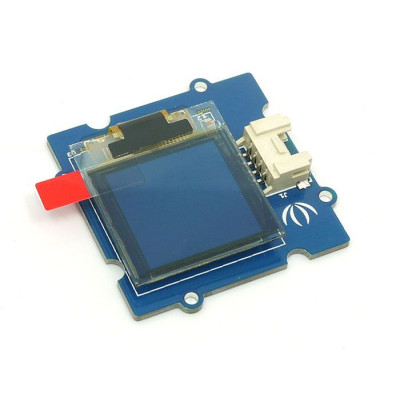

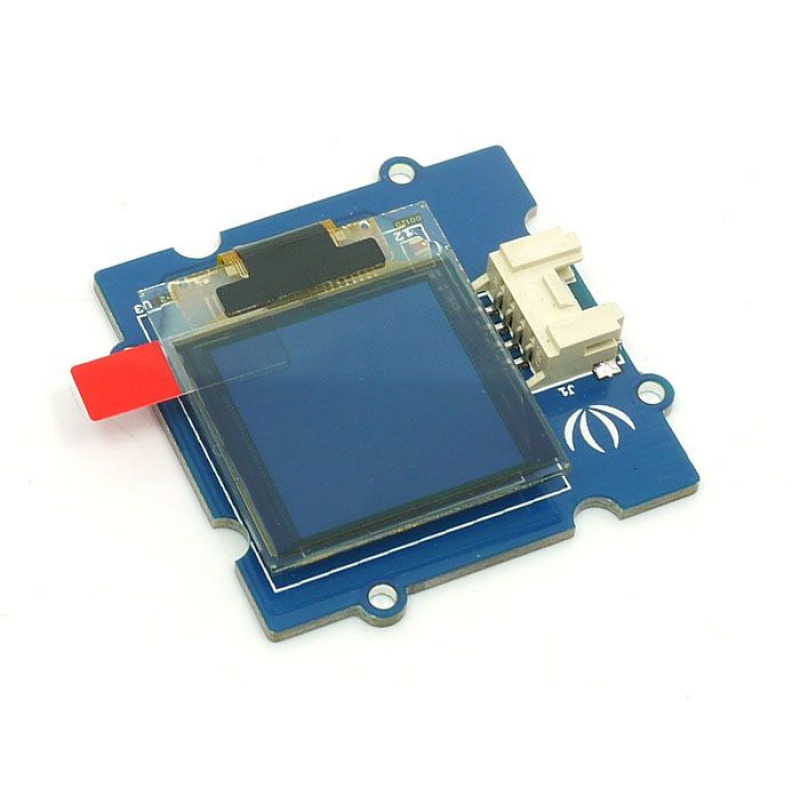

Grove OLED 1.12 is a 16 color grayscale 9696 dot-matrix OLED display module with Grove compatible 4pin I2C interface. Grove OLED 1.12 is constructed with a 96 x 96 dot-matrix OLED module ([ LY120])and SSD1327 driver IC.
The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
Features:
- Communicate Mode: I2C
- Grayscale Display: 16 Gray shades.
- Supports both Normal and Inverse Color Display.
- Supports Continuous Horizontal Scrolling.
- Grove compatible Interface
Project Links:
Package Includes:
1 x Grove OLED 1.12 Display
Specifications :-
| Operating Voltage | 3 V |
| Operating Temperature Range | -40 ?C ~ 70??C |
| Dot Matrix | 9696 |
| OLED Display | LY120-96096 |
| Display Color | 16 Grayscale |
| Driver Chip | SSD1327Z |
| Interface | I2C |
| Length(mm) | 40 |
| Width(mm) | 40 |
| Height(mm) | 10 |
| Mounting hole diameter (mm) | 2 |
| Weight(g) | 16.5 |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1993.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio Grove 1.12 inch OLED Display
- Product Code: EC-5171
- Availability: Out Of Stock
-
Rs.1556.00
- (Excluding 18% GST)
