Grove GSR Sensor stands for galvanic skin response and it is a method of measuring the electrical conductance of the skin. It can be used to reflect the human emotional activity. When we are emotionally stressed or have strong expressions on the face, sympathetic activity increases and promotes the secretion of sweat glands, which increases the skins electrical conductivity.

Grove GSR allows you to spot such strong emotions by simply attaching two electrodes to two fingers on one hand. It is an interesting gear to create emotion related projects like sleep quality monitor. In some galvanic skin response devices such as lie detectors, this scientific principle is also applied.

Features:

1. Detects conductance of the skin
2. Finger Straps for electrodes

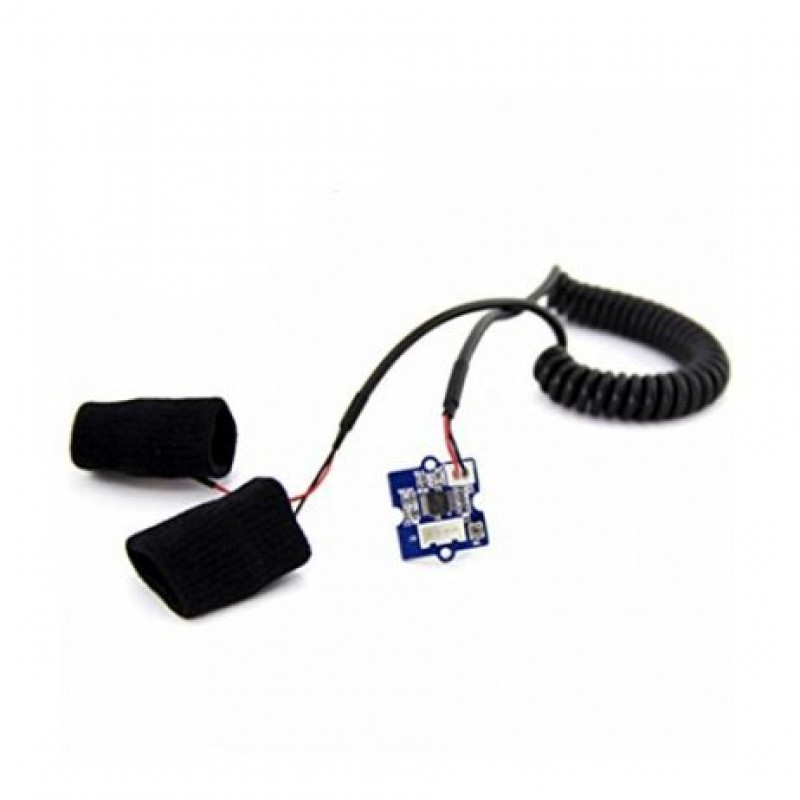

Package Includes:

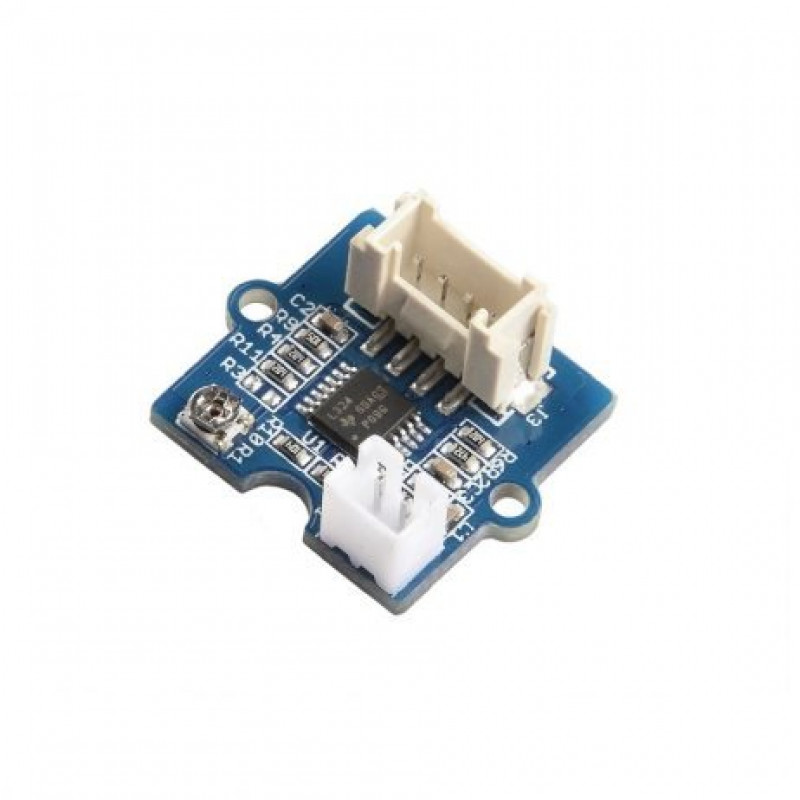

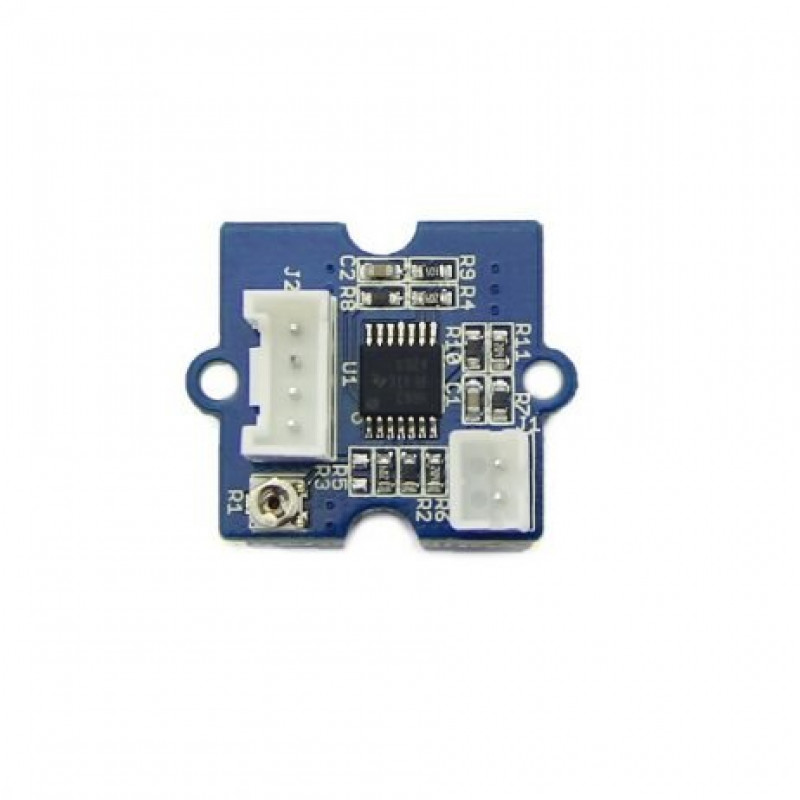

1 x Grove GSR sensor Module

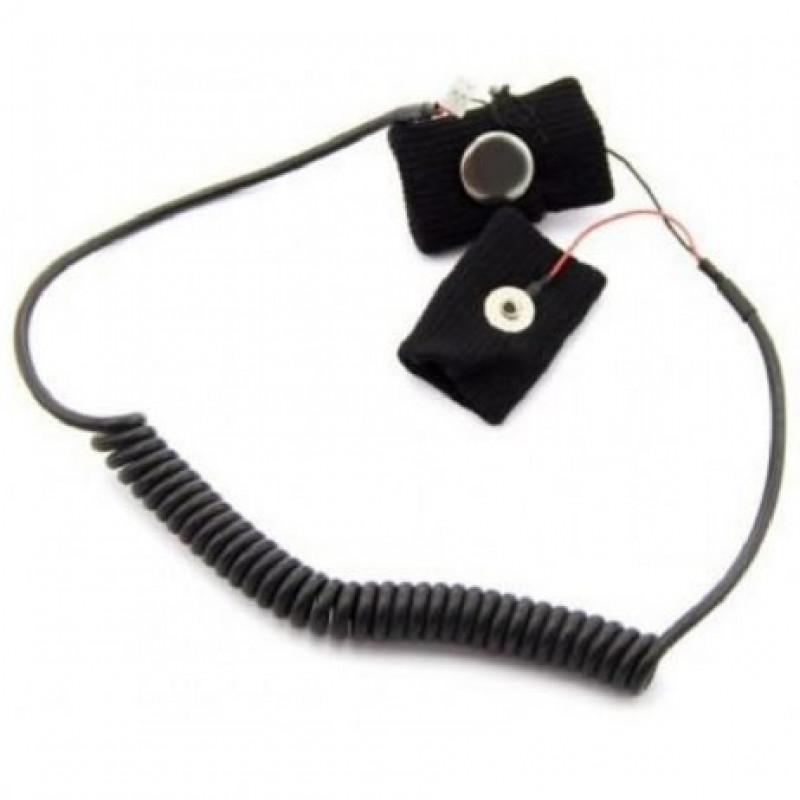

1 x Galvani Skin Response Accessory

1 x Grove cable

Specifications :-

Operating voltage	3.3V/5V
Sensitivity	Adjustable via a potentiometer
Input Signal	Resistance, NOT Conductivity
Output Signal	Voltage, analog reading
Finger contact material	Nickel
