The Grove High Temperature Sensor uses a K-Type themocouple and a thermocouple amplifier that measures ambient temperature using a thermistor for cold-junction compensation. Thermocouples are very sensitive devices. It requires a good amplifier with cold-junction compensation. The detectable range of this Sensor is -50~600C, and the accuracy is (2.0% + 2C).
Features:
- Voltage3.3 ~ 5V
- Max power rating at 25 300mW
- Cold junction compensation (environment temperature measurement)
- Thermocouple temperature measurement accuracy of + / 2.0% (+ 2 )
Package Includes:

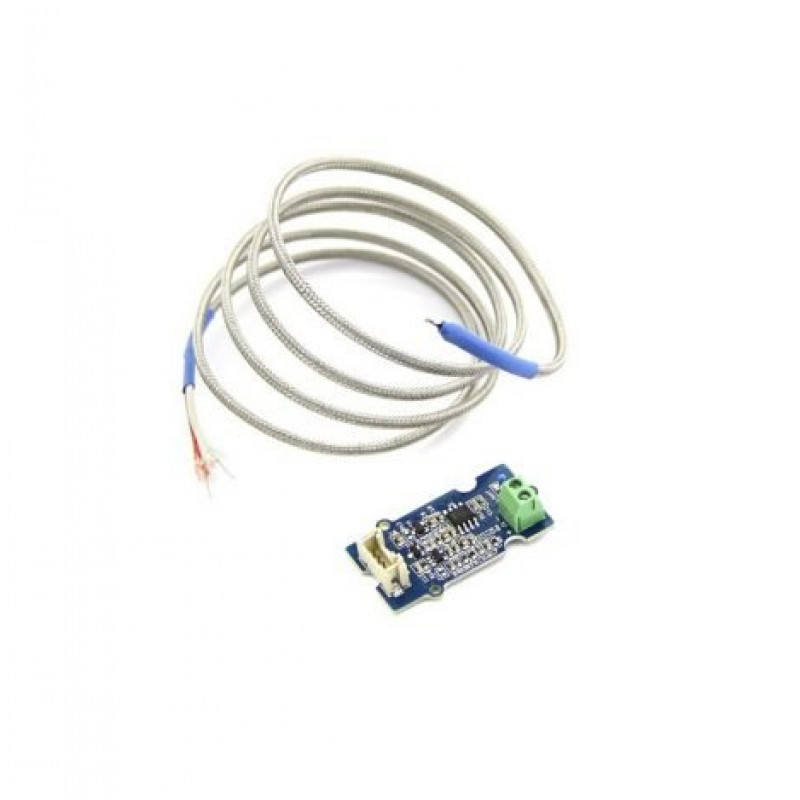

1 x Grove High Temperature Sensor Module

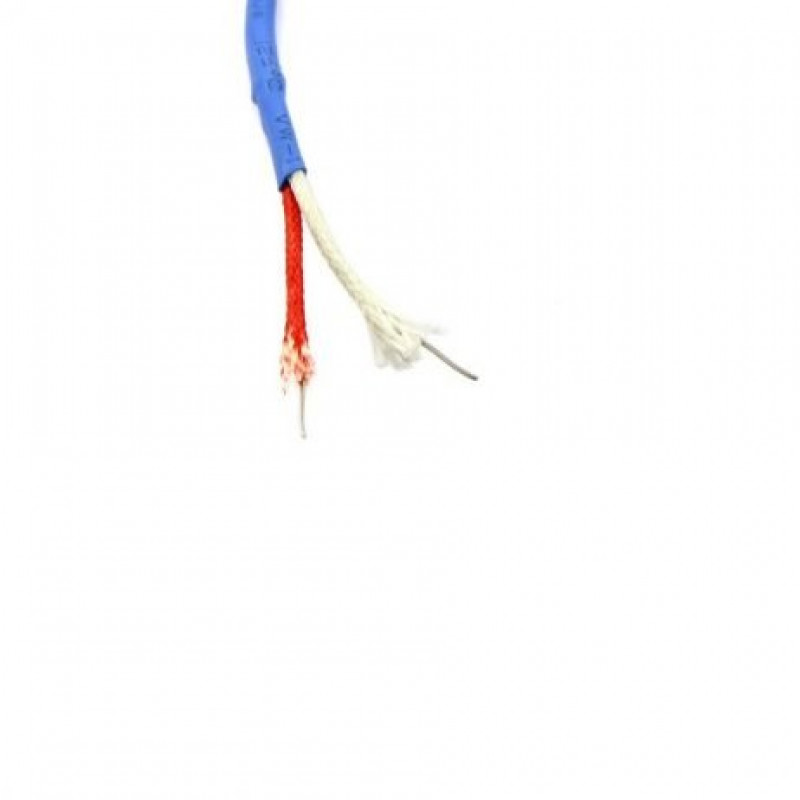

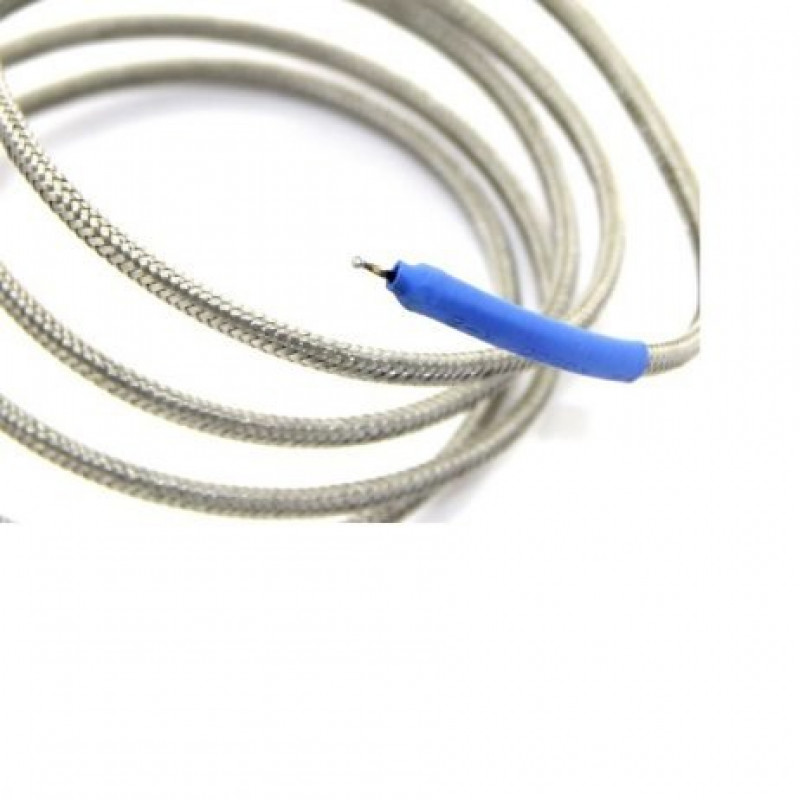

1 x Thermocouple Temperature Sensor
1 x Grove Cable
Specifications :-
Voltage | 3.3 ~ 5V |
Max power rating at 25 | 300mW |
Operating temperature range | -40 ~ +125 |
Temperature measurement range | -50 ~ +600 |
Amplifier output voltage range | 0 ~ 3.3 V |
Thermocouple material | Glass Fiber |
Cold junction compensation | Environment temperature measurement |
Thermocouple temperature sensor cable length | 100cm |
Thermocouple temperature measurement accuracy | 2.0% (+ 2 ) |

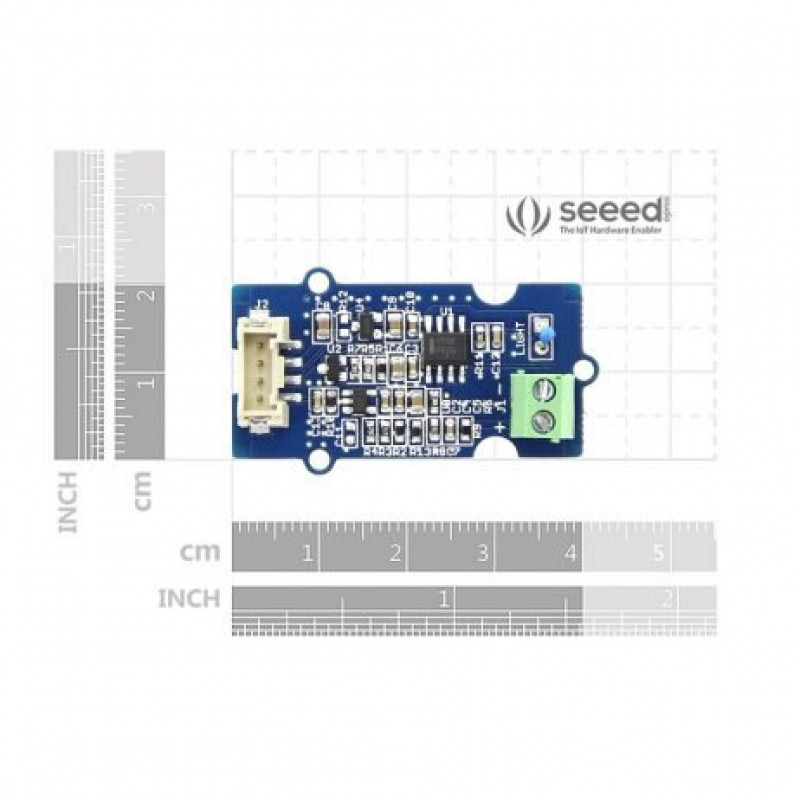

Dimension | 20mm x 40mm |
Brand/Manufacturer | SeeedStudio |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 1433.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

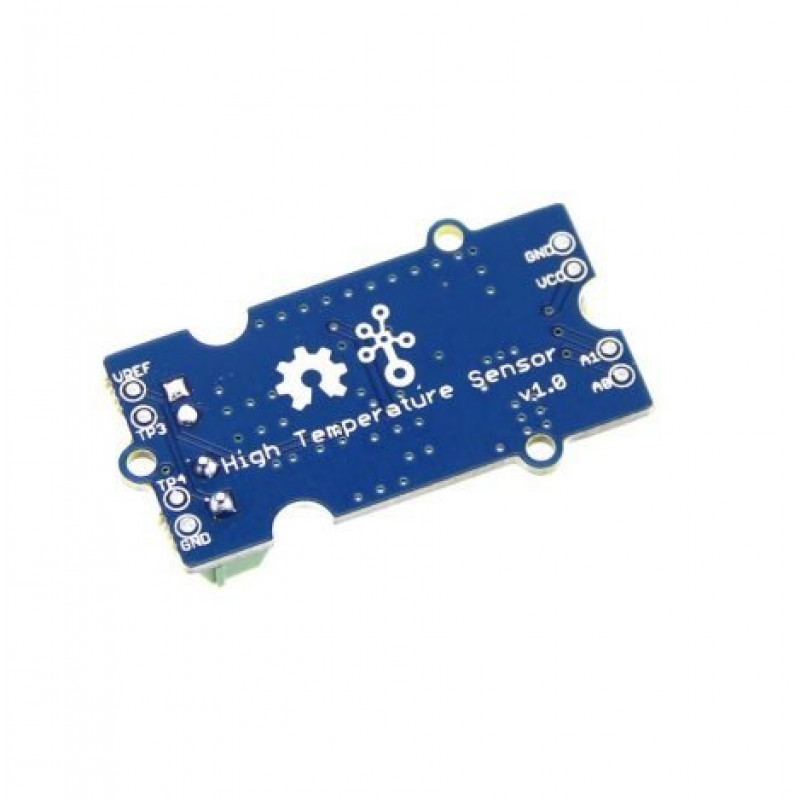

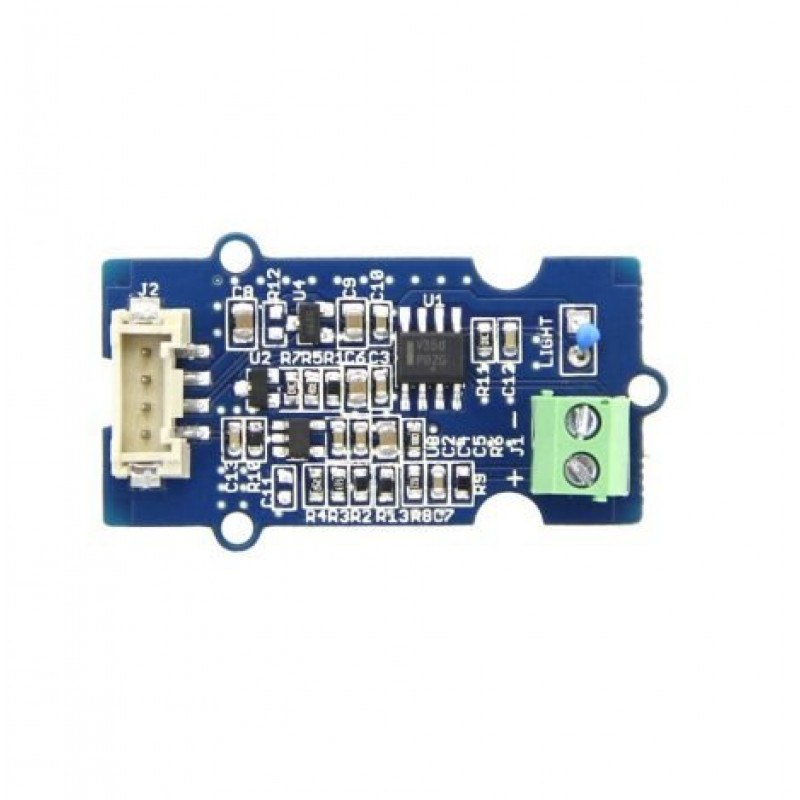

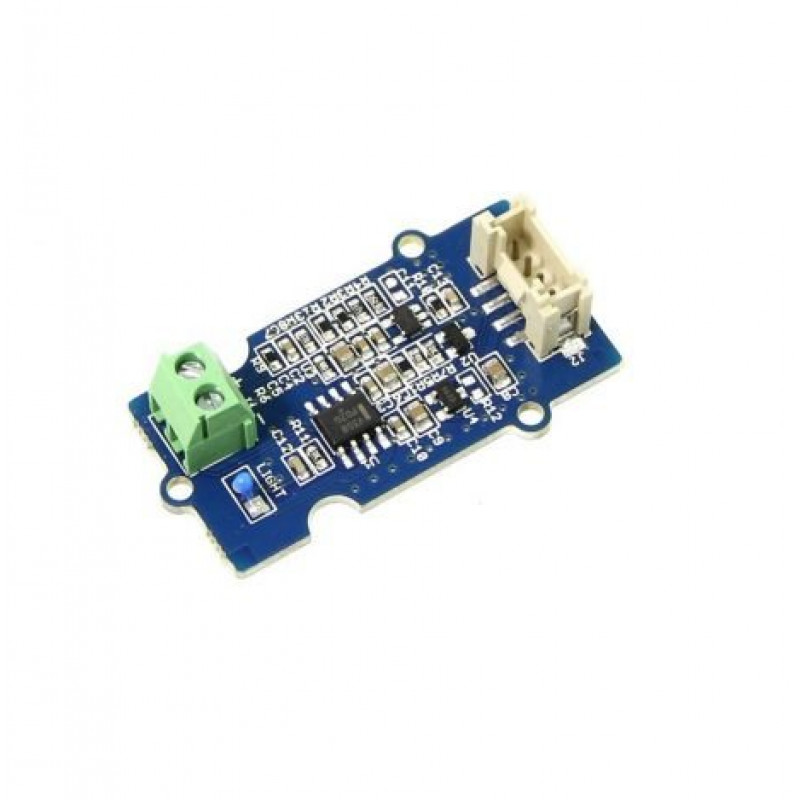

SeeedStudio Grove High Temperature Sensor Module
- Product Code: EC-5194
- Availability: 1
-
Rs.1443.00
- (Excluding 18% GST)
