This is an updated version of the Grove I2C Color Sensor module. The new version is based on the color sensor TCS34725FN with digital output I2C. Based on the 3*4 array of filtered photodiodes and 16-bits analog-to-digital converters, you can gain the color chromaticity of ambient light or the color of objects. Of the 16 photodiodes, 4 have red filters, 4 have green filters, 4 have blue filters and 4 have no filter(clear). With the synchronization input pin, external pulsed light source can provides precise synchronous conversion control.
Features:
- Grove compatible interface
- 16-Bit digital output with I2C
- SYNC Input Synchronizes Integration Cycle to Modulated Light Sources
- Operating temperature range -40C to 85C
- Programmable interrupt function with User-Defined Upper and lower threshold settings
- RoHS Compliant
Package Includes:
1 x Grove I2C Color Sensor v2.0 Module
Specifications :-
| Supply Voltage | 3.3/5V |
| PCB Size | 2.0 cm * 4.0 cm |
| Operating temperature range | -40 to 85 |
| Interface | I2C |
| Dimensions | 42mm x23mm x10mm |
| Weight | G.W 11g |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 761.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

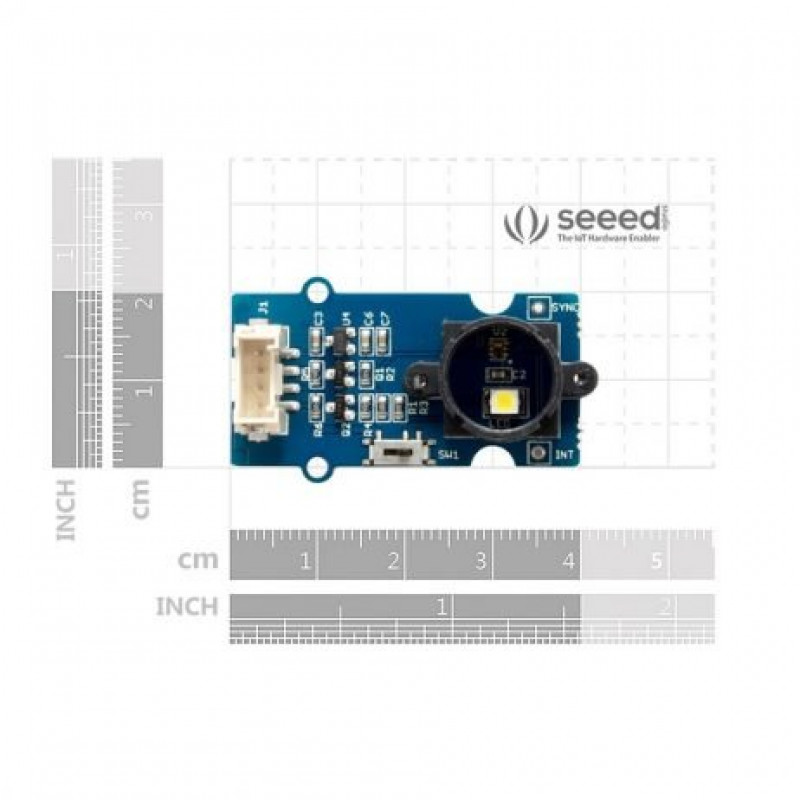

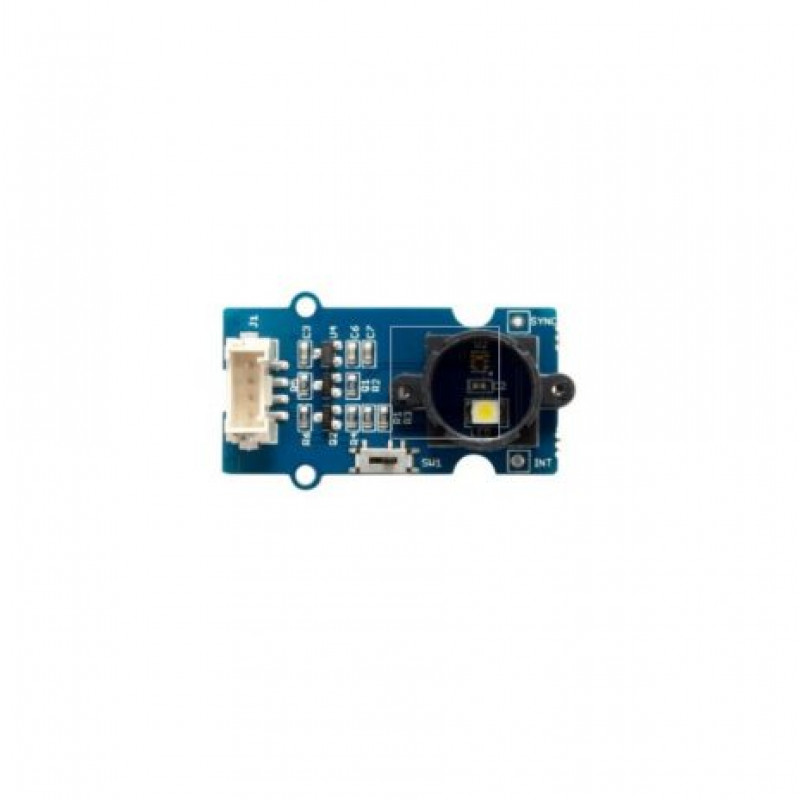

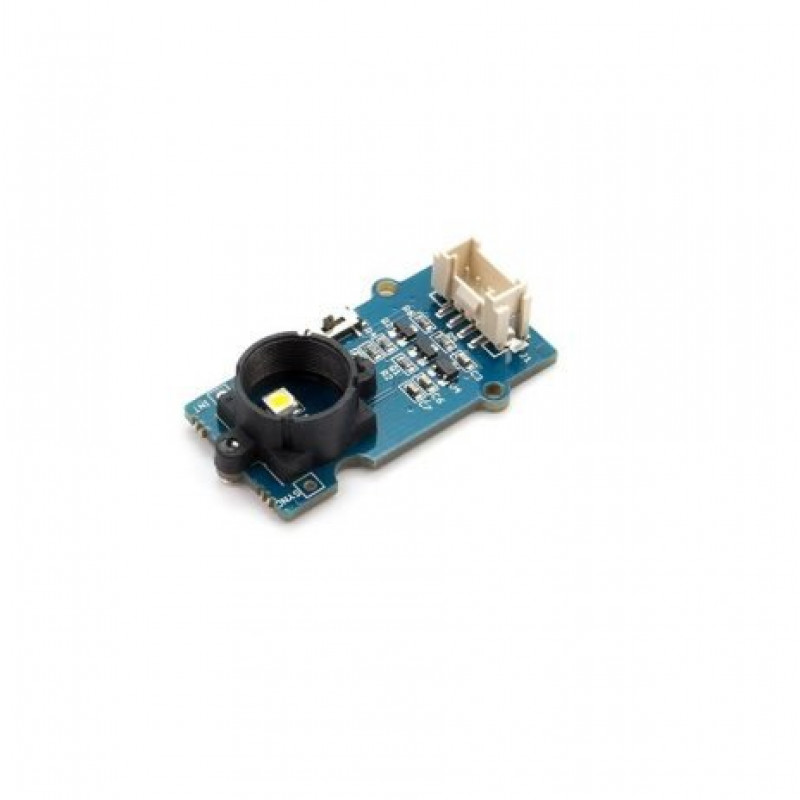

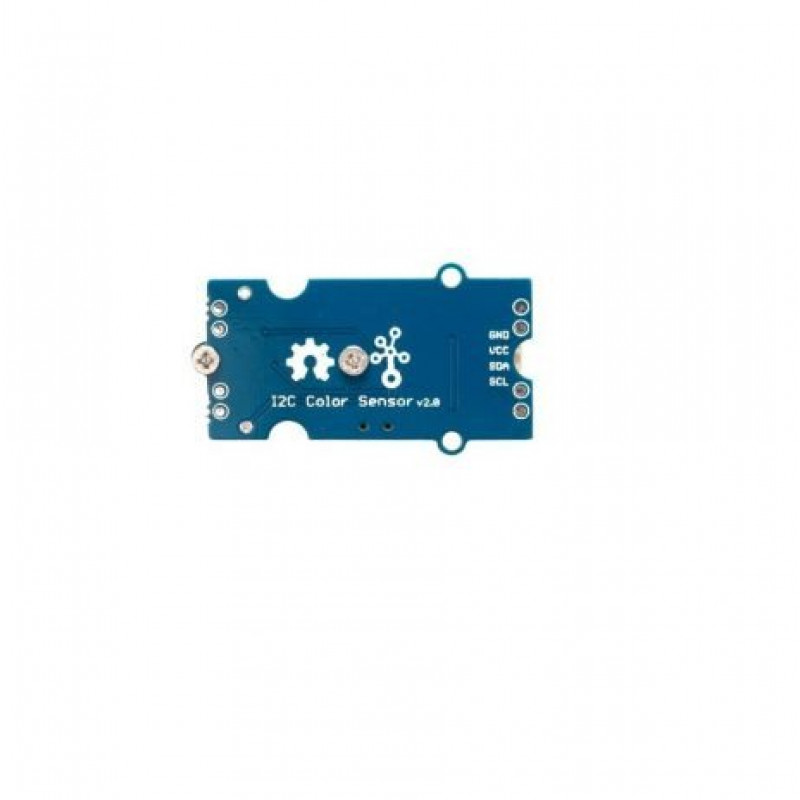

SeeedStudio Grove I2C Color Sensor v2.0 Module
- Product Code: EC-5192
- Availability: 39
-
Rs.877.00
- (Excluding 18% GST)
