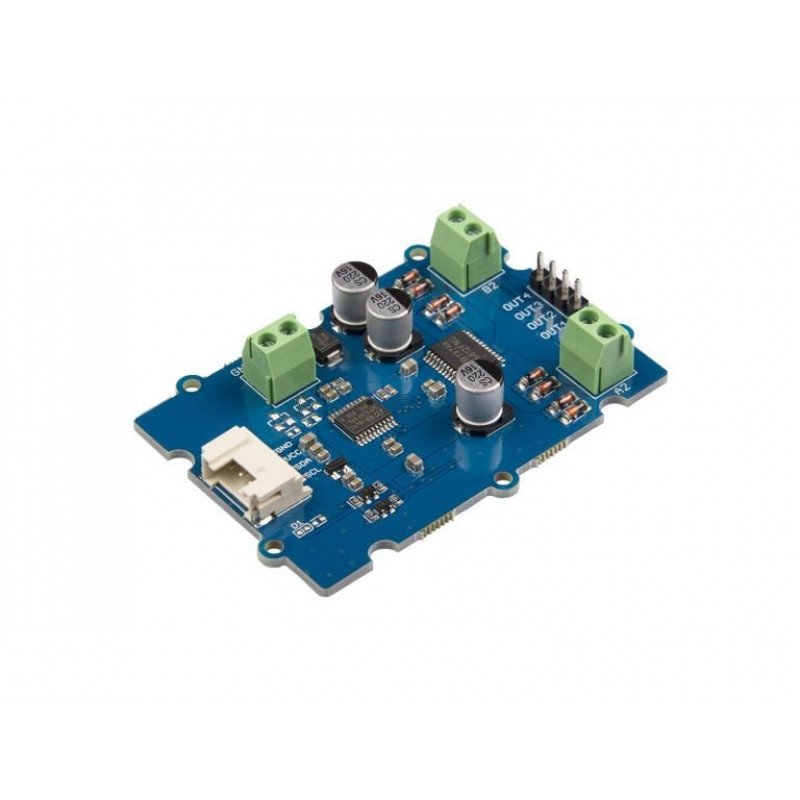

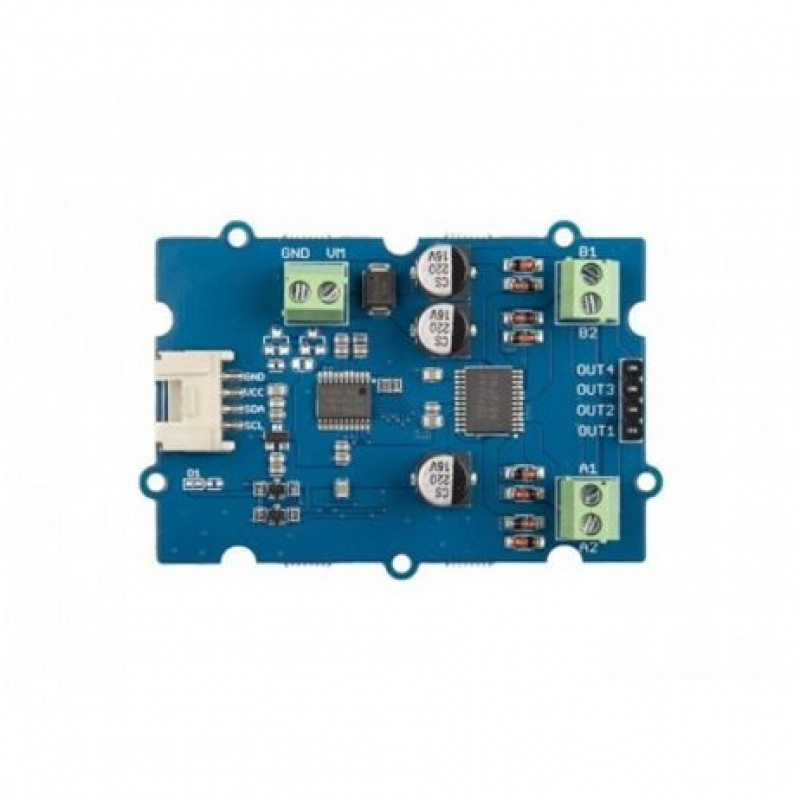

The Grove I2C Motor Driver (TB6612FNG) can drive two DC motors up to 12V/1.2A or drive one stepper motor up to 12V/1.2A. With the on-board MCU, it can work with Arduino easily via the Grove I2C interface.

This diver board is based on TB6612FNG, which is a driver IC for DC motor and a stepper motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short break, and stop mode.


Features:

  1. Onboard MCU
  2. CW/CCW/short brake/stop function modes
  3. Built-in thermal shutdown circuit and a low voltage detecting circuit
  4. Standby (Power save) system

Applications:
  1. DC motor control
  2. Stepper motor control

Useful Links:

Tutorial

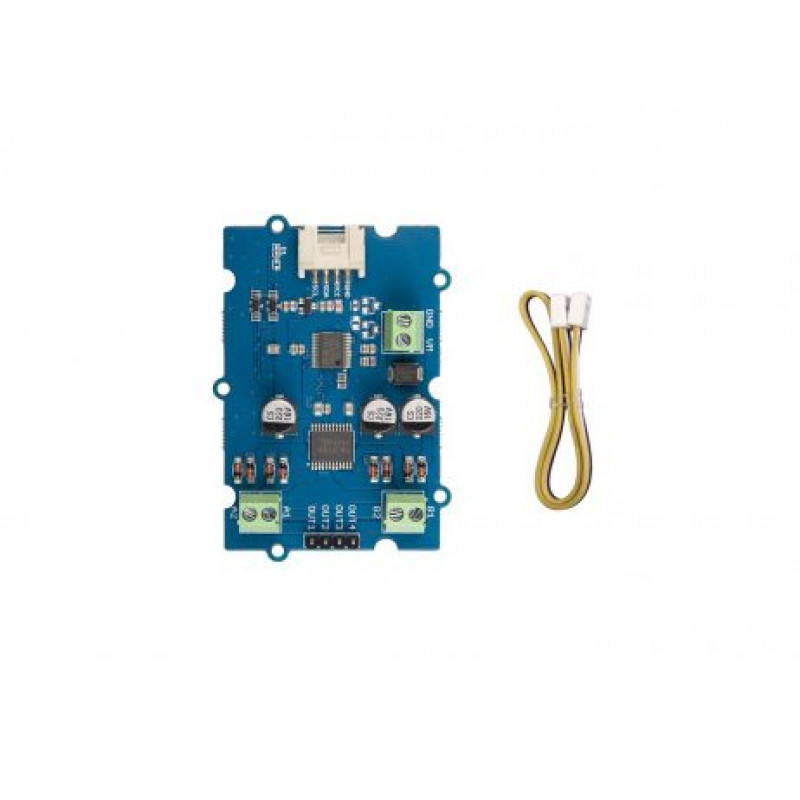

Package Includes:

1 x Grove I2C Motor Driver (TB6612FNG)

1 x Grove Cable


Specifications :-

MCU Operating Voltage

3.3V / 5V

Motor Supply Voltage

2.5 ~ 13.5 (5V Typical, 15V Max.)

Output Current

1.2 A(ave)/3.2 A (peak)

Switching Frequency

100kHz

Logic Interface

I2C

I2C Address

0x14 (default)

Size(mm)

60 X 40 X 12

Weight

13g


Brand/Manufacturer SeeedStudio
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 654.9 (Inclusive of all Taxes)
