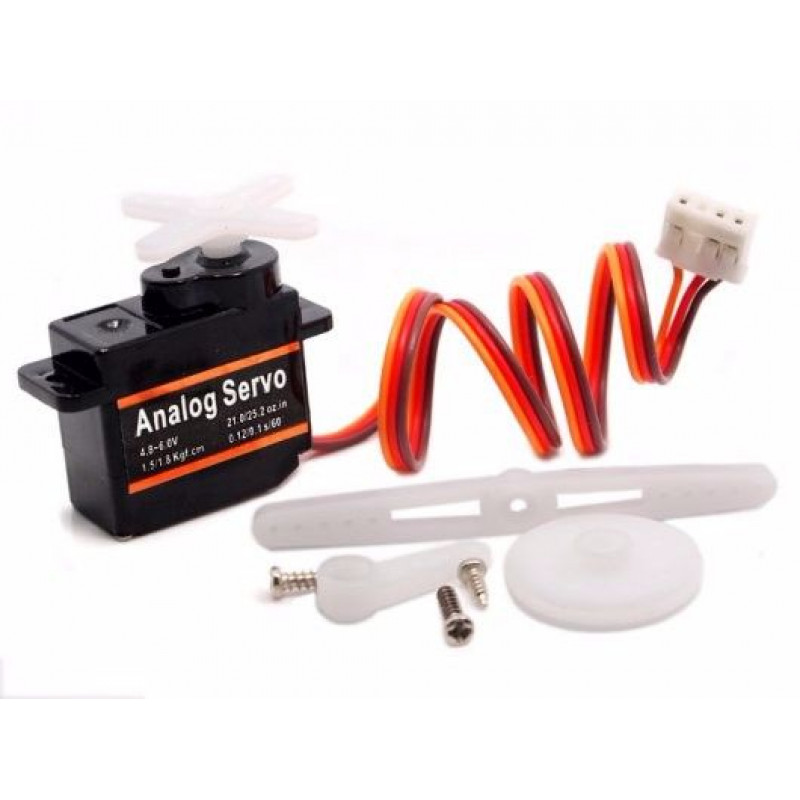

Grove Servo is a DC motor with gearing and feedback system. It is used in the driving mechanism of robots. The module is a bonus product for Grove lovers. We regulated the three-wire servo into a Grove standard connector. You can plug and play it as a typical Grove module now, without jumper wires clutter.
But if you feel more like a proto servo, check out EMAX 9g ES08A High Sensitive Mini Servo. They are the same model, both of good quality and burden-free price.
Features:
- Small module
- Grove Compatible Interface
- Easy to use
Useful Links:
- Tutorial
- Understanding RC Servors
- Arduino Tutorial Servo Library
Project Links:
- Digital/Analog clock Arduino + PaperCraft
- Low-Cost Hobby Servo XY Table
Package Includes:

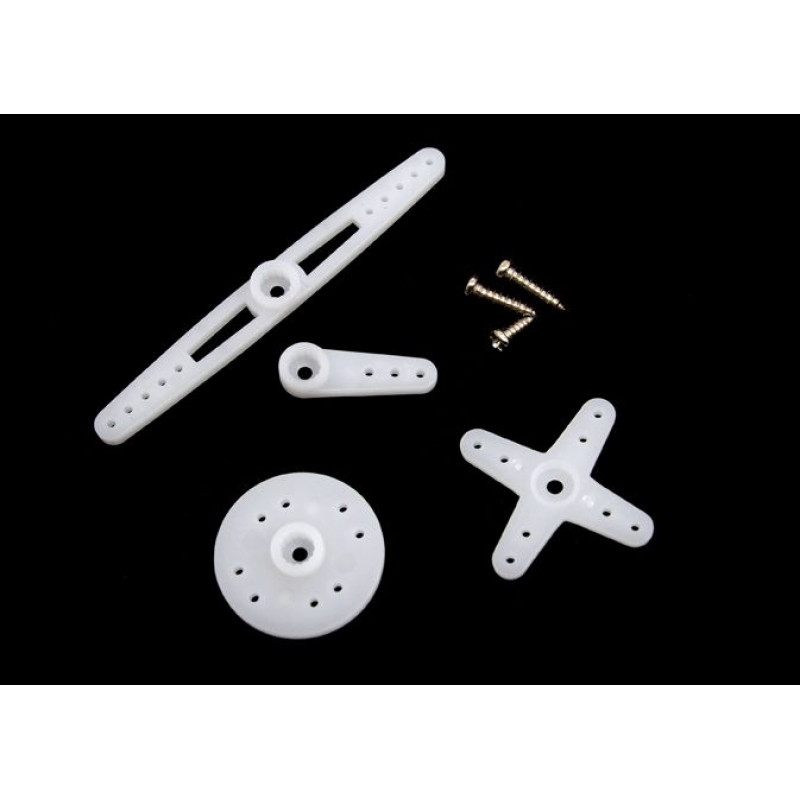

1 x Grove 180-degree Rotation Analog Servo
Specifications :-
| Minimum Working Voltage(V) | 4.8 |
| Maximum Working Voltage(V) | 6 |
| Torque | 1.5/1.8 Kg.cm |
| Speed (s/60?) | 0.12/0.16 s/60? |
| Size(mm) | 32X11.5X24 |
| Mounting hole diameter (mm) | 2 |
| Weight(g) | 8.5 |
| Shipment Weight | 0.013 kg |
| Shipment Dimensions | 9 6 2 cm |
| Brand/Manufacturer | SeeedStudio |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 706.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio Grove Servo
- Product Code: EC-5159
- Availability: Out Of Stock
-
Rs.527.00
- (Excluding 18% GST)
