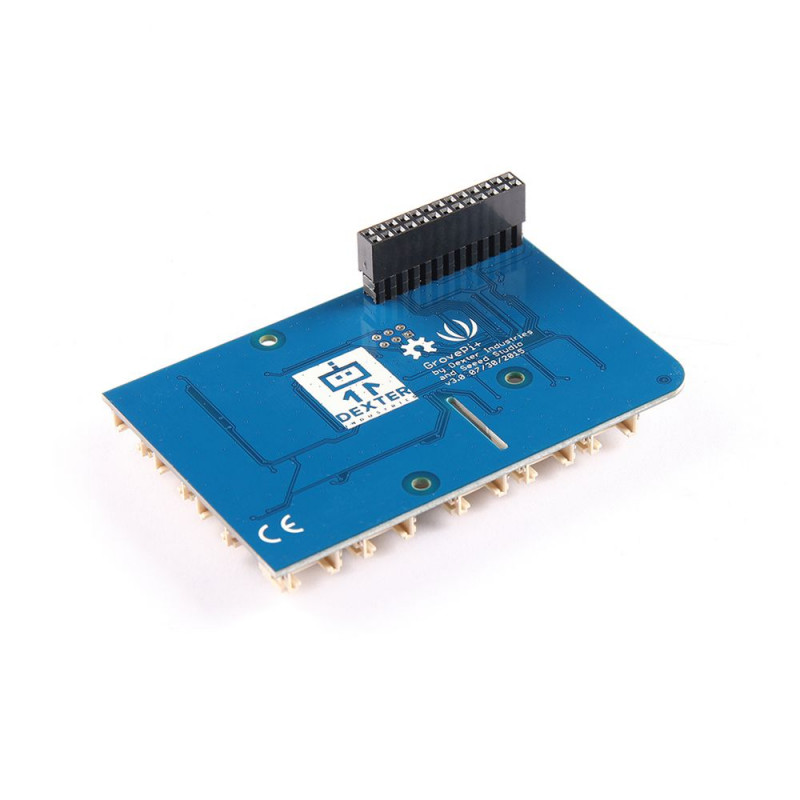

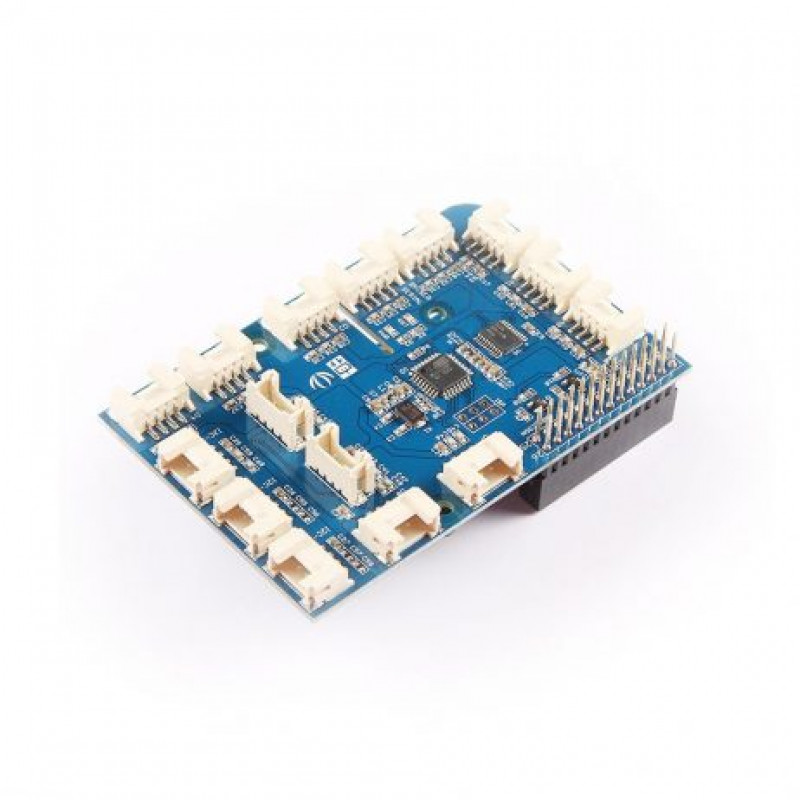

GrovePi+ is an add-on board with 15 Grove 4-pin interfaces that brings Grove sensors to the Raspberry Pi. It is the newest version compatible with Raspberry Pi model B/B+/A+/2/3/4 perfectly.
GrovePi+ is an easy-to-use and modular system for hardware hacking with the Raspberry Pi, no need for soldering or breadboards: plug in your Grove sensors and start programming directly. Grove is easy to use a collection of more than 100 inexpensive plug-and-play modules that sense and control the physical world. By connecting Grove Sensors to Raspberry Pi, it empowers your Pi in the physical world. With hundreds of sensors to choose from Grove families, the possibilities for interaction are endless.
What is New
- Compatible with Raspberry Pi model B/B+/A+/2/3/4
- Faster SPI and higher reliability UART connections
- Easier to assemble camera cables and LCD cables
- Simplified procedures of firmware update
Set-up in 4 simple steps

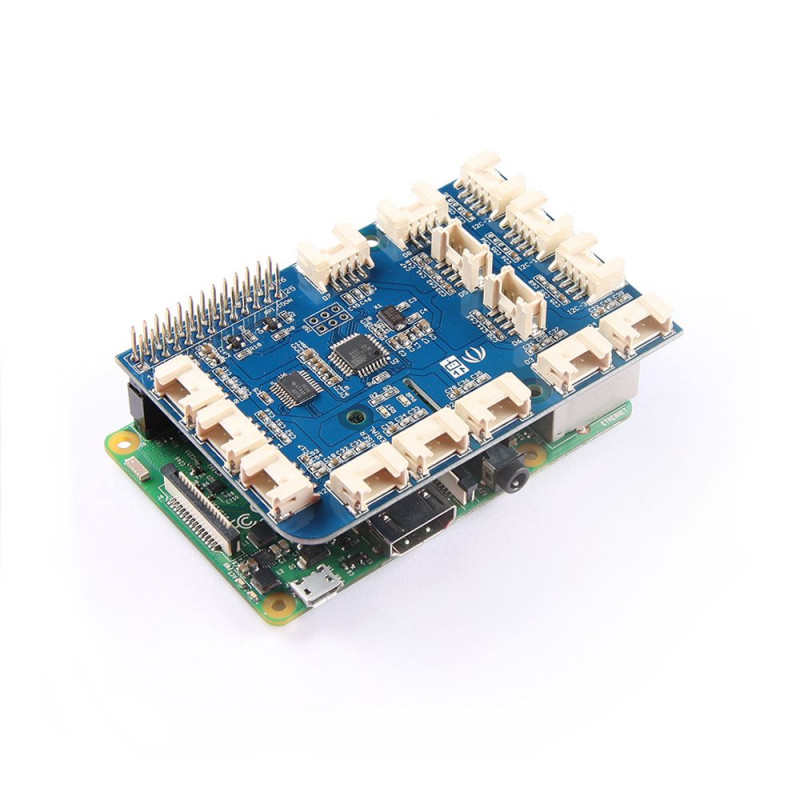

- Step 1 Slip the GrovePi+ board over your Raspberry Pi
- Step 2 Connect the Grove modules to the GrovePi+ board
- Step 3 Upload your program to Raspberry Pi
- Step 4 Begin taking in the world data
Getting started with SeeedStudio GrovePi+
Features:
- 7 digital ports
- 3 analogue Ports
- 3 I2C ports
- 1 Serial port connect to GrovePi
- 1 Serial port connect to Raspberry Pi
- Grove header Vcc output Voltage: 5Vdc
- Battery Exclude

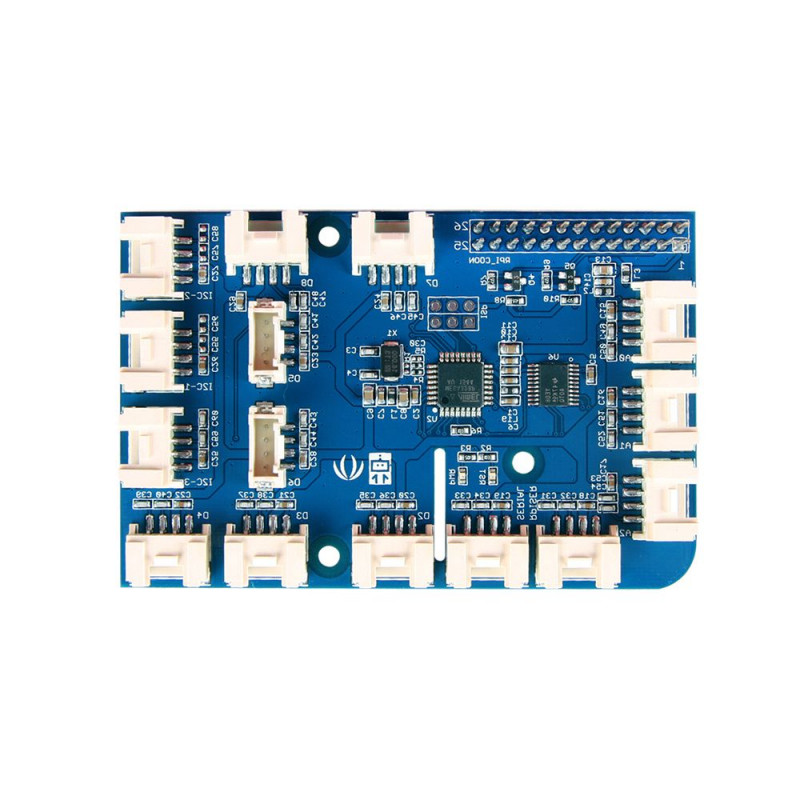

- Grove Ports: 7 Digital(5V) 3 Analog(5V) 3 I2C(5V) 1 SERIAL: Connect to ATMEGA328P D0/1(5V) 1 RPISER: Connect to Raspberry Pi(3.3V) 1 ISP
- Grove-Digital: Connect to ATMEGA328P digital pins and transfer to I2C signal, then through level converter to Raspberry Pi
- Grove-Analog: Connect to ATMEGA328P analogue pins(10bit ADC) and then transfer to I2C signal, then through level converter to Raspberry Pi
- Grove-I2C: Connect through a level converter to Raspberry Pi
- RPISER: Connect to Raspberry Pi directly
- SERIAL: Connect to ATMEGA328P digital pins D0/D1 and transfer to I2C signal, then through level converter to Raspberry Pi
- ISP: Burn firmware to ATMEGA328P

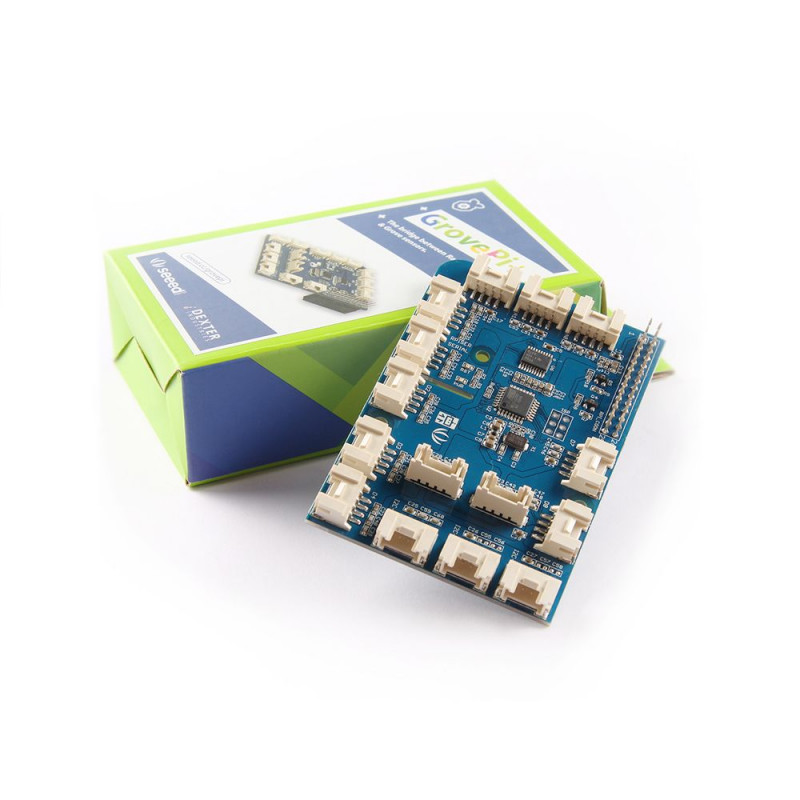

Package Includes :
1 x SeeedStudio GrovePi+
Specifications :-
| MCU | ATMEGA328P |
| Operating Voltage (VDC) | 5 |
| Analog I/O Pins | 3 |
| On Board Ports | 3 analogue Ports |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 4482.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
SeeedStudio GrovePi+
- Product Code: EC-8051
- Availability: Out Of Stock
-
Rs.4221.00
- (Excluding 18% GST)
