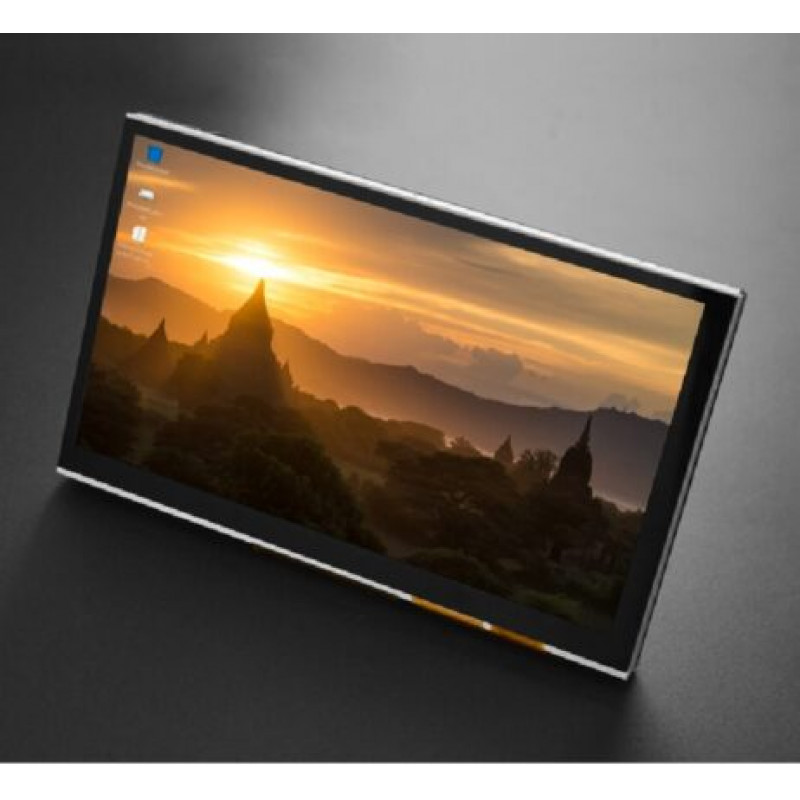

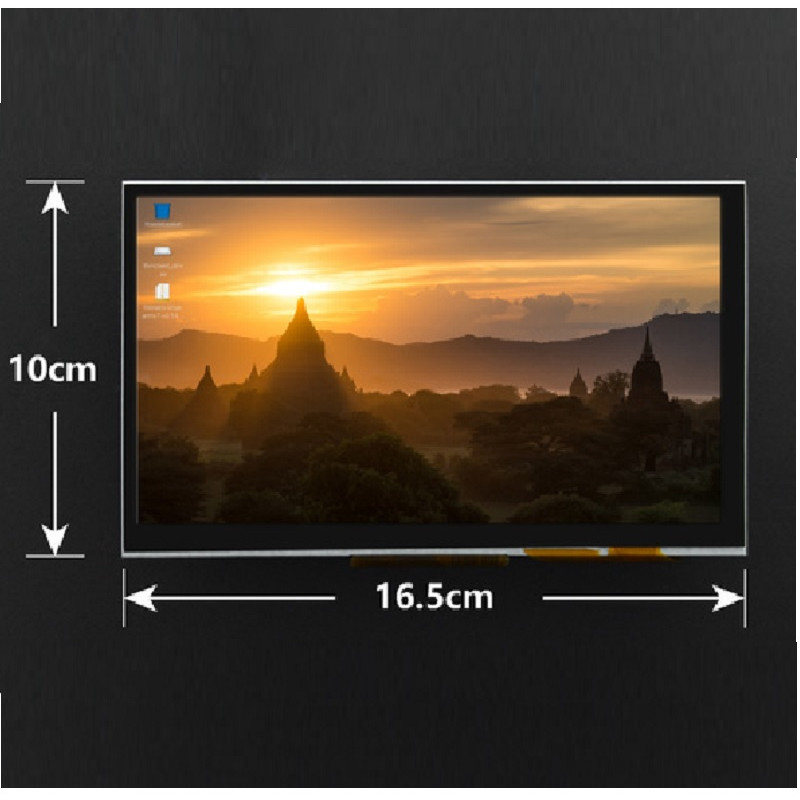

This is a 7 Raspberry Pi LCD touchscreen with 800*480 resolution and 154.8 x 85.92mm display area. The product supports the Raspberry Pi DSI display interface and comes with a capacitive touch panel on its screen and supports 5 touch points. The special holes design on the back of the screen is convenient to directly install theRaspberry Piin the product. There is no need to provide external power for the touchscreen as the Raspberry Pi power supply is adopted. In addition, the screen supports hardware backlight adjustment. The function can be realized by turning the potentiometer on the back of the display.
Note: The screen is not compatible withRaspberry Pi PicoandRaspberry Pi 400 Personal Computer.
Features:
- Capacitive Touchscreen, Support 5 TouchPoints.
- Raspberry DSI Direct Driver
- Compatible with Raspberry Pi 5/4B/3B+/3B

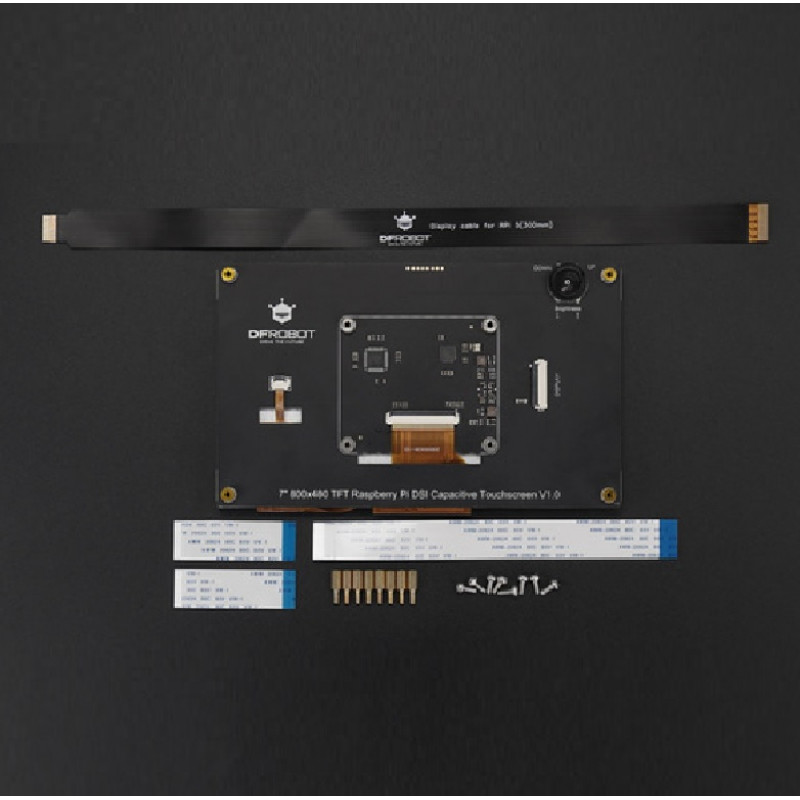

Package Includes:
1 x 7 800480 TFT Raspberry Pi DSI Capacitive Touchscreen (V1.0)
8 x M2.5*8+6 Hexagonal Copper Column Single-Head
8 x M2.5*6 DK4.9 Machine Screws
1 x FPC Reverse Direction Cable 150mm
1 x FPC Reverse Direction Cable 50mm
1 x Raspberry Pi 5 DSI ribbon cable (300mm)
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot 7 800480 TFT DSI Capacitive Touchscreen (Compatible with Raspberry Pi 4B/3B+/3B)
- Product Code: EC-26612
- Availability: Out Of Stock
-
Rs.5297.00
- (Excluding 18% GST)
