This is a unique 8.8-inch capacitive touch bar-type display with a resolution of 4801920 and a distinctive aspect ratio of 4:1. It supports the Raspberry Pi DSI interface, allowing for the quick development of specializedRaspberry Piapplications.
In information display projects, the display screen is the most direct medium of experience. It needs to present information in an intuitive and neatly organized manner while accommodating richer content. Compared to conventional aspect ratio displays, bar-type displays, with their unique aspect ratio, allow for more intuitive and focused presentation of information. They are widely used in scenarios such as station advertising, supermarket advertising, elevator advertising, smart homes, and in-vehicle displays.
In terms of product quality and specifications, this bar-type display adopts IPS panel technology, optical bonding, and offers a brightness of 600cd/m, combined with a high-definition resolution of 4801920. This ensures wide viewing angles, fast response times, fine and bright images, and high color reproduction. Additionally, the support for five-point capacitive touch makes project interaction more concise and intuitive.
Applications:
- Music spectrum analyzer
- Advanced calculator
- Mini weather station
- Simulator gaming console
- IoT terminal data panel
- Electronic photo album
- Touchscreen digital control panel
- Car modification dashboard
- Measurement instrument panel
- Robot display panel
Features:
- 4801920 high-definition resolution
- 1:4 bar-type display aspect ratio
- 600cd/m high brightness
- IPS panel
- Full bonding process
- 5-point capacitive touch
- Raspberry Pi DSI driver
- Compatible withRaspberry Pi 4B/3B+/3B
- Power Interface: USB-C
- Static Working Current: Approximately 700mA
- Display Interface: Raspberry Pi DSI
- 2P Spring Plunger: Power Interface, 5V 1.5A
- Raspberry Pi Mounting Hole Size: 58mm x 49mm

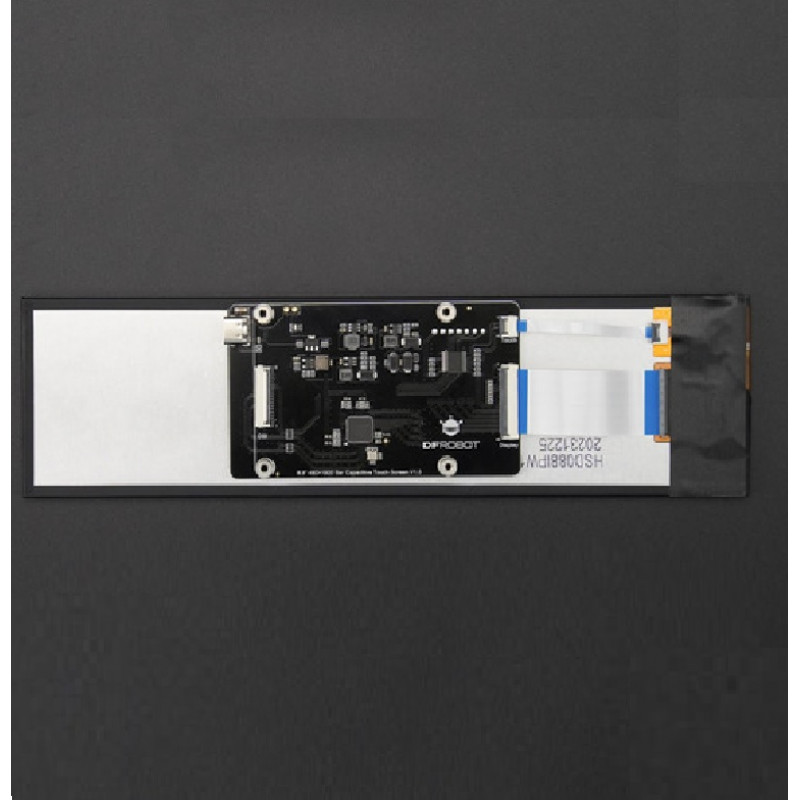

- Driver Board PCB Size: 93mm51mm1.6mm
- Brightness: 600cd/m
- Bonding Method: Optical bonding
- Touch Points: 5-point capacitive

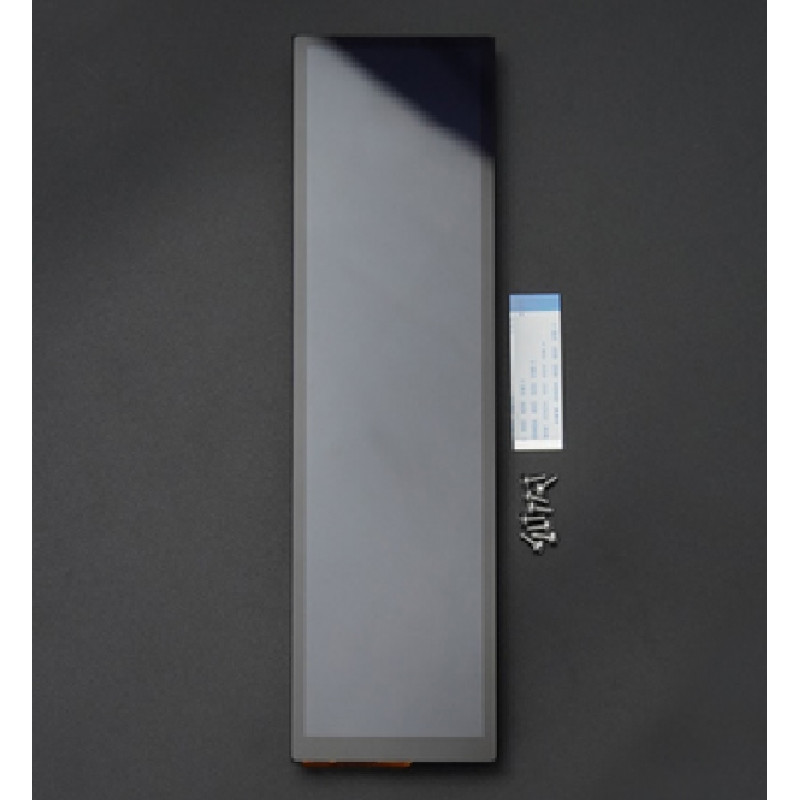

Package Includes:
1 x 8.8 4801920 DSI Bar Touch display for Raspberry Pi
1 x FPC DSI Cable 50mm
8 x M2.5*6 Mounting Screws
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

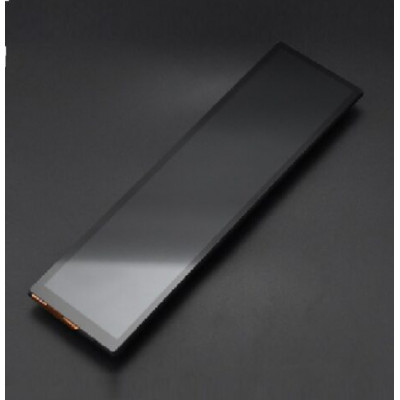

DFRobot 8.8 480 x1920 IPS Bar Touch Display (Compatible with Raspberry Pi 4B / 3B+ / 3B)
- Product Code: EC-26262
- Availability: Out Of Stock
-
Rs.8799.00
- (Excluding 18% GST)
