RS485 is a common serial communication standard with features such as good noise rejection, long transmission distance, and multi-drop capability. It transmits data using a differential transmission method, which allows it to suppress common-mode interference. RS485 requires a pair of twisted-pair cables and two terminal resistors to eliminate signal reflection during long-distance communication.
This dual-channel RS485 expansion HAT designed for the Raspberry Pi adopts an isolated transceiver to achieve isolation for RS485, which increases the reliability and anti-interference of data transmission in each channel. And it features embedded protection circuits such as a lightning and surge protector, a TVS diode, and power supply isolation to protect the Raspberry Pi development board effectively.
Besides, the order includes a screw accessory kit that allows users to tightly fix this board onto a Raspberry Pi controller.
Applications:
- Agricultural Internet of Things
- Warehouse Internet of Things
- Indoor and Outdoor Environmental Monitoring
- Lighting Control
- Security Access Control System
Features:
- Dual Channel RS485
- Electrical & signal isolation
- Lightning & surge protection
- Transient voltage suppressor
- RX/TX data transmitting/receiving indicator
Package Includes:
1 x RS485 Expansion HAT for Raspberry Pi
4 x Copper Column & Screw
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

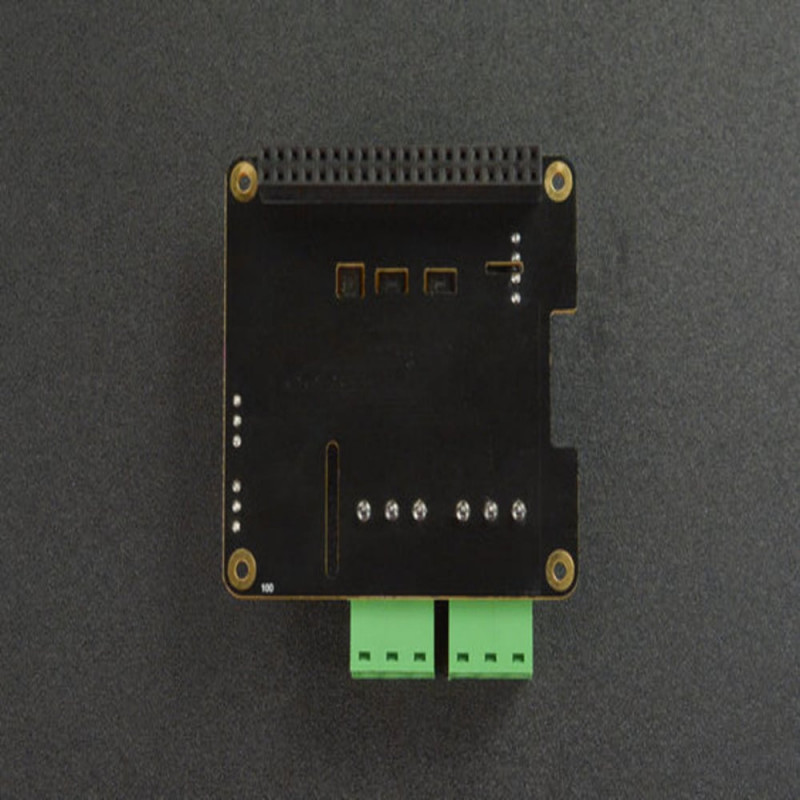

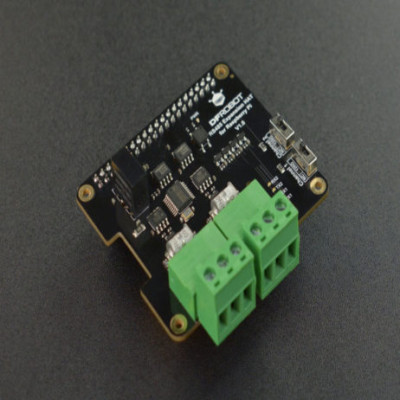

DFRobot Dual-channel RS485 Expansion Hat for Raspberry Pi 4B
- Product Code: EC-21083
- Availability: Out Of Stock
-
Rs.2209.00
- (Excluding 18% GST)
