This 2.0 LCD display adopts ST7789V driver chip and has 320*240 color pixels (RGB565), performing excellently in the angle of view (80/80/80/80). It supports SPI(4-wire) communication mode and GDI port (work with main-controllers with GDI), plug, and play. The module can be powered by 3.3V~5V, compatible with multiple main-controllers like Arduino UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, and so on. Use the GDI interface to work with M0, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures.
The module has the advantages of high resolution, wide viewing angle, and simple wiring, and can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc.
Applications:
- Waveform monitor display
- Electronic gift box
- Electronic weather decorations
- Alarm clock display
NOTE:MicroSD Card is not included, clickhereto buy one.
Features:
- Wide-angle of view
- High resolution
- GDI interface: plug and play

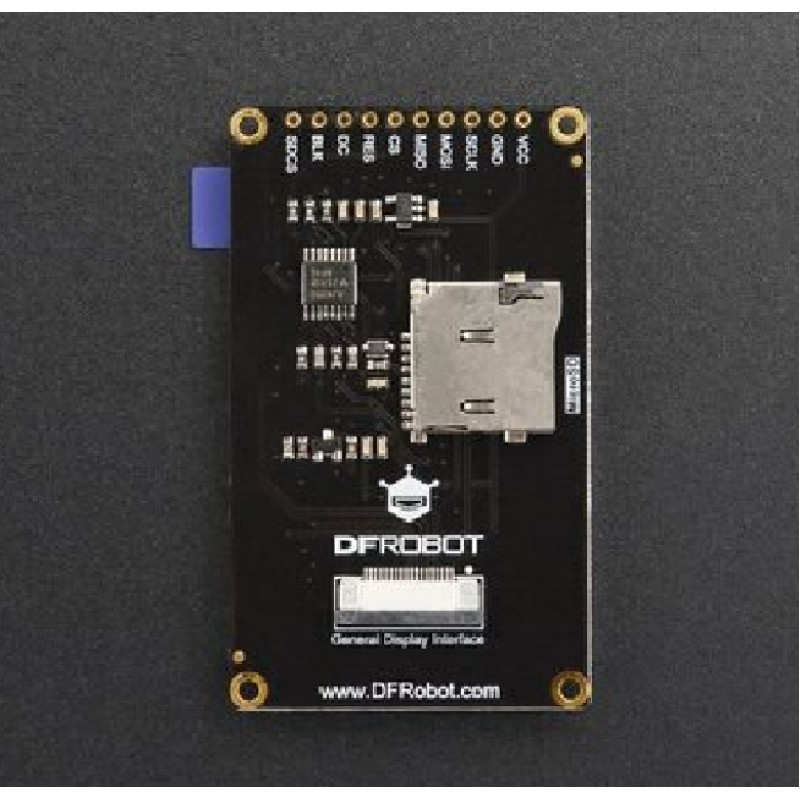

- Onboard MicroSD card slot

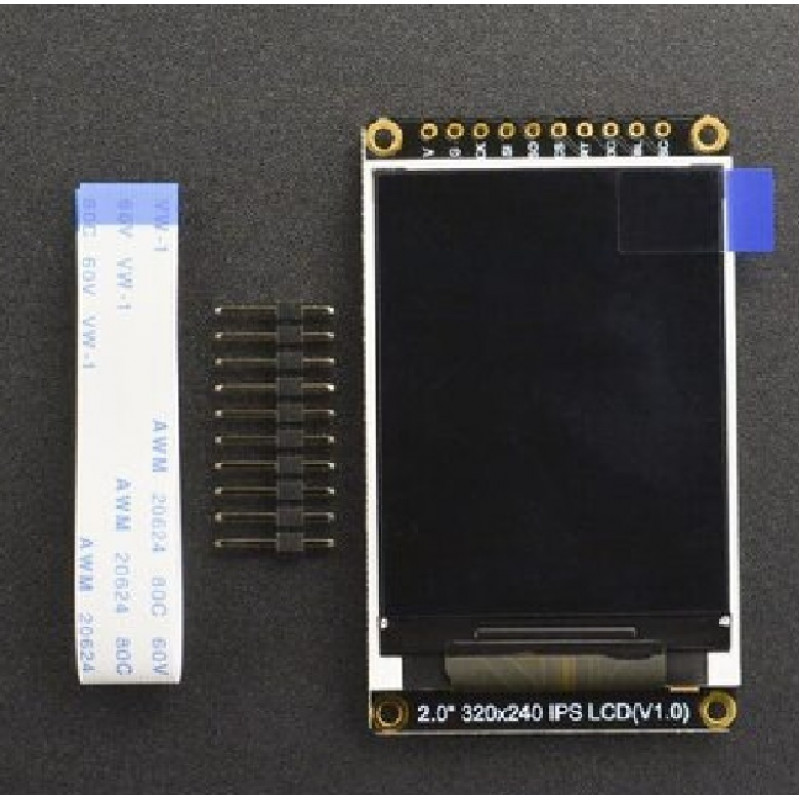

Package Includes:
1 x 2.0 320240 IPS TFT LCD Display with MicroSD Card Breakout
1 x 2.54-10P Single Row Black Pin
1 x FPC0.5-18PIN Flex Flat Cable Reverse Direction 10cm
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot Fermion: 2.0 320240 IPS TFT LCD Display with MicroSD Card (Breakout)
- Product Code: EC-26538
- Availability: 2
-
Rs.1620.00
- (Excluding 18% GST)
