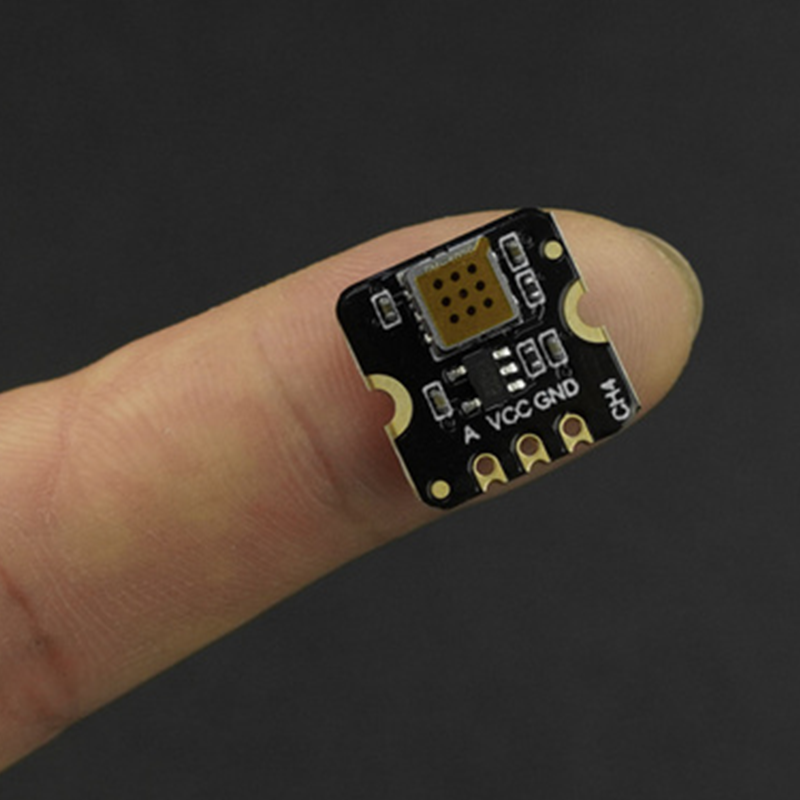

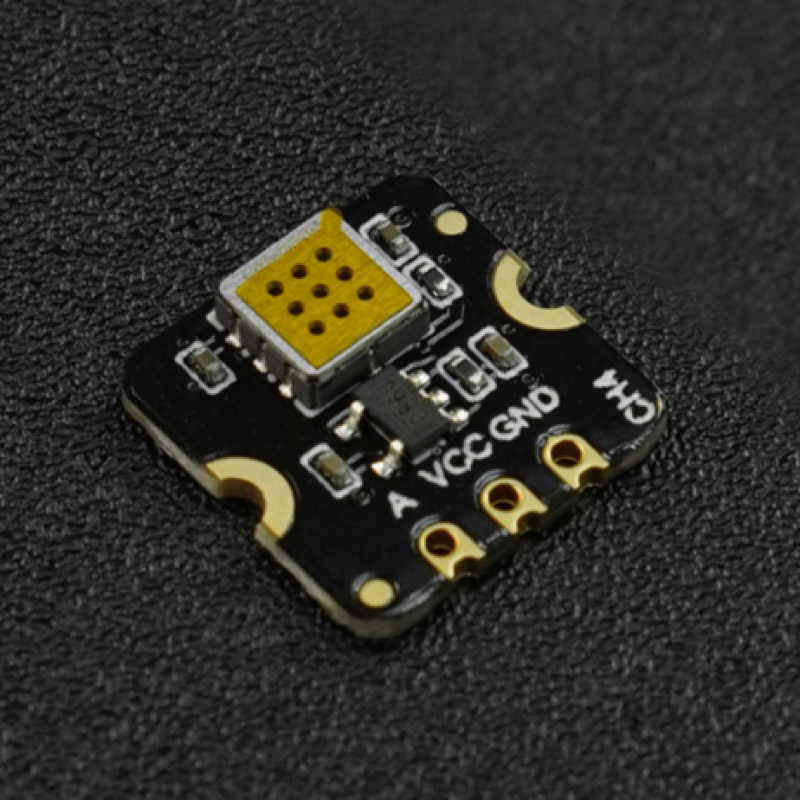

This is DFRobot Fermion MEMS Methane CH4 Gas Detection Sensor (Breakout, 1-10000ppm). Fermion: MEMS Methane CH4 Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure methane gas concentration and is suitable for combustible gas leakage monitoring devices, gas leak detectors, fire/safety detection systems and other applications.
The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.
Applications:
- Environmental monitoring:detect the presence of methane emissions or leaks from natural or anthropogenic sources.
- Indoor air quality:measure the concentration of methane in the indoor air and control the ventilation or alarm systems accordingly.
- Industrial safety:detect any leaks or spills of methane and warn the workers or the managers to take preventive measures.
- Fire detection:identify any abnormal increase of methane in the air and trigger the fire alarm or sprinkler system.
- Health applications:measure the amount of methane in the breath, methane can be produced by some bacteria in the human gut or some metabolic disorders.
Note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical CO Sensor (0-1000 ppm, I2C & UART).
Precautions for use:
- Kindly remove the protective film before usage.
- To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
- Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
- Prevent contamination from alkalis, alkali metal salts, and halogens.
- Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
- Avoid contact with water, condensation, and freezing.
- Minimize excessive vibration, impact, and dropping.
- Please refrain from employing this module in systems that involve personal safety concerns.
- For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
For more info., click below.
- Product wiki
- Schematics & Dimension
- Characteristic Parameter
- Project:Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform
Features:
- Easy to use.

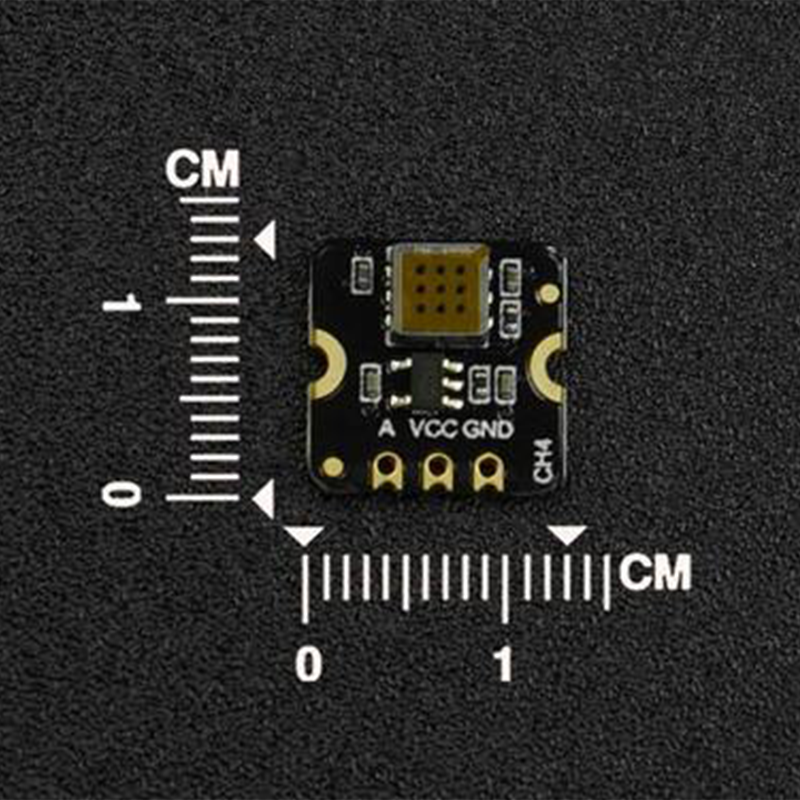

- Compact size, measuring only 13*13*2.5mm
- Low power consumption, operating current 20mA
- High sensitivity and rapid response recovery
- Advanced MEMS technology
- Gas detected: CH4, C3H8, etc.
- Sensitivity: R0(in air)/Rs(in 5000ppm CH4) 2
- Lifespan: 5 years (in air)
- Good quality product

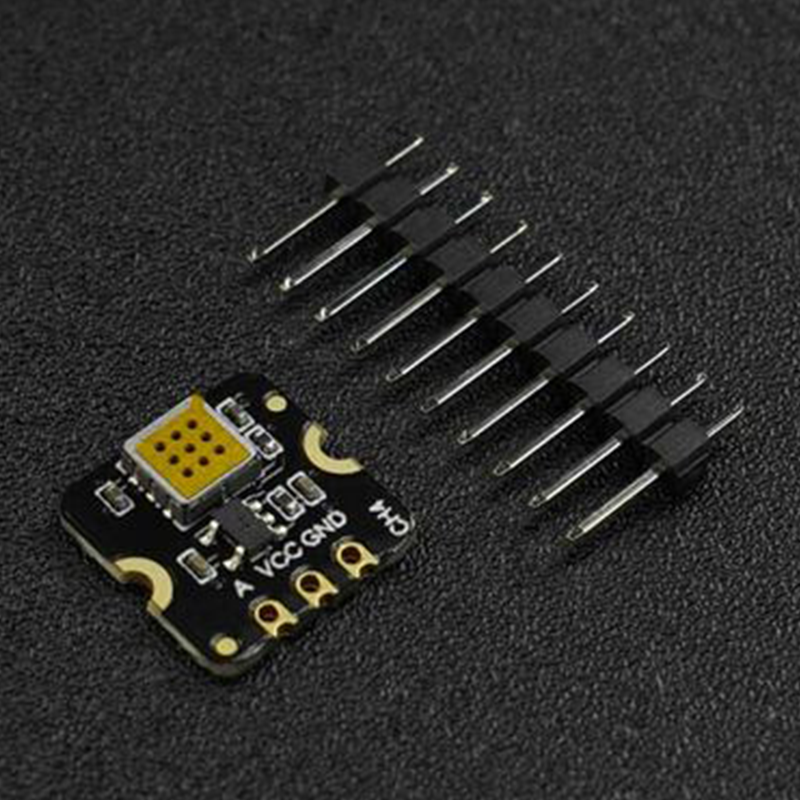

Package Includes:
1 x DFRobot Fermion MEMS Methane CH4 Gas Detection Sensor (Breakout, 1-10000ppm)
1 x 2.54mm pitch header pin
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot Fermion MEMS Methane CH4 Gas Detection Sensor (Breakout, 1-10000ppm)
- Product Code: EC-19663
- Availability: 2
-
Rs.395.00
- (Excluding 18% GST)
