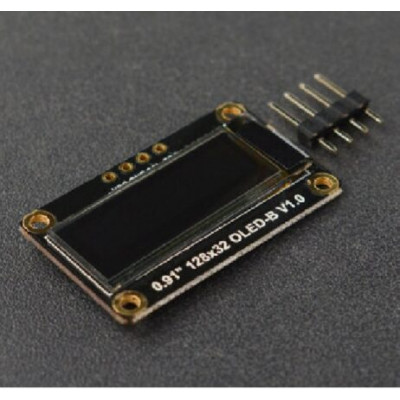

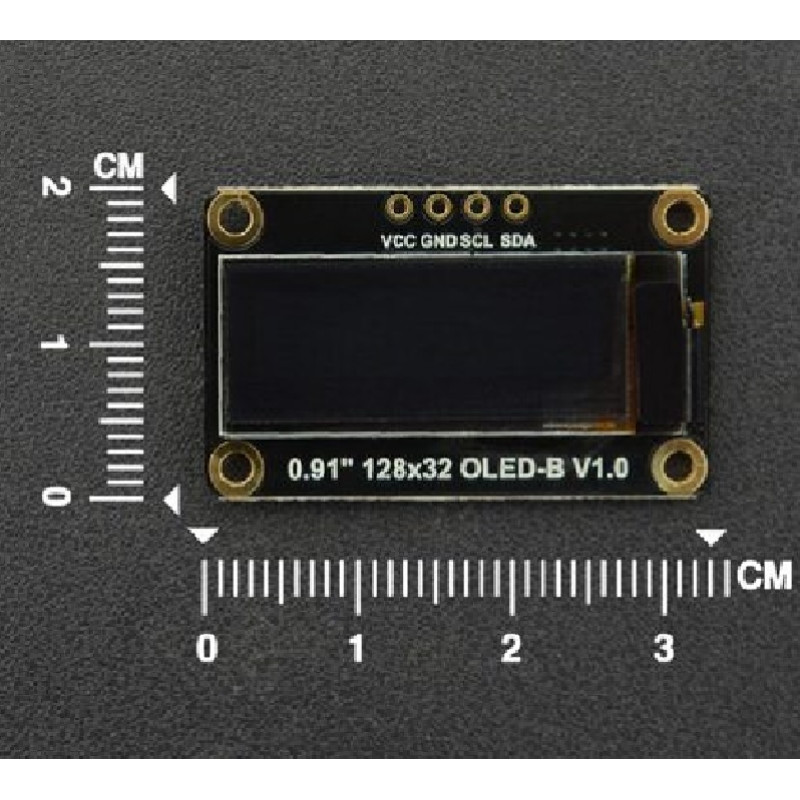

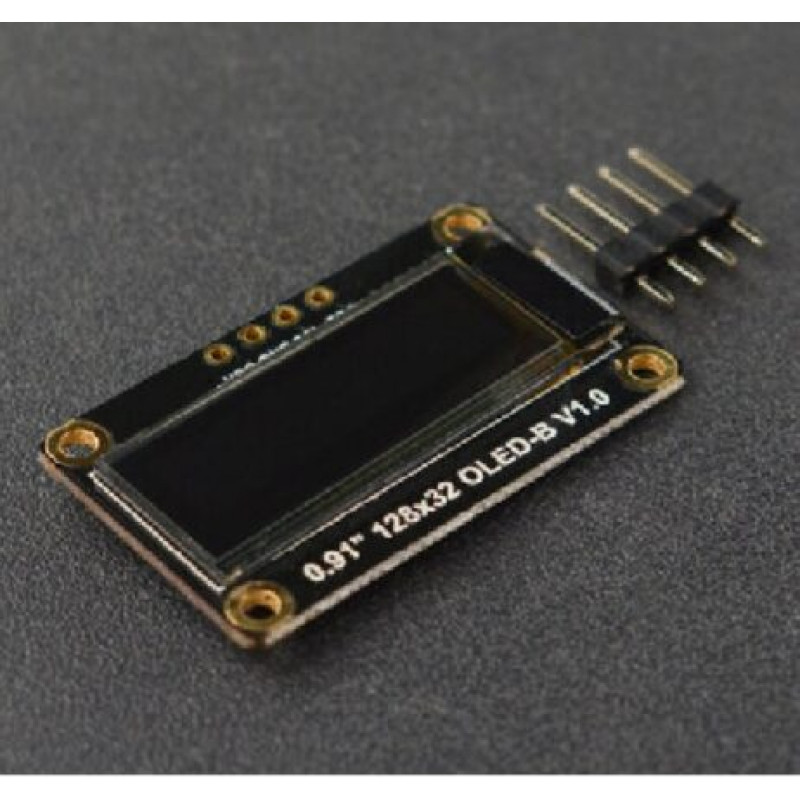

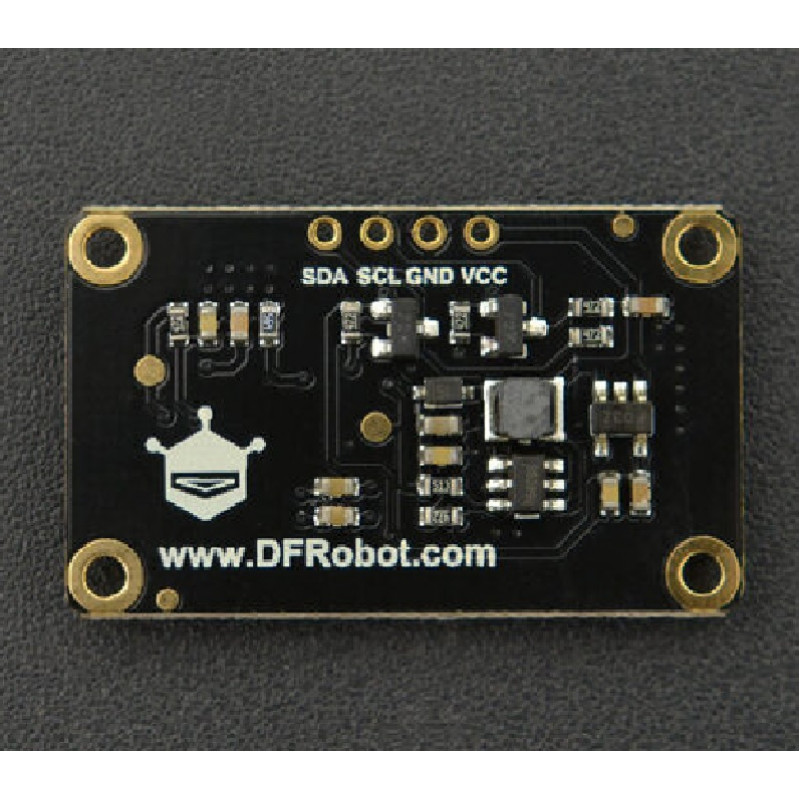

This OLED display module uses the SSD1306 drive chip, has 12832 self-illuminating white pixels, and adopts the back chip-mounting pad design. Small size, the length is 33mm and the width is 20mm. With its small size, simple wiring and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.

The display module adopts a high-contrast, low-powerOLEDdisplay. Full-screen lighting consumes approximately 25mA (3.3V) 25mA (5V) and full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V). It is compatible with controllers such as Arduino UNO, Leonardo,ESP32/ESP8266,FireBettle-M0 and so on. Internal power-on reset processing, I2C communication methods, so that your welding line will be more convenient and simpler.

Note:Turn the pixels off when you are not using the display to prevent the use of some pixels too long to darken them, which will cause the brightness uniformity problem.

Applications:

1. Thermometer
2. Desktop weather display
3. Kitchen weighing machine
4. Air quality detector
5. Mini Game consoles
6. Wearable display

Features:

1. Self-illuminating OLED display
2. Controllable pixels and low power consumption
3. Supports power-on reset
4. Number of pixels: 128 columns x 32 rows
5. Drive chip: SSD1306
6. Brightness: 180 (Typ) cd/m2
7. Full-screen lighting power: approx. 25mA (3.3V) 25mA (5V)
8. Full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V)
9. Operating temperature: -30C to 70C
10. Display area: 22.38 x 5.58 mm / 0.88x 0.22

Package Includes:

1 x Monochrome 0.9112832 I2C OLED Display

1 x 2.54 chip-mounting pin-4P
