This 0.96 OLED display module uses the SSD1306 drive chip, has 12864 self-illuminating white pixels, and adopts two communication methods: SPI/ I2C, I2C in default. With its high contrast, simple wiring and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.

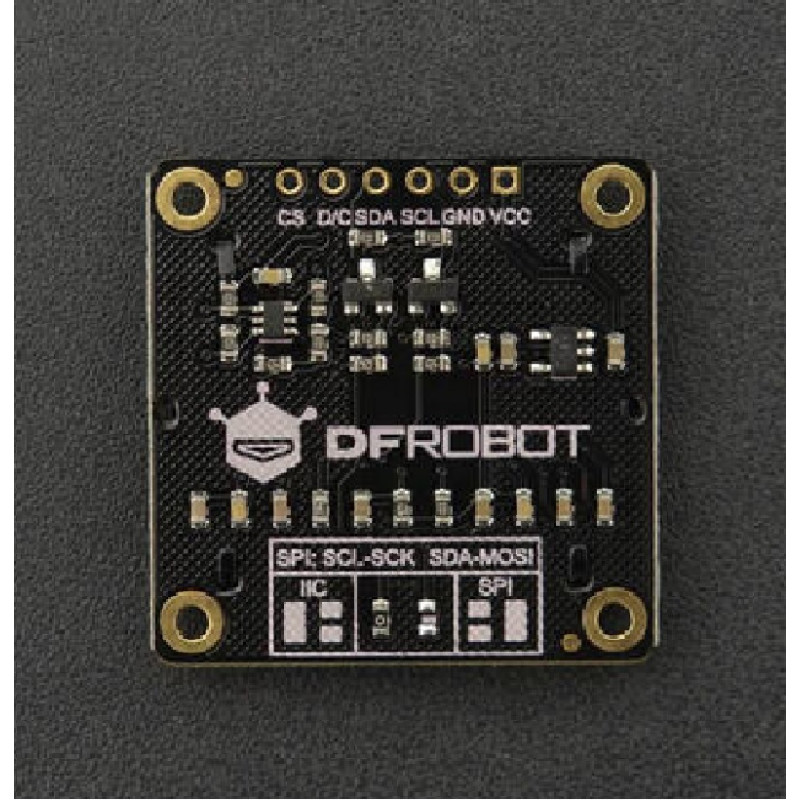

This 0.96 OLED display module supports both 3.3V and 5V. The display module adopts a high-contrast, low-powerOLEDdisplay. It is compatible with controllers such as Arduino UNO, Leonardo,ESP32/ESP8266,FireBettle-M0 and so on. Internal power-on reset processing, I2C communication methods, so that your welding line will be more convenient and simpler. If you want to change I2C communication to SPI, you just need to change the resistor position. In addition, the display is in an aluminum frame package that protects the screen from damage, and also prevents you from scratching that caused by the glass edge of the screen.

Note:Turn the pixels off when you are not using the display to prevent the use of some pixels too long to darken them, which will cause the brightness uniformity problem.

Applications:

1. Thermometer
2. Desktop weather display
3. Kitchen weighing machine
4. Air quality detector
5. Mini Game consoles
6. Wearable display

Features:

1. Self-illuminating OLED display
2. Controllable pixels and low power consumption
3. I2C/SPI communication, I2C in default
4. Supports power-on reset
5. Number of pixels: 128 columns x 64 rows
6. Drive chip: SSD1306
7. Brightness: 180 (Typ) cd/m2
8. Full-screen lighting power: approx. 24mA*3.3V/5V(I2C); approx. 27mA*3.3V/5V(SPI)
9. Full-screen off power consumption: approx. 2mA*3.3V/5V(I2C); approx. 2.87mA*3.3V/5V(SPI)

Package Includes:

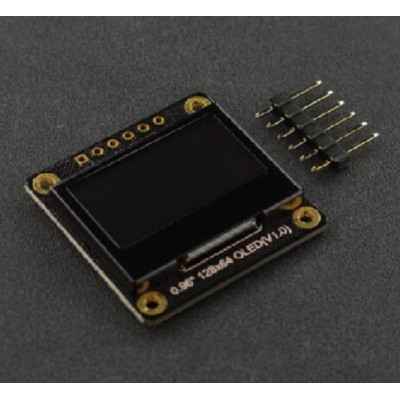

1 x Monochrome 0.96 12864 I2C/SPI OLED Display

1 x 2.54 chip-mounting pin-6P
