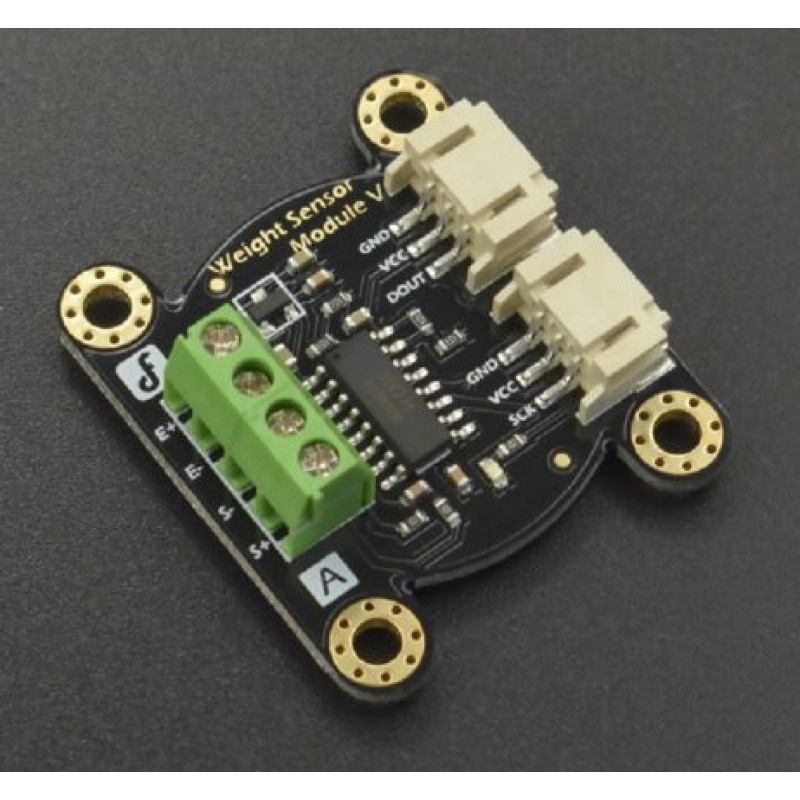

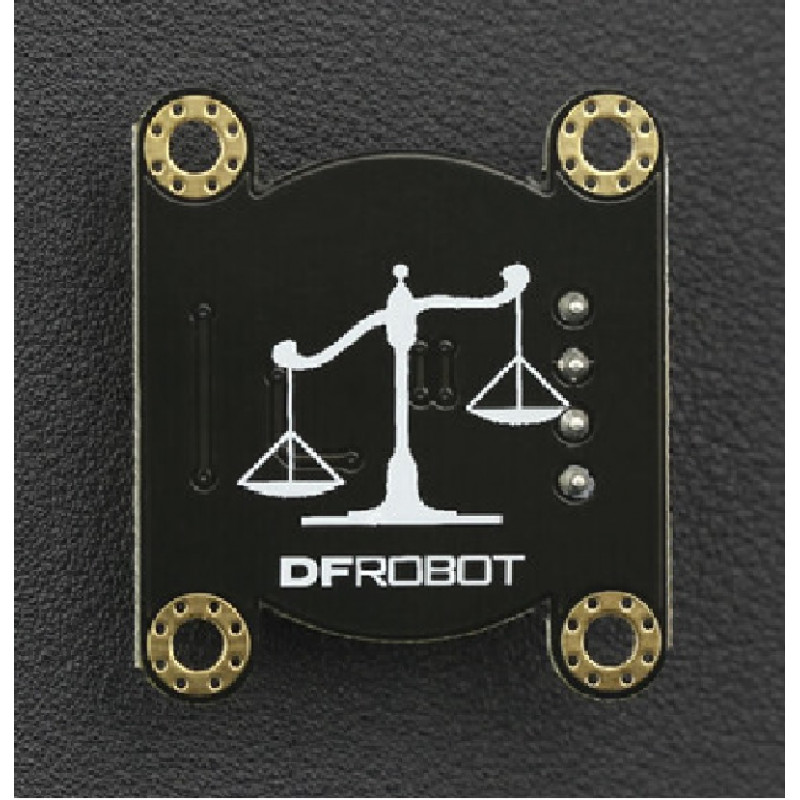

Sensor connection Note: Red Line E+

Black Line E-

White Line S-

Green Line S+

Features:

1. Two selectable differential input channels
2. On-chip active low noise PGA with selectable gain of 32, 64 and 128
3. On-chip power supply regulator for load-cell and ADC analog power supply
4. On-chip oscillator requiring no external component with optional external crystal
5. On-chip power-on-reset
6. Simple digital control and serial interface: pin-driven controls, no programming needed
7. Selectable 10SPS or 80SPS output data rate
8. Simultaneous 50 and 60Hz supply rejection

Specifications:

1. Two selectable differential input channels
2. On-chip active low noise PGA with selectable gain of 32,64 and 128
3. On-chip power supply regulator for load-cell and ADC analog power supply
4. On-chip oscillator requiring no external component with optional external crystal
5. On-chip power-on-rest
6. Simple digital control and serial interface: pin-driven controls, no programming needed
7. Selectable 10SPS or 80SPS output data rate
8. Simultaneous 50 and 60Hz supply rejection
9. Supply Voltage: 2.6V~5.5V
10. Current: <1.6mA
11. Working temperature: -40~85C
12. 16 pin SOP-16 package

1. Range: 1kg
2. Excitation voltage: 5-15 V
3. Output sensitivity: 1.00.15mV/V
4. Synthetical error: 1 per thousand cent of full scale
5. Zero shift: 0.05/0.03 30min%F.S
6. Zero temperature shift: 0.05/0.03 %F.S/10C
7. Zero output: 0.1mV/V
8. Input impedance: 105515
9. Output impedance: 10005
10. Overload capability: 200 %F.S
11. Output: Analog output

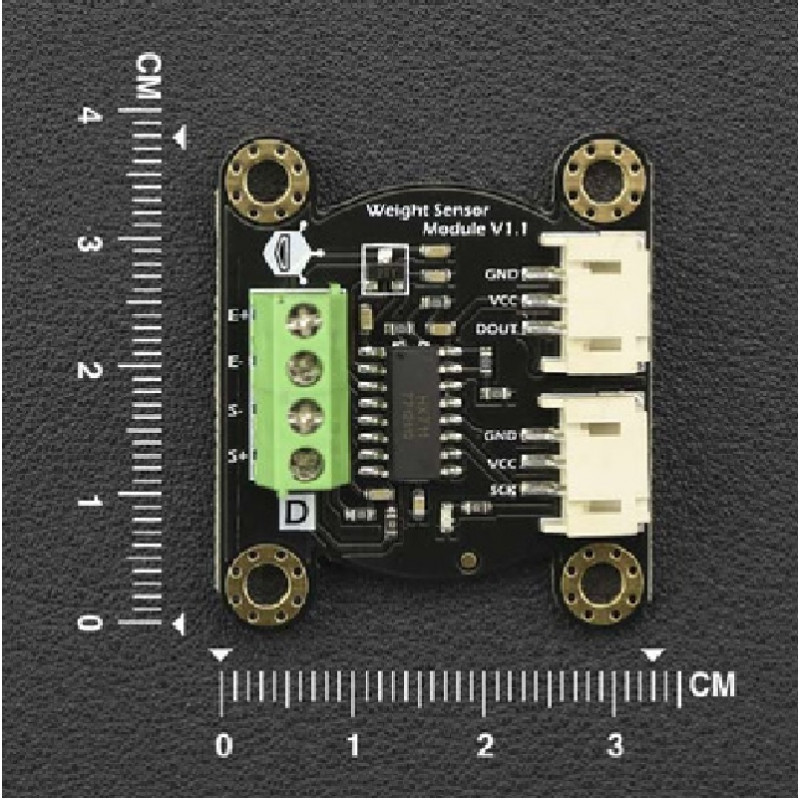

12. Size: 33mm*38mm

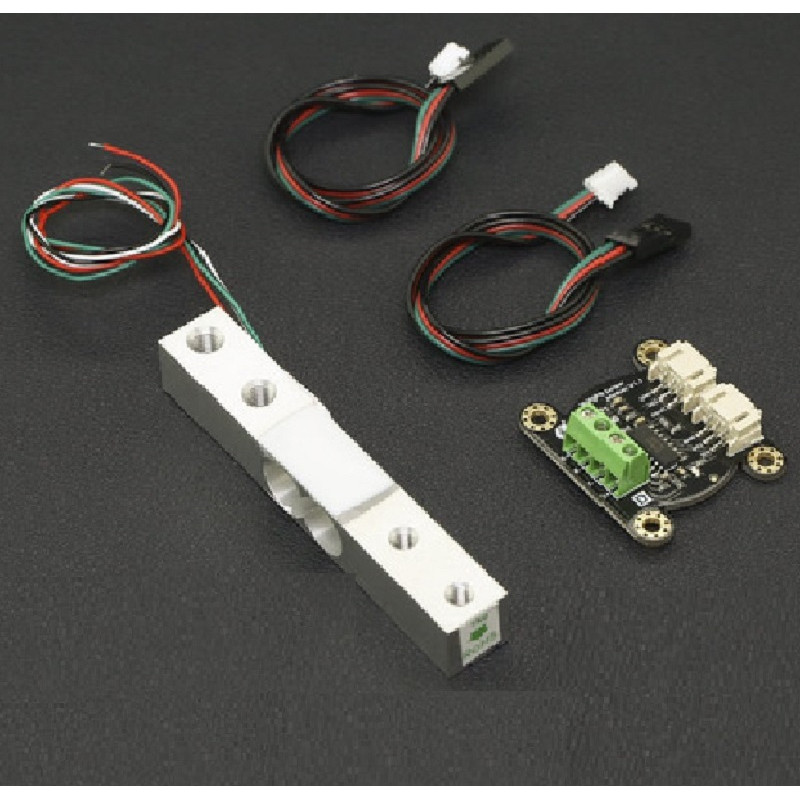

Package Includes:

1 x Weight sensor module

1 x Weight sensor

2 x Sensor cable
