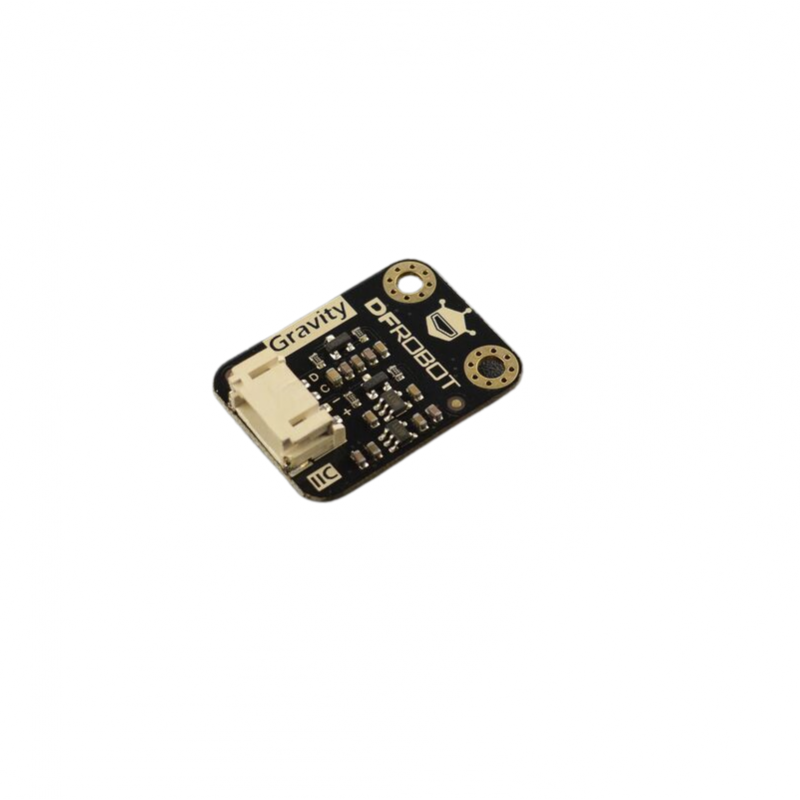

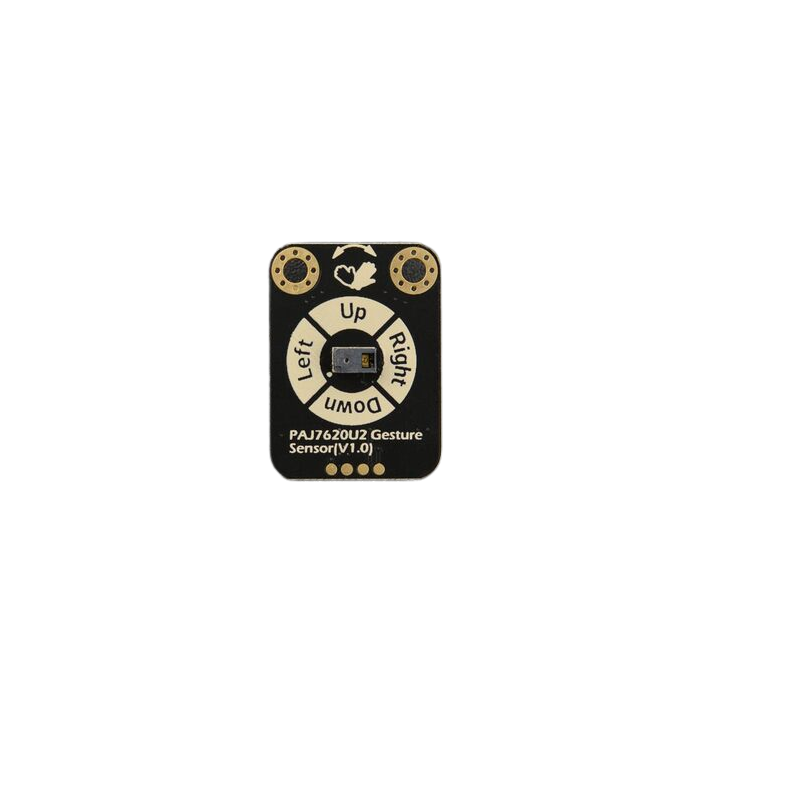

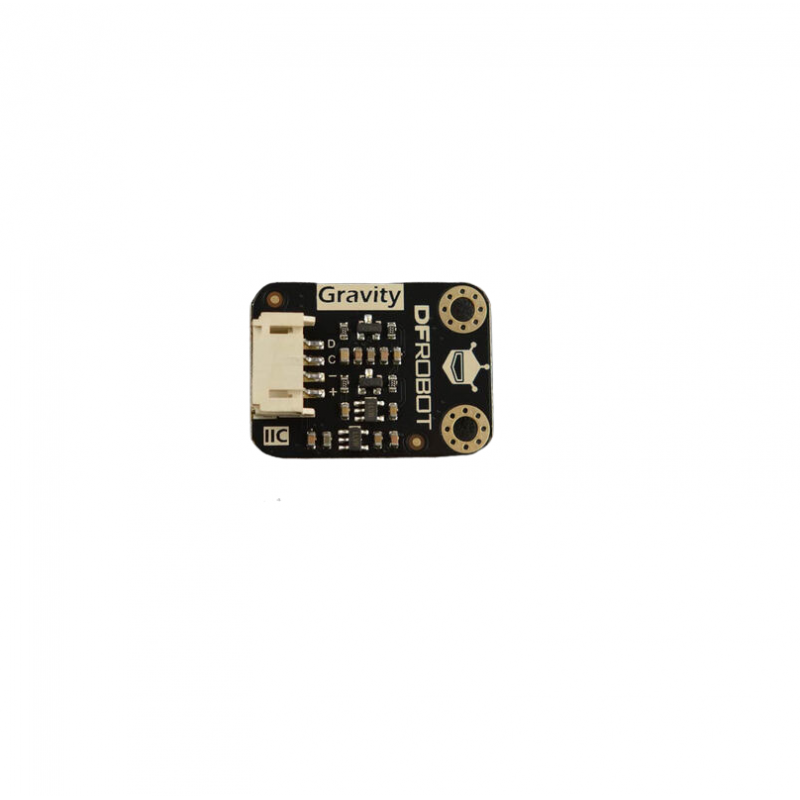

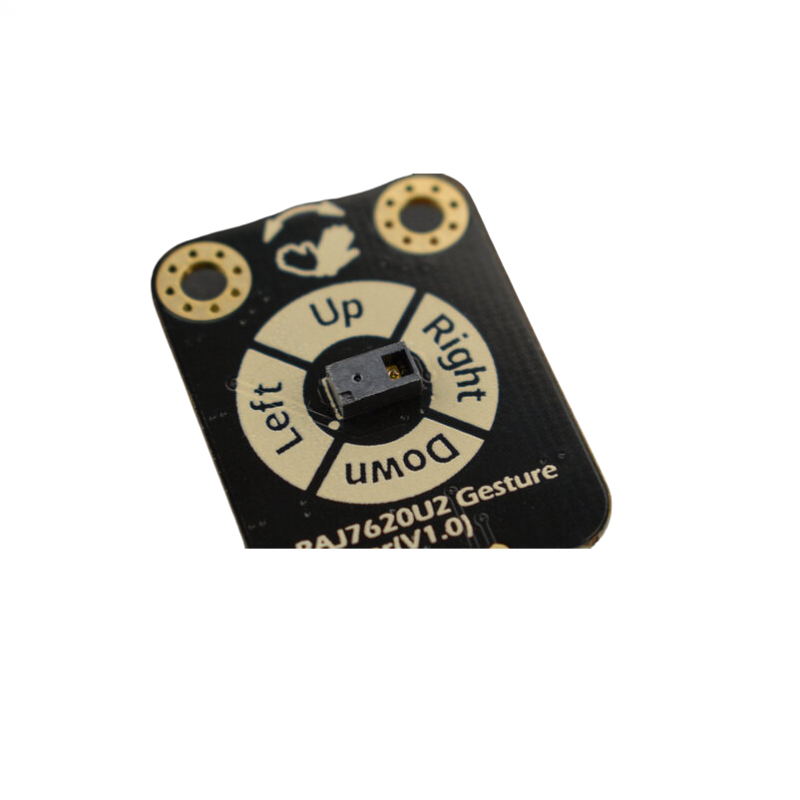

Build an awesome interactive project with this PAJ7620U2 gesture sensor! It is an interactive sensor with 3D gesture recognition that can recognize 13 gestures at most within 20cm. The sensor offers stable performance, fast response and high accuracy, which makes it an excellent choice for interactive applications like non-contact remote controllers, interactive robot, gesture-based game devices, smart lighting management, and so on.

There are two recognition modes for this sensor: fast mode (9 gestures) and slow mode (13 gestures). In fast detection mode, the sensor can recognize 9 gestures: move left, right, up, down, forward, backward, clockwise, counter-clockwise, wave. The slow mode can recognize 4 expanded gestures besides the 9 basic ones: slowly move left and right, slowly move up and down, slowly move forward and backward, move randomly. The unit sampling time can be defined by users in this mode. Moreover, users can customize their own gestures if necessary.

Connection Diagram:

Features:

1. Supports for 13 gestures recognition
2. Supports 2 gesture recognition modes
3. Supports user-defined gestures
4. Low power consumption
5. I2C communication

Useful Link:

Getting Started with Gravity: PAJ7620U2 3D gesture recognition Sensor

https://www.youtube.com/watch?v=hgL0zb6MJAA

https://www.youtube.com/watch?v=00lJlnWsl74

Package Includes:

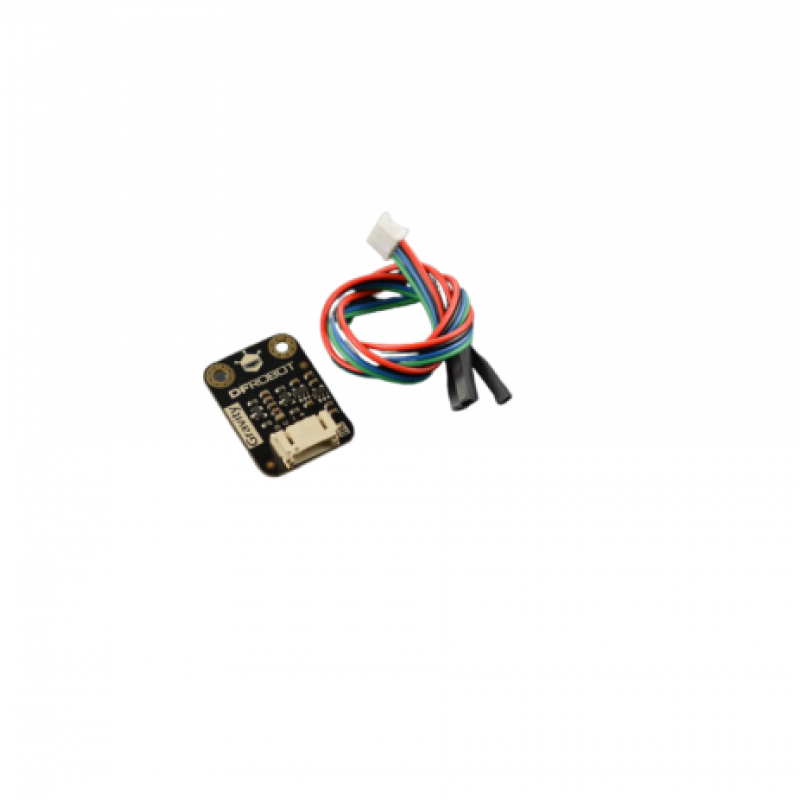

1 x DFRobot Gravity PAJ7620U2 Gesture Sensor
