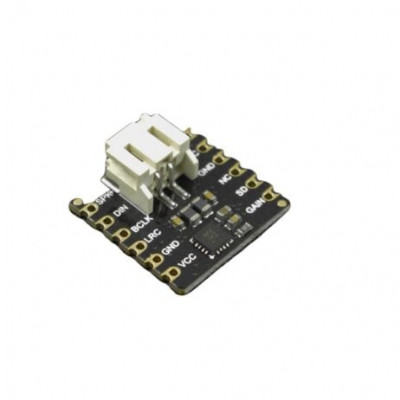

This I2S digital amplifier based on the MAX98357 I2S Class D amplifier module works great with microcontrollers with I2S audio outputs like ESP32 and can be applied to projects like IoT nodes, smart home devices, Bluetooth audio players, and so on. The module supports a 3.3V-5V power supply. And it can output over 2.5W of power when driven by 5V and a 4 speaker. Besides, it allows users to set different modes (off, left channel, right channel, and mixed) by changing the resistance on the SD port. The product defaults to mixed mode. Featuring a small size, this I2S amplifier comes with stamp holes that enable it to be directly plugged into or mounted on a PCB and breadboard. Also, it is designed with PH2.0 and stamp holes for connecting speakers, flexible and convenient to use.

Applications:

1. Bluetooth Audio Player
2. IoT Node Audio Player
3. Smart Home Voice Interaction
4. Robotic Device Audio Player

Features:

1. MAX98357 I2S digital Class D amplifier, power >2.5W
2. 3.3V~5V voltage power supply
3. Switchable sound channel
4. Adjustable gain
5. Stamp holes design, support SMT and DIP
6. Two ways to connect a speaker: PH2.0 and stamp holes

Package Includes:

1 x DFRobot MAX98357 I2S Amplifier Module
