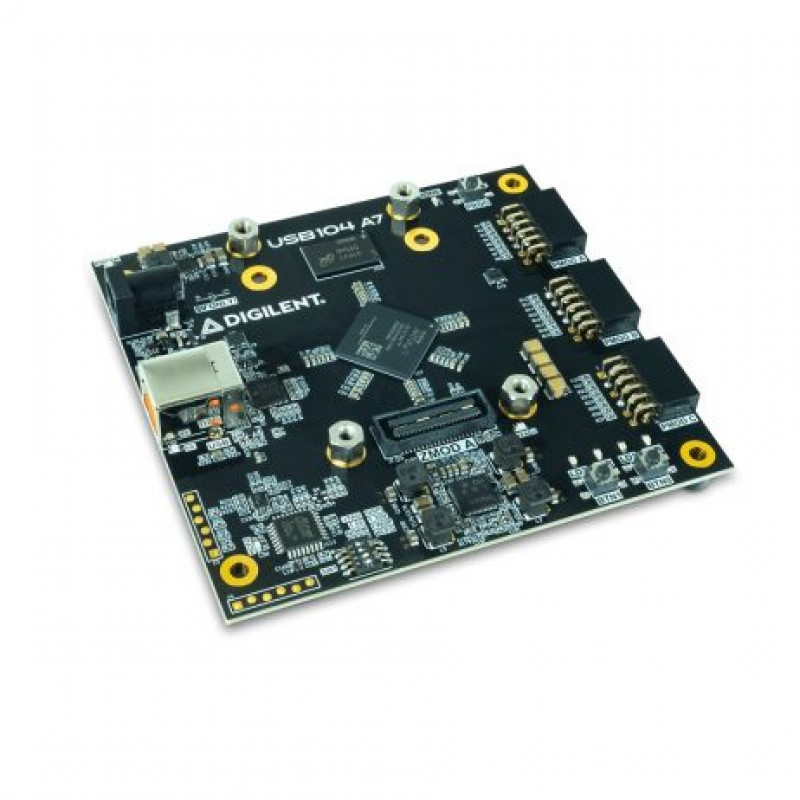

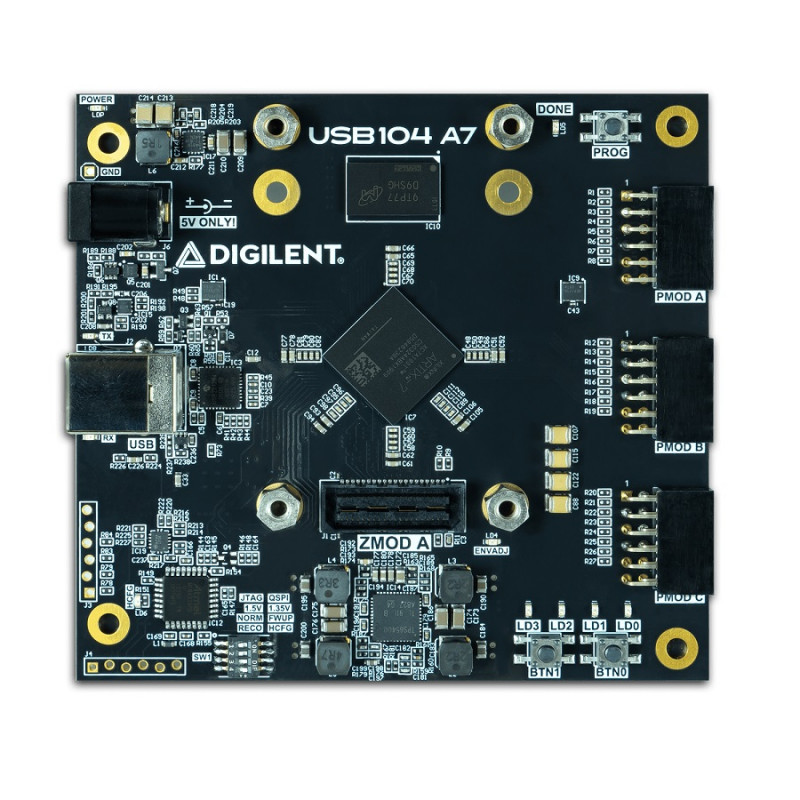

The Digilent USB104 A7 boasts power and versatility in a compact and rugged package for industrial SWaP applications. Designed for use across the industrial temperature range, the USB104 A7 features the Xilinx Artix-7 XC7A100T with an operating range from -40C-100C.* The USB104 A7 also features a SYZYGY port for high-speed data acquisition through the addition of Zmod expansion modules. This allows users to quickly develop and run customized FPGA-based data acquisition and signal processing applications on embedded systems. Ideal application areas include industrial automation, embedded OEM, telecommunications and mil-aero.

Features:

1. Logic Cells: 101,440
2. DSP Slices: 240
3. Memory: 4,860 Kbits
4. 512 MB DDR3/DDR3L with 16-bit bus @ 800 MT/s (1.5V) or 667 MT/s (1.35V)
5. 16MB Quad-SPI Flash for storing FPGA configuration

Package Includes:

1 x Digilent USB104 A7: Artix-7 FPGA Development Board with SYZYGY-compatible Expansion
