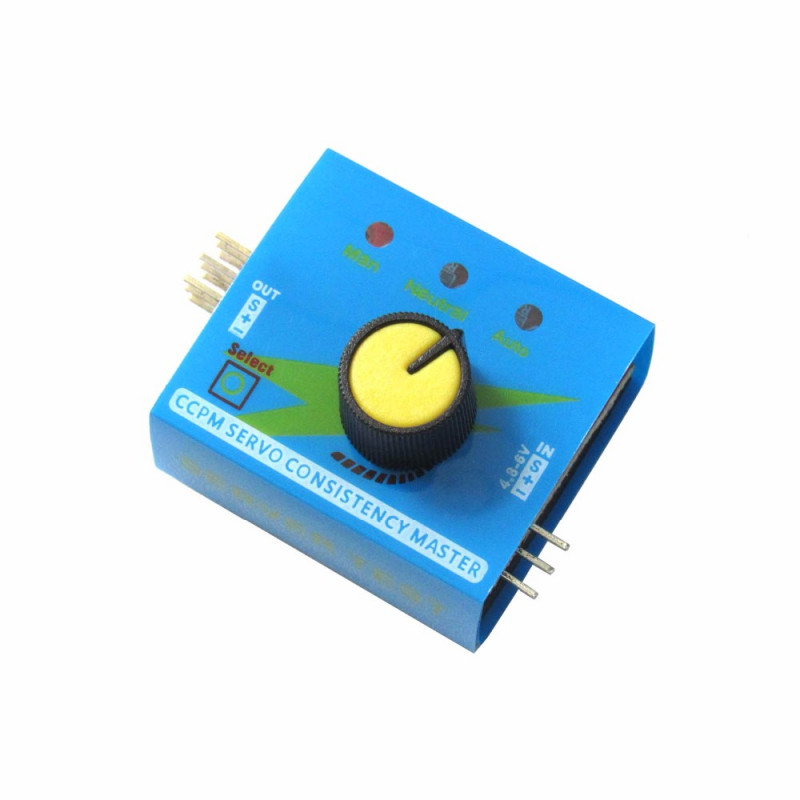

  • Digital Multi Servo Tester ESC CCPM Consistency Master Speed Control

The Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control offers 3 modes to check servos or ESC. The Manual Mode allows you to turn the knob to different speeds and check the reaction time. The Neutral mode makes the servo go back to the neutral point. The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible.

Plus, this servo tester can connect to up to 3 servos simultaneously. You can also connect up to 3 ESCs to test and compare their reaction time respectively. Click and order now!


Operation Modes:-

  • Automatic mode:- Operates servos to their end point and back “window wiper” mode: Make the servo swing like window wipers in the biggest angle
  • Manual mode:- Turn the knob with different speed, check the reaction time
  • Neutral / Center mode:- Centers servos to their neutral position Ideal for when setting servos up in a model


Specifications & Features:-

  • Operating Voltage: DC 4.8-6V
  • Offer 3 modes to check servos or ESC
  • The Manual Mode allows you to turn the knob to different speeds and check the reaction time
  • The Neutral mode makes the servo go back to the neutral point
  • The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible
  • Connect to up to 3 servos simultaneously
  • Connect up to 3 ESCs to test and compare their reaction time respectively
  • Built with LED indicators
  • Output signal: 1.5ms±0.5ms
  • Size: 36.5 x 31.0 x 22mm

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 90.86 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Digital Multi Servo Tester ESC CCPM Consistency Master Speed Control

  • Product Code: EC-3187
  • Availability: 1220
  • Rs.86.00
  • (Excluding 18% GST)
