Seven segment displays are used in many day to day consumer devices like microwave ovens, washing machines, and air conditioners. They are a simple but effective way to display numerical data like time or quantity. Since they are made out of LEDs, they are a low-cost option for displaying information.They are widely appreciated for its features like accuracy, clarity and optimum functionality.
Features:
- Bright Red LED chip, which is made from AlGaAs on GaAs substrate
- Blackface and RED LED segments
- Type: Common cathode
- No. of Pins: 12
- Low Current Consumption
- High Brightness
- Easy to Use with PCB Mounting as well as on Breadboard
Package Includes:
2 x 0.56 Inch Red 3-Digit 7 Segment LED Display CC-2Pcs.
Specifications:

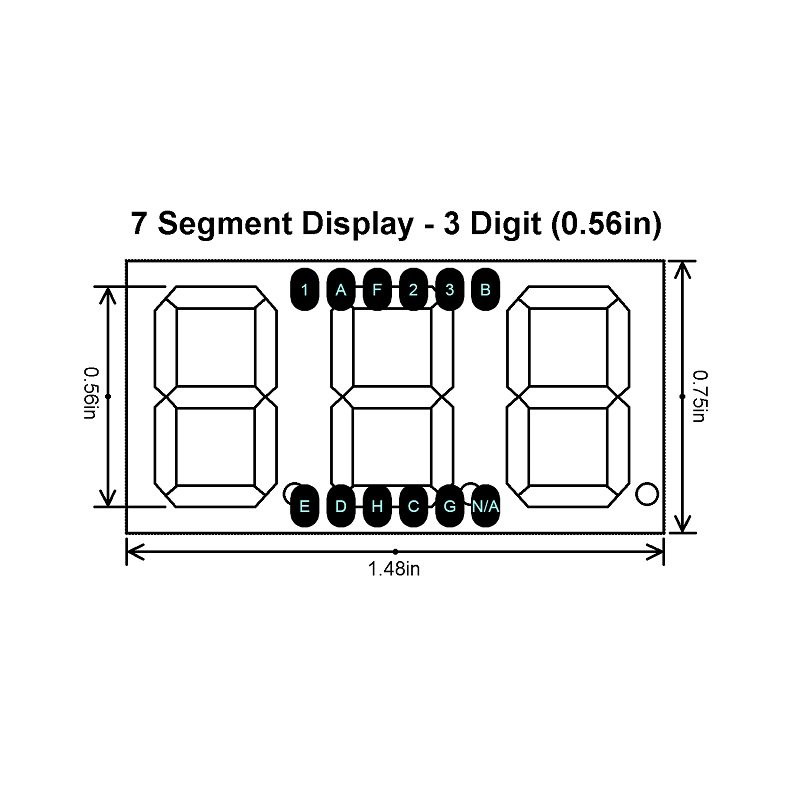

| Display Type | Seven segments |
| Configuration | Common Cathode |
| No. of Pins | 12 |
| LED colour | RED |
| No. of Digits | 3 Digits |
| Digit Height | 14mm |
| Operating current | 10mA |
| Wavelength | 640nm |
| Length (mm) | 38 |
| Width (mm) | 19 |
| Height (mm) | 8.31 |
| Weight (gm) | 5 for each Display |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 115.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

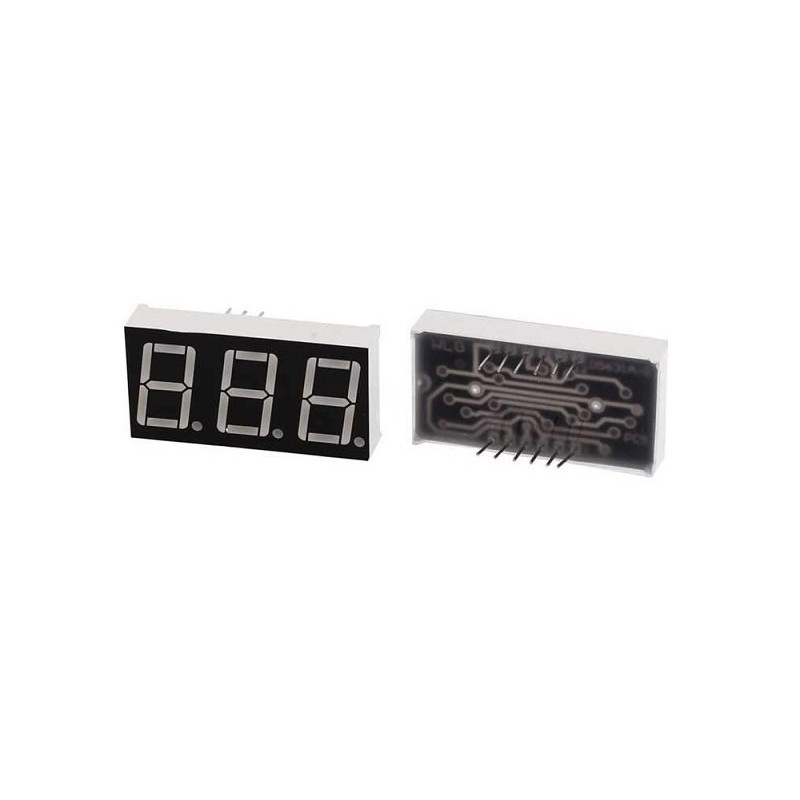

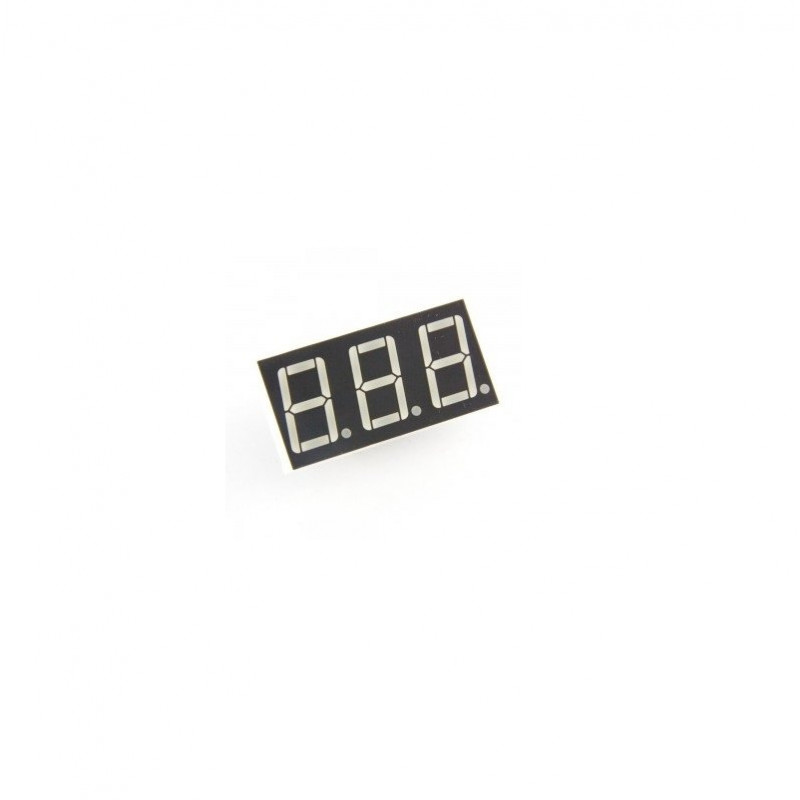

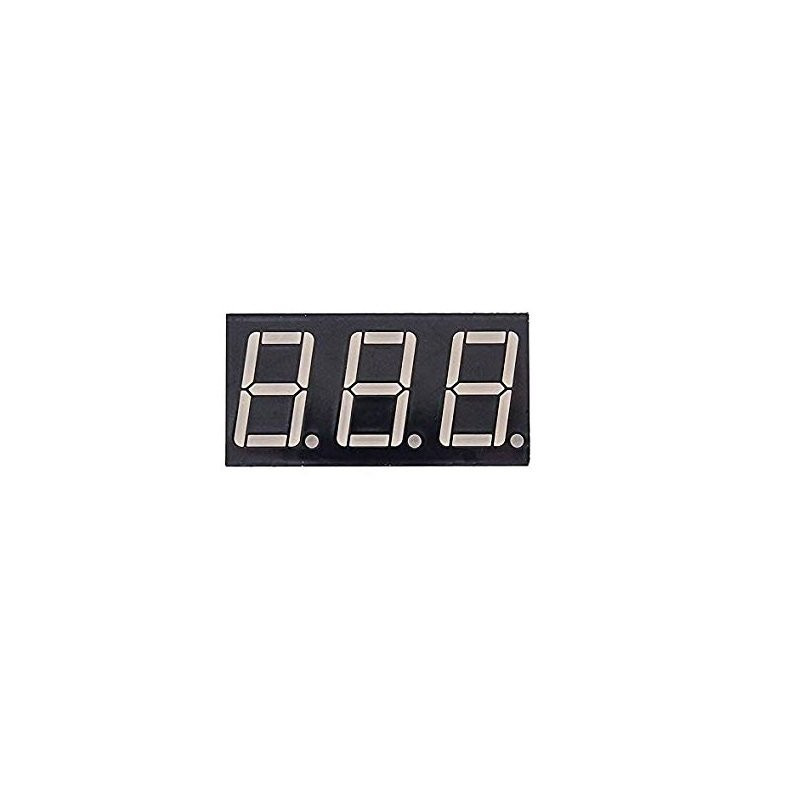

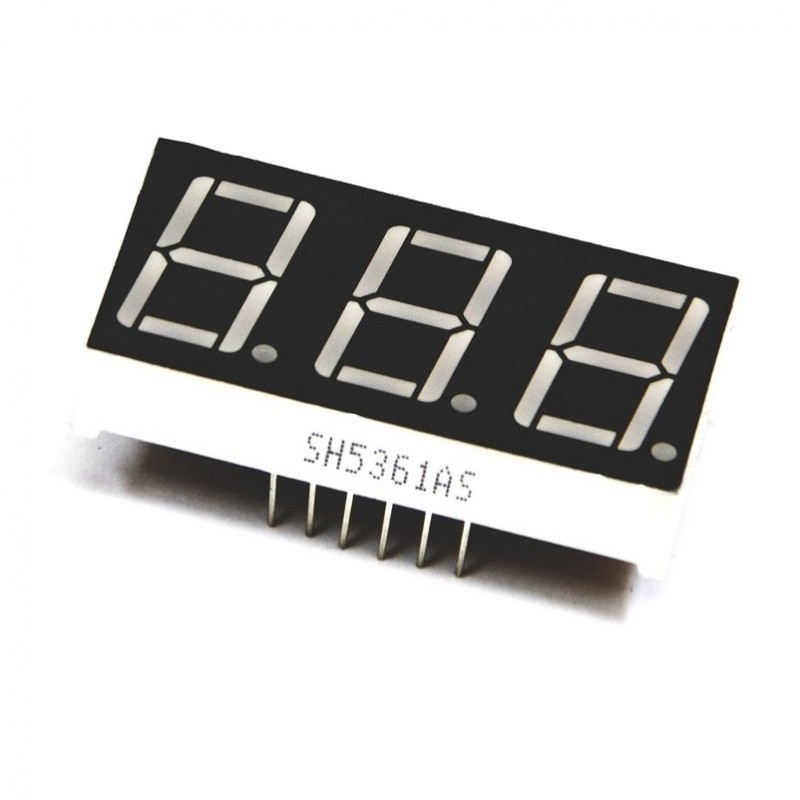

0.56 inch Red 3 Digit 7 Segment LED Display CC 12pin - Pack of 2
- Product Code: EC-6758
- Availability: 39
-
Rs.74.00
- (Excluding 18% GST)
