Display Voltage and current simultaneously in different colors, red for Voltage, Green for current (the current is Measured in the negative rail). 2 Require external power supply; with reversed connection protection. 3 Ground wire of the testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time. 4 With built-in shunt, has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement
Features:
- Rapid response recovery characteristics.
- It Has a long life and reliable stability.
- High precision, four digital displays.
- Working voltage: DC 4V-28V.
- Working current: 10mA.
- Display: 0.28 Two-color blue and Green.
- Measuring range: DC 0-100V 0-01A.
- Operating temperature: -10 to 65 c.
- Working pressure: 80 to 106 kPa.
- Size: 482520 mm.
- Current: Range x 0.08%+Two digits.
- Voltage: Range x 0.08%+Two digits.
Package Includes:

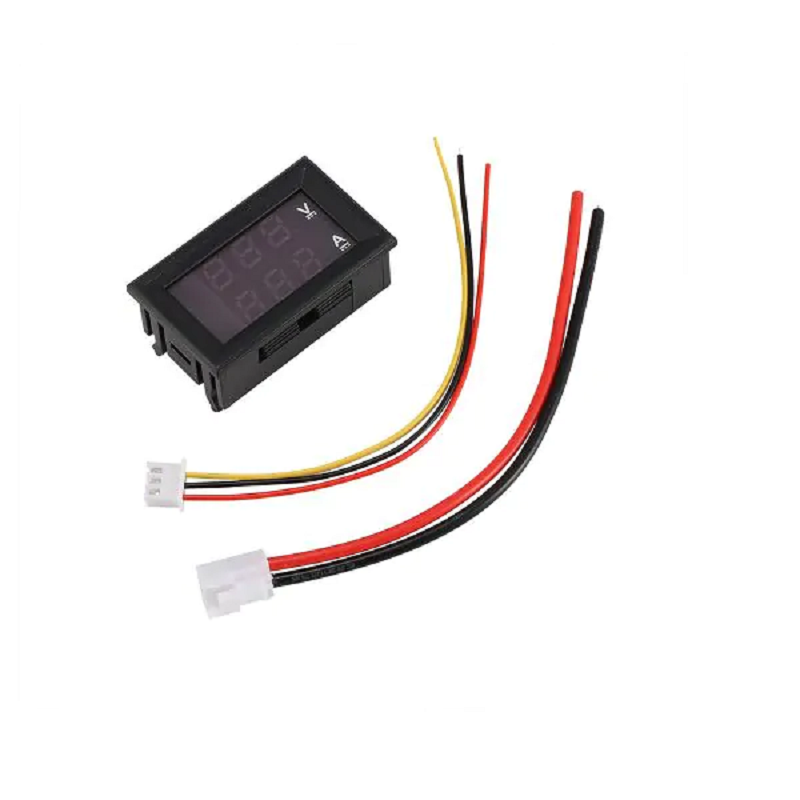

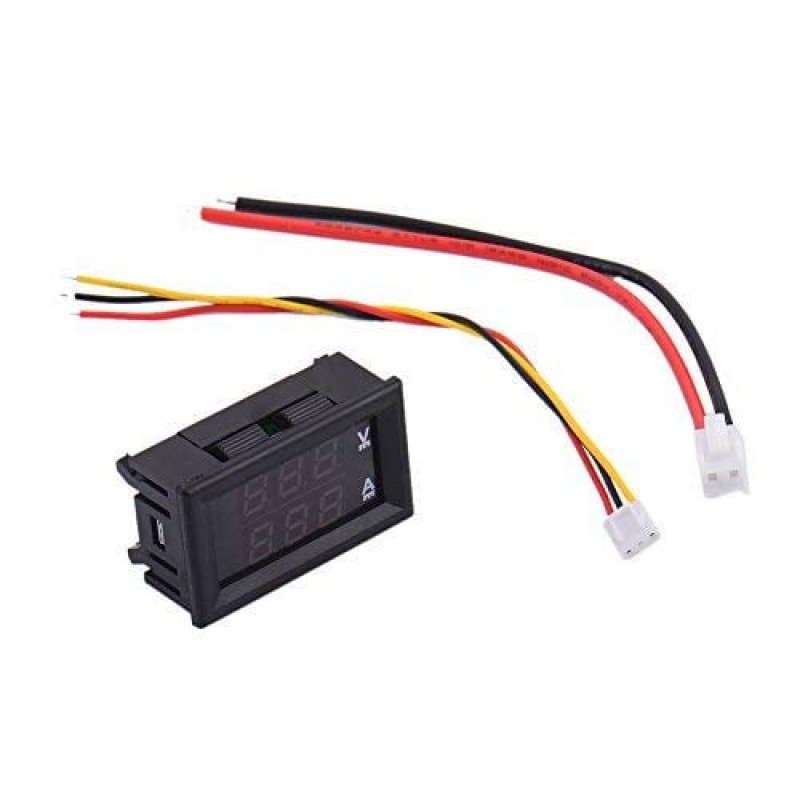

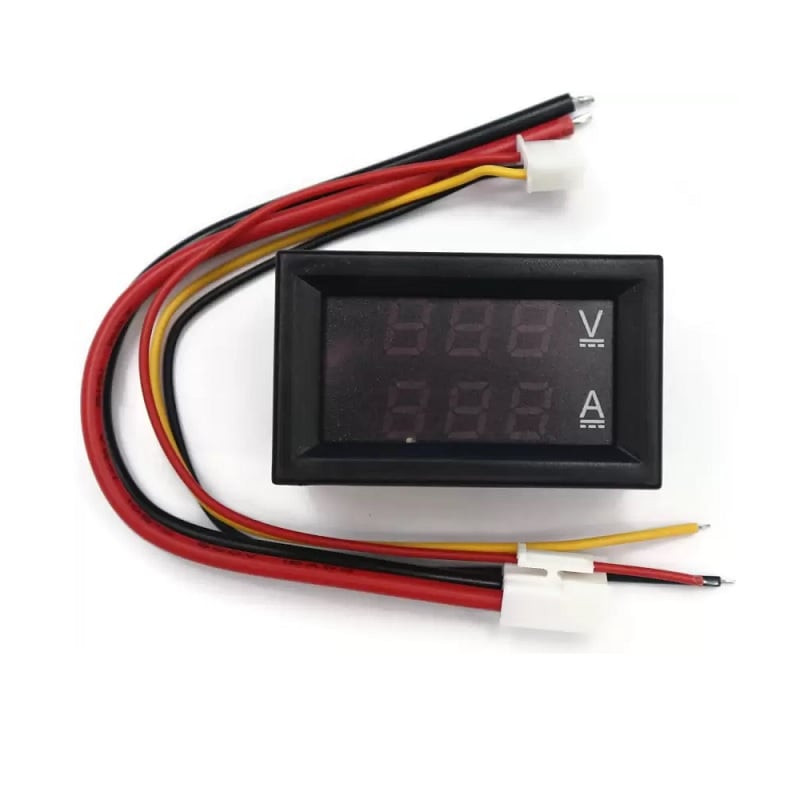

1 x Dual Led 0.28 Display for DC0-100V 10A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red & Green 10A
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Dual Led 0.28 Display for DC0-100V 10A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red-Green 10A
- Product Code: EC-24485
- Availability: Out Of Stock
-
Rs.231.00
- (Excluding 18% GST)
