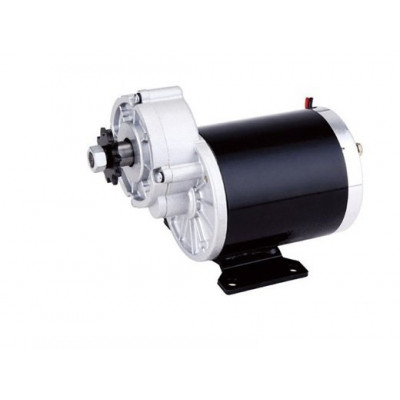

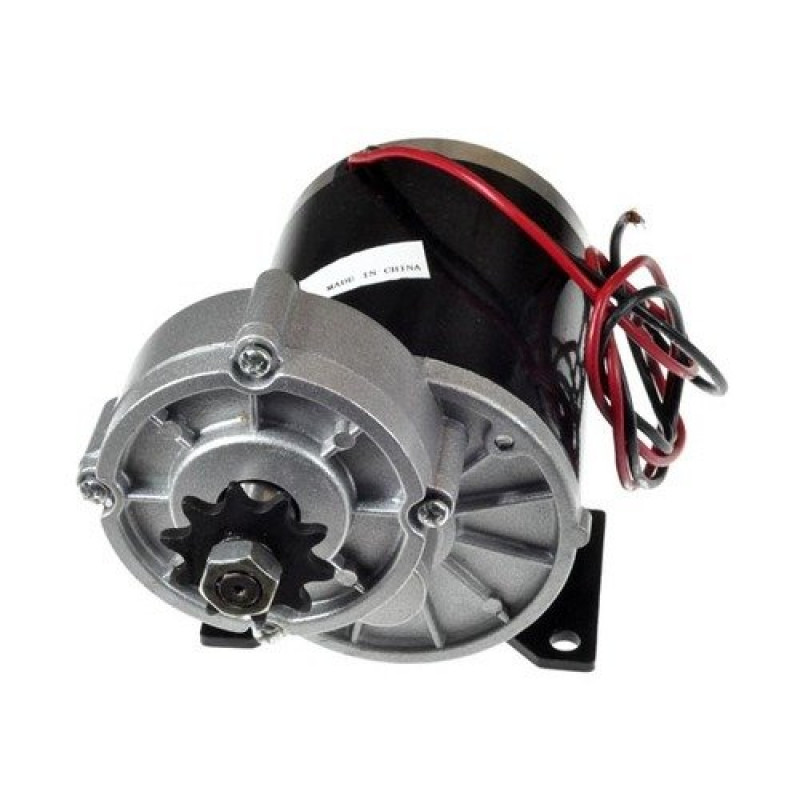

Ebike MY1020Z 600W 36V 480RPM DC Motor (GB), This motor should work with some Xtreme or Razor electric scooter, mini bike or go-kart using a 600W motor. Should also work with any other brand with similar specs in the motor.
Recommended Product with this Motor:
Motor Controller 36V for MY1020z 600W
24V/36V/48V EBike Twist Throttle Grip Accelerator for E-bike
Brake for Ebike
Package Includes:
1 x Ebike MY1020Z 600W 36V 480RPM DC Motor
Specifications :-
| Model | MY 1020Z2. 600W |
| Operating Power | 600 W |
| Operating Voltage (VDC) | 36 |
| Rated Current(A) | 2.5 |
| Rated Speed (RPM) | Base: 3200 |
| Rated Speed After Reduction (RPM) | 480 |
| Rated Torque (Kg-Cm) | 18.35 |
| Gearbox | Yes |
| Weight (Kg) | 5.438 |
| Efficiency | 78%. |
| Application | Small and Medium-sizeE-Tricycle |
| Gear Ratio | 6.67:1 |
| Cable Length (Meter) | 0.5 |
| Shipment Dimensions | 19x10x16 cm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 8258.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Ebike MY1020Z 600W 36V 480RPM DC Motor (GB)
- Product Code: EC-8376
- Availability: Out Of Stock
-
Rs.5628.00
- (Excluding 18% GST)
