Raspberry Pi Pico is a new popular low-cost, high-performance microcontroller board. This Pico board can be well integrated with Crowtail sensors. Without jumpers and breadboards, you can quickly build prototypes and projects, and explore the endless possibilities of Pico.

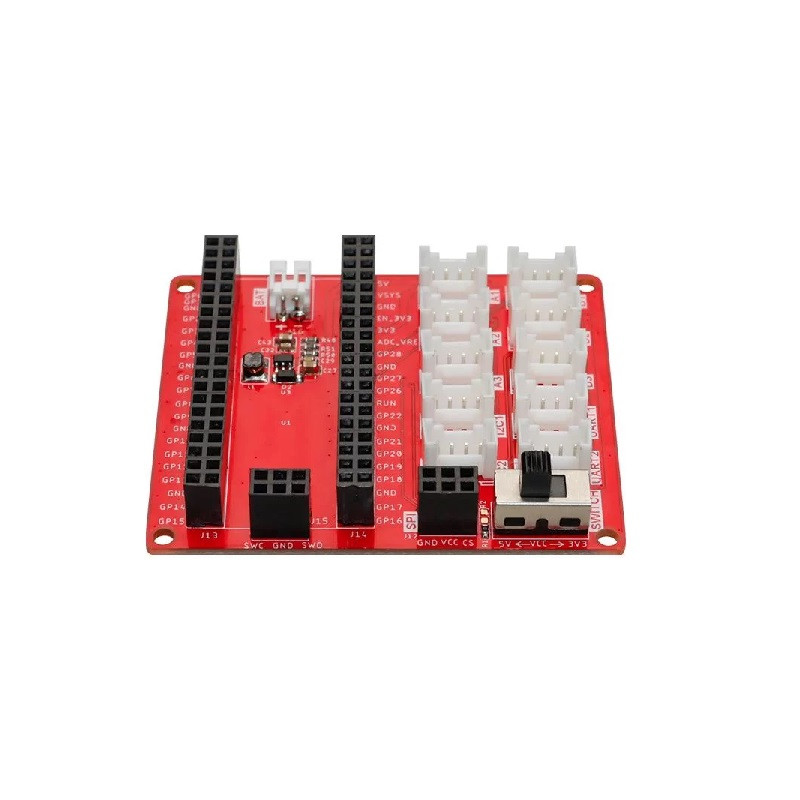

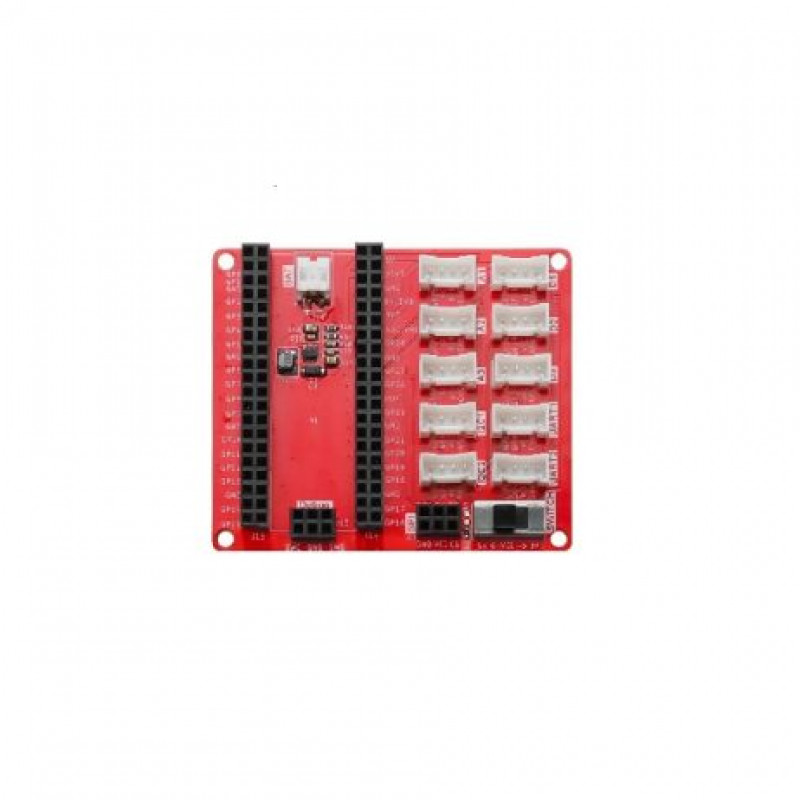

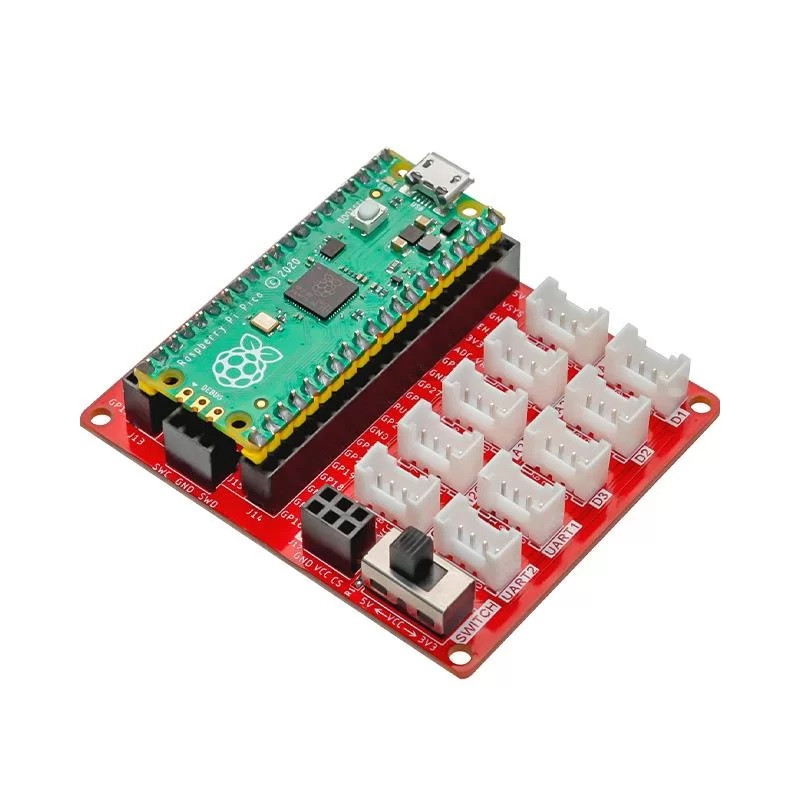

Crowtail Shield for Pi Pico is a plug-and-play expansion board for Raspberry Pi Pico, integrating various Crowtail connectors, including 2*I2C, 3*Analog, 2*UART, 3*Digital ports, 1*BAT, SWD debug interface and SPI pin, 3.3v/5v selectable power switch. The shield board is a stackable add-on board. You can directly use the Pre-Soldered Pico and plug it into the shield board, connect the Crowtail series sensors, and start developing your new project.

Noted: doesnt include the Pico board.

Features:

1. Crowtail GPIO Expansion Board for Pico: Separate the pins and power supply of the board, providing 10 additional Crowtail ports
2. Rich Peripherals for Crowtail: Provides 10 Crowtail ports, including 2 I2C, 2 UART, 3 digital and 3 analogs,
3. 1 SPI port, 1 power switch, 1 BAT interface, and SWD debugging interface.
4. No soldering required, plug and play: support direct connection to Crowtail sensors
5. Platform support: MicroPython & Arduino

Package Includes:

1 x ELECROW Crowtail shield for Raspberry Pi Pico (RP2040)
