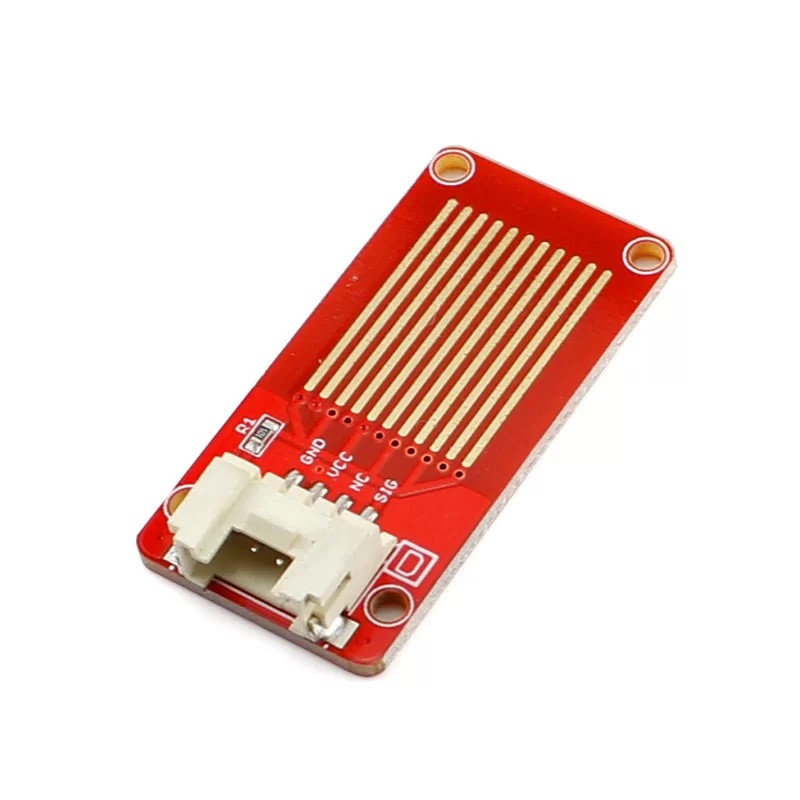

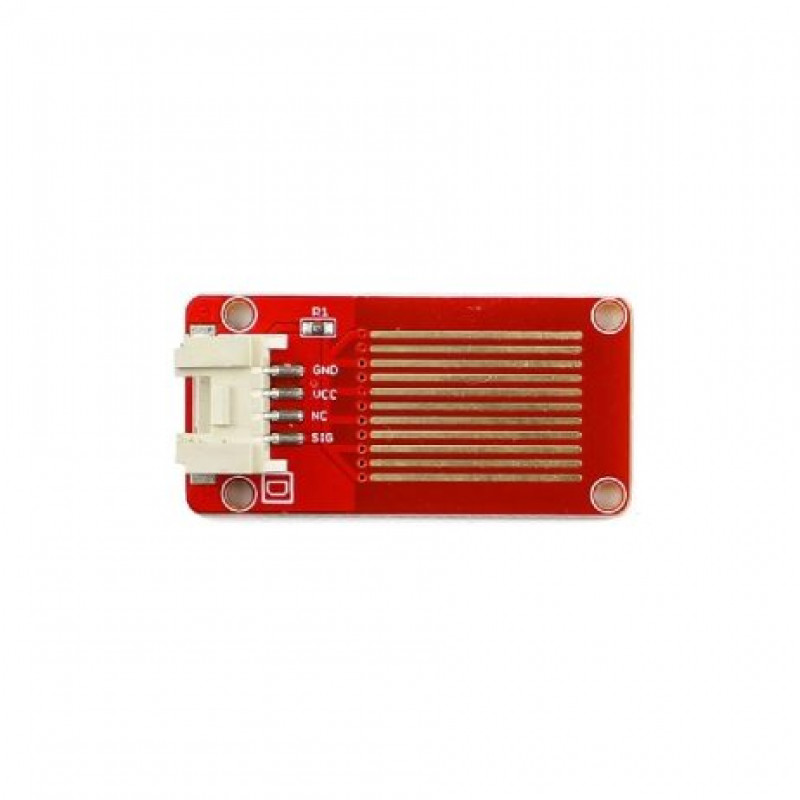

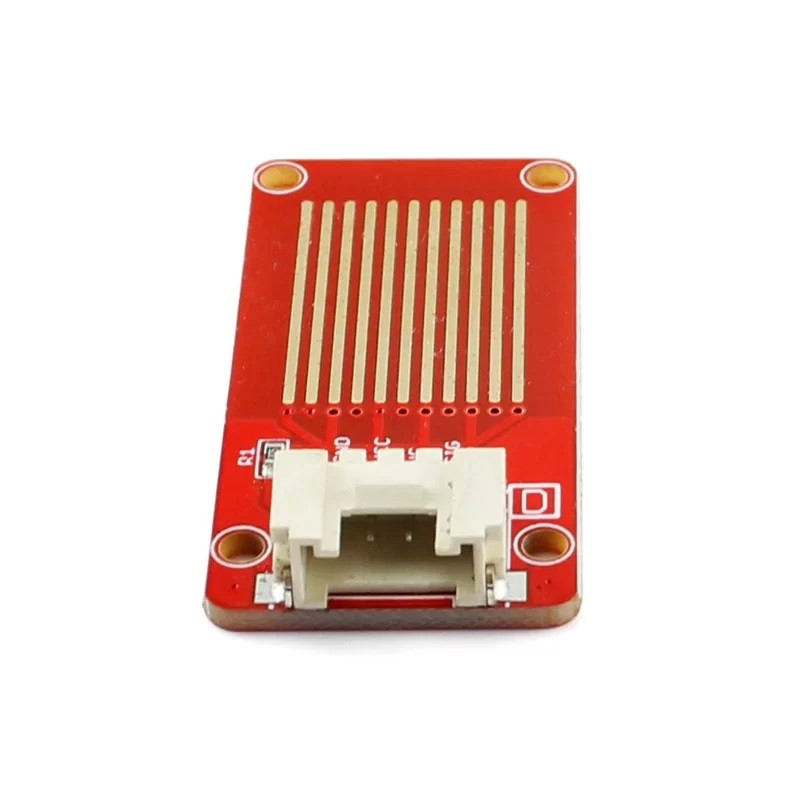

A NEW ELECROW Crowtail- Water Sensor 2.0 called crowtail- water sensor has a specific crowtail interface that compatible with crowtail base board. The water sensor detects water by having a series of exposed traces connected to ground and interlaced between the grounded traces are the sensor traces. The sensor traces have a weak pull-up resistor of 1 M?. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the grounded trace. With the digital I/O pins of Crowduino , you can detect the amount of water induced contact between the grounded and sensor traces.
Features:
- Crowtail compatible interface
- Low power consumption
- High sensitivity
- Dimensions(mm): 40.0(L)x20.0(W)x6.8(H)
- Applications Ideas
- Rainfall detecting
- Liquid leakage
- Tank overflow detector
Package Includes:
1 x Crowtail-water sensor
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

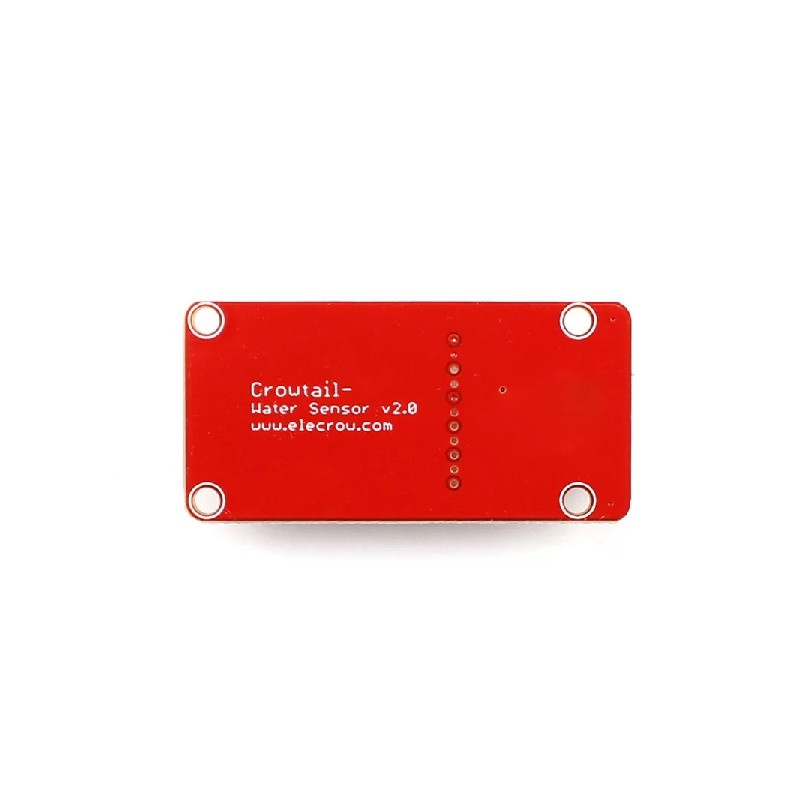

ELECROW Crowtail- Water Sensor 2.0
- Product Code: EC-28541
- Availability: Out Of Stock
-
Rs.71.00
- (Excluding 18% GST)
