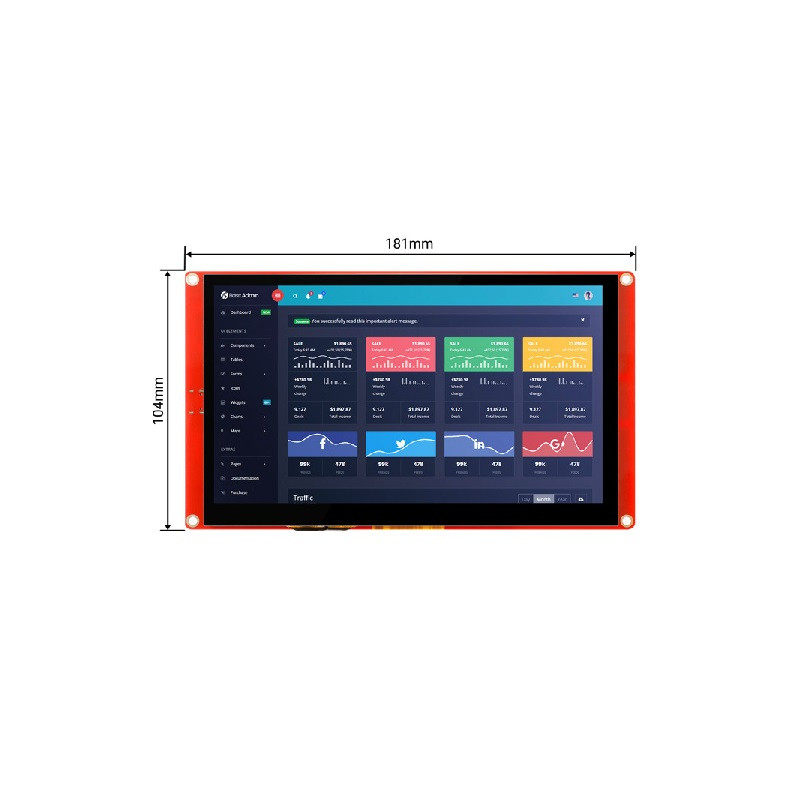

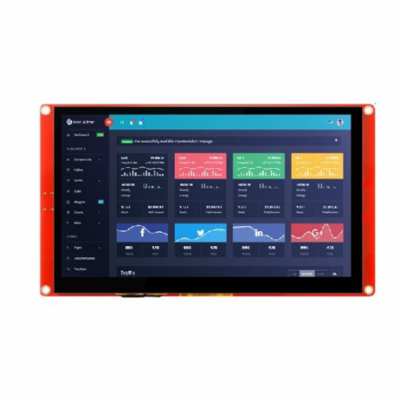

The Elecrow ESP32 Display 7.0 inch module boasts an 800 x 480 LCD touchscreen powered by the ESP32-S3-WROOM-1-N4R8 module, featuring a dual-core 32-bit LX6 processor with integrated WiFi and Bluetooth. With a main frequency of up to 240MHz, it excels in performance, making it ideal for IoT applications. The 7.0-inch display, capacitive touch technology, TF card slot, and multiple interfaces offer expansive possibilities. Supporting various development environments and the LVGL graphics library, along with 16 tutorials, it accelerates project development for automotive HMI, medical equipment, industrial control, and diverse IoT applications.
Feature:
- Integrated ESP32-S3 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0.
- Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library.
- Built-in LVGL demo interface and Arduino example, plug and play.
- LCD 800 x 480 7.0 inches TFT-LCD with driver IC EK9716BD3 + EK73002ACGB.
- Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.

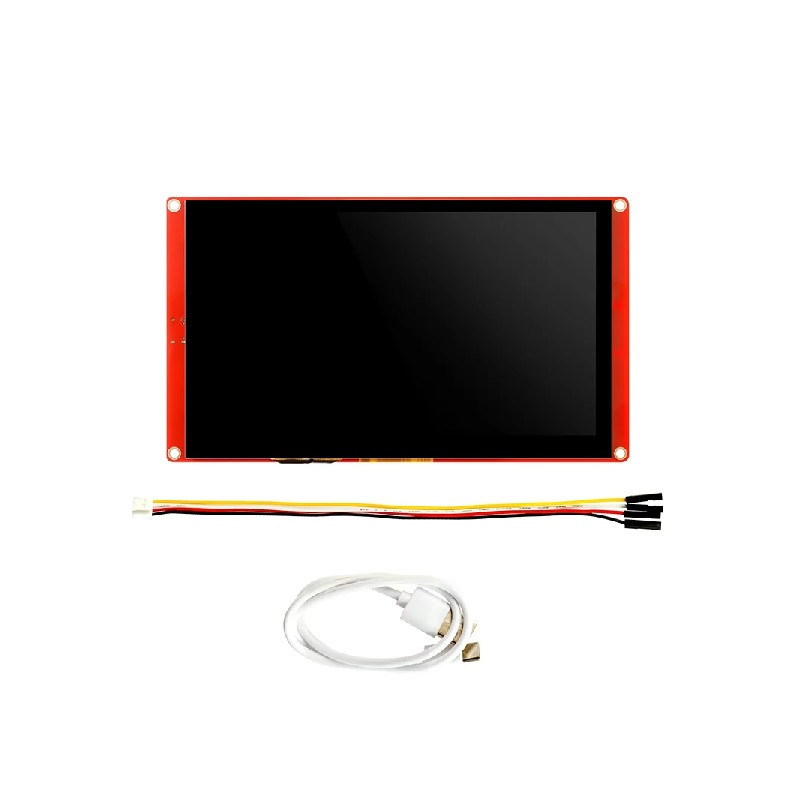

Package Includes:
1x ESP32 Display7.0 Inch module
1x USB-A to Type-C Cable
1x Crowtail/Grove to 4pin DuPont cable
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
ELECROW ESP32 display 7.0 Inch HMI Display 800480 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/PlatformIO/ Micropython Without Acrylic Case
- Product Code: EC-28557
- Availability: 5
-
Rs.3581.00
- (Excluding 18% GST)
