CD4010 Hex Buffer/Converters may be used as CMOS to TTL or DTL logic-level converters or CMOS high-sink-current drivers.
The CD4010 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix).
Features:-
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
- 5-V, 10-V, and 15-V parametric ratings
- Applications:
- CMOS to DTL/TTL hex converter
- CMOS current "sink" or "source" driver
- CMOS high-to-low logic-level converter
- Multiplexer — 1 to 6 or 6 to 1
Specifications:-
| Parameter | Specification |
| Part number | CD4010B |
| Technology Family | CD4000 |
| Bits (#) | 6 |
| Voltage (Nom) (V) | 10 |
| IOH (Max)(mA) | -1.65 |
| IOL(Max)(mA) | 30 |
| F @ nom voltage (Max)(MHz) | 8 |
| ICC @ nom voltage (Max)(mA) | 0.06 |
| Schmitt trigger | No |
| tpd @ nom Voltage (Max)(ns) | 200 |
| Rating | See Data Sheet |
| Package Group | PDIP|16 |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 18.88 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

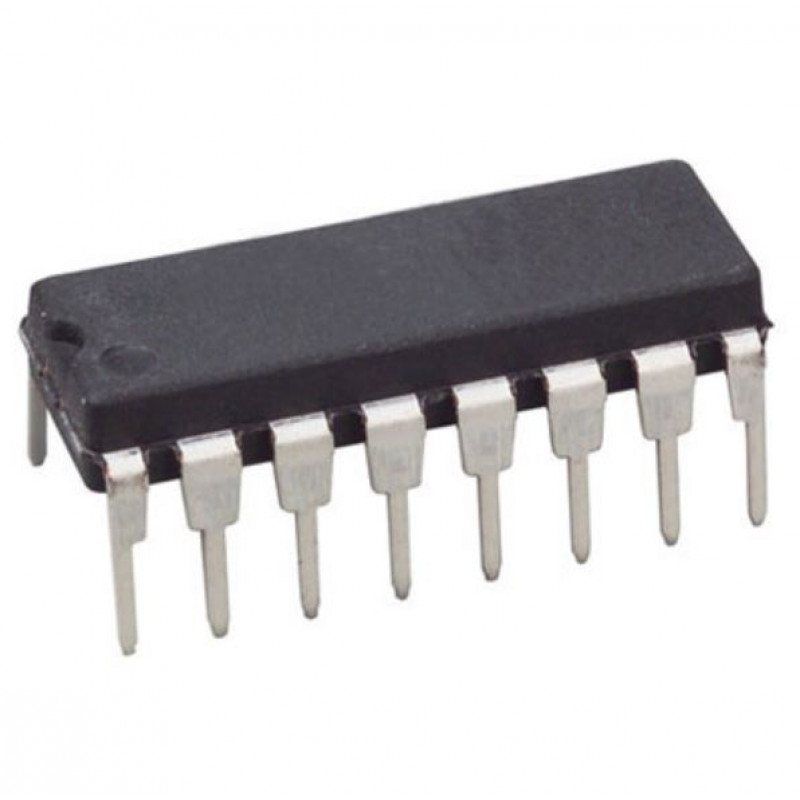

CD4010 Hex Buffer/Converter IC DIP-16 Package
- Product Code: EC-1815
- Availability: 1505
-
Rs.23.00
- (Excluding 18% GST)
