The CD4016 is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4066B.
Features:-
- Wide supply voltage range: 3V to 15V
- Wide range of digital and analog switching: ±7.5 VPEAK
- “ON” resistance for 15V operation: 400Ω (typ.)
- Matched “ON” resistance over 15V signal input: ∆RON = 10Ω (typ.)
- High degree of linearity: 0.4% distortion (typ.) @ fIS = 1 kHz, VIS = 5 Vp-p, VDD−VSS = 10V, RL = 10 kΩ
- Extremely low “OFF” switch leakage: 0.1 nA (typ.) @ VDD − VSS = 10V TA = 25°C
- Extremely high control input impedance: 1012Ω (typ.)
- Low crosstalk between switches: −50 dB (typ.) @ fIS = 0.9 MHz, RL = 1 kΩ
- Frequency response, switch “ON”: 40 MHz (typ.)
Specifications:-
| Parameter | Specification |
| VDD Supply Voltage | −0.5V to +18V |
| VIN Input Voltage | −0.5V to VDD + 0.5V |
| TS Storage Temperature Range | −65°C to + 150°C |
| Power Dissipation (PD): Dual-In-Line | 700 mW |
| Lead Temperature | 260°C |
(For more detailed specification refer Data Sheet)
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 23.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

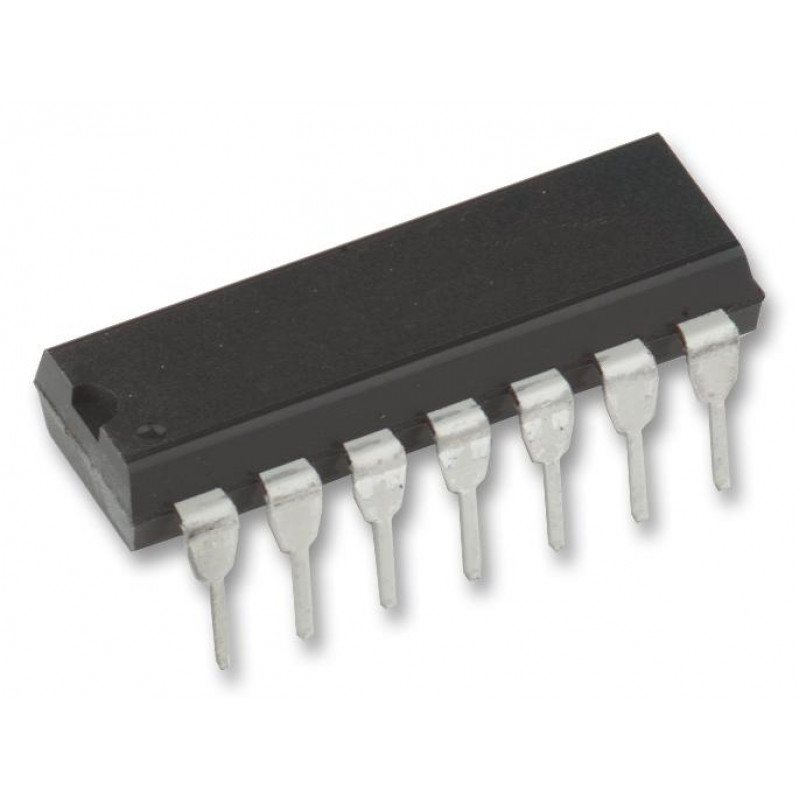

CD4016 Quad Bilateral Switch IC DIP-14 Package
- Product Code: EC-0513
- Availability: 2341
-
Rs.20.00
- (Excluding 18% GST)
