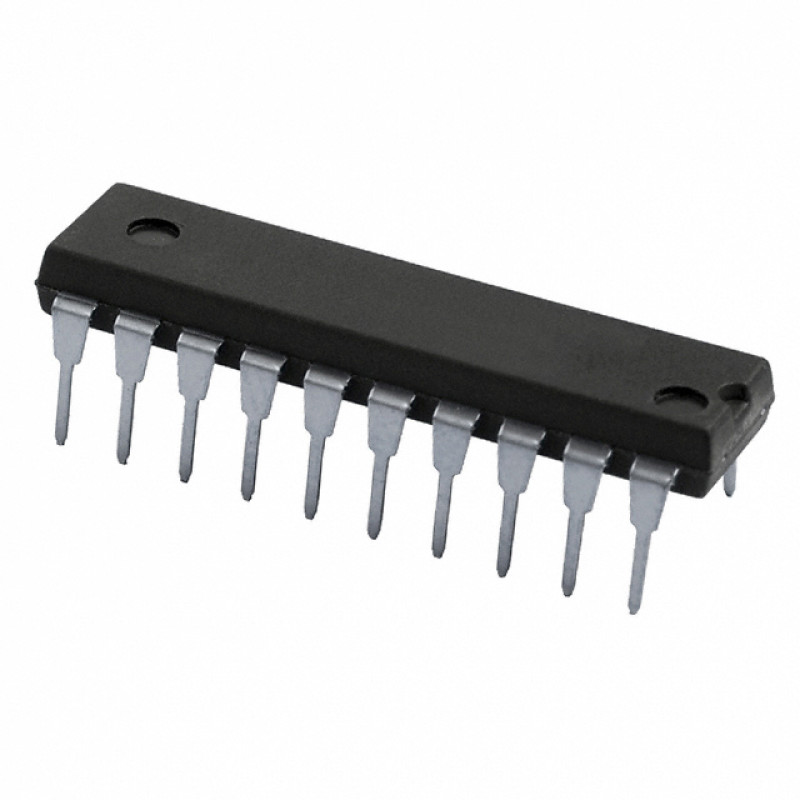

  • HI7190IP 24-Bit High Precision Sigma-Delta A/D Converter IC DIP-20 Package

The HI7190IP is a monolithic instrumentation, sigma delta A/D converter which operates from ±5V supplies. Both the signal and reference inputs are fully differential for maximum flexibility and performance. An internal Programmable Gain Instrumentation Amplifier (PGIA) provides input gains from 1 to 128 eliminating the need for external pre-amplifiers. The on-demand converter auto calibrate function is capable of removing offset and gain errors existing in external and internal circuitry. The onboard user programmable digital filter provides over 120dB of 60/50Hz noise rejection and allows fine tuning of resolution and conversion speed over a wide dynamic range. The HI7190 and HI7191 are functionally the same device, but the HI7190 has tighter linearity specifications. The HI7190 contains a serial I/O port and is compatible with most synchronous transfer formats including both the Motorola 6805/11 series SPI and Intel 8051 series SSR protocols. A sophisticated set of commands gives the user control over calibration, PGIA gain, device selection, standby mode, and several other features. The On-chip Calibration Registers allow the user to read and write calibration data.


Features:-

22-Bit Resolution with No Missing Code

• 0.0007% Integral Non-Linearity (Typ)

• 20mV to ±2.5V Full Scale Input Ranges

• Internal PGIA with Gains of 1 to 128

• Serial Data I/O Interface, SPI Compatible

• Differential Analog and Reference Inputs

• Internal or System Calibration

• 120dB Rejection of 60/50Hz Line Noise

• Settling Time of 4 Conversions (Max) for a Step Input


Specifications:-

Parameters Specification
Supply Voltage AVDD to AGND +5.5V
AVSS to AGND -5.5V
DVDD to DGND +5.5V
DGND to AGND  ±0.3V
Analog Input Pins AVSS to AVDD
Digital Input, Output and I/O Pins  DGND to DVDD
ESD Tolerance  Human Body Model 500 V
Machine Model 100 V
Charged Device Model 1000 V
Temperature Range -40°C to 85°C


Related Document:-

 HI7190IP IC Datasheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1504.5 (Inclusive of all Taxes)
