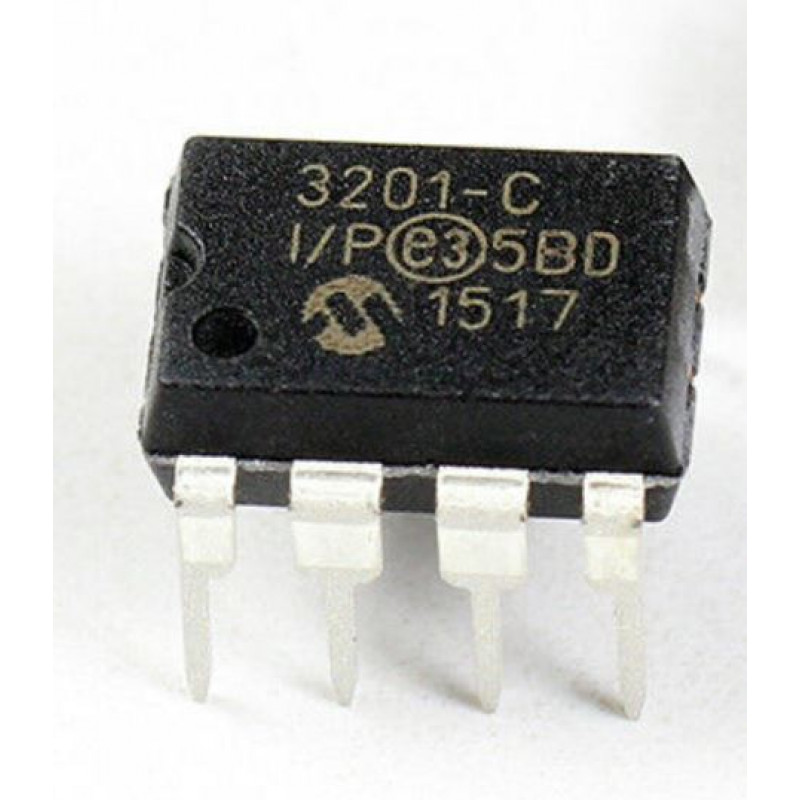

  • MCP3201 12-Bit A/D Converter (ADC) with SPI Interface IC DIP-8 Package

The Microchip Technology Inc. MCP3201 is a successive approximation 12-bit Analog-to-Digital (A/D) Converter with on-board sample and hold circuitry. The device provides a single pseudo-differential input. Differential Nonlinearity (DNL) is specified at ±1 LSB, and Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3201-B) and ±2 LSB (MCP3201-C) versions. Communication with the device is done using a simple serial interface compatible with the SPI protocol. The device is capable of sample rates of up to 100 ksps at a clock rate of 1.6 MHz. The MCP3201 operates over a broad voltage range (2.7V - 5.5V). Low current design permits operation with typical standby and active currents of only 500 nA and 300 µA, respectively. The device is offered in 8-pin MSOP, PDIP, TSSOP and 150 mil SOIC packages.


Features:-

• 12-bit resolution

• ±1 LSB max DNL

• ±1 LSB max INL (MCP3201-B)

• ±2 LSB max INL (MCP3201-C)

• On-chip sample and hold

• SPI™ serial interface (modes 0,0 and 1,1)

• Single supply operation: 2.7V - 5.5V

• 100ksps max. sampling rate at VDD = 5V

• 50ksps max. sampling rate at VDD = 2.7V

• Low power CMOS technology

• 500 nA typical standby current, 2 µA max.

• 400 µA max. active current at 5V

• Industrial temp range: -40°C to +85°C

• 8-pin MSOP, PDIP, SOIC and TSSOP packages


Specifications:-

Parameters Specification
VDD 7.0V
All Inputs and Outputs w.r.t. VSS  -0.6V to VDD +0.6V
Storage Temperature -65°C to +150°C
Ambient temperature with power applied –65°C to +125°C
Soldering temperature of leads (10 seconds)  +300°C
ESD Protection On All Pins (HBM) ≥ 4 Kv


Related Document:-

 MCP3201 IC Datasheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 161.66 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

MCP3201 12-Bit A/D Converter (ADC) with SPI Interface IC DIP-8 Package

  • Product Code: EC-1827
  • Availability: 1543
  • Rs.185.00
  • (Excluding 18% GST)
