The ISD1760 is a high quality, fully integrated, single-chip multi-message voice record and playback device ideally suited to a variety of electronic systems. The message duration is around 75 seconds. The sampling frequency of each device can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating voltage spans a range from 2.4 V to 5.5 V to ensure that the ISD1700 devices are optimized for a wide range of battery or line-powered applications.
The ISD1700 is designed for operation in either stand-alone or microcontroller (SPI) mode. The device incorporates a proprietary message management system that allows the chip to self-manage address locations for multiple messages. This unique feature provides sophisticated messaging flexibility in a simple, push-button environment. The devices include an on-chip oscillator (with external resistor control) , microphone preamplifier with Automatic Gain Control (AGC) , an auxiliary analog input, anti-aliasing filter, Multi-Level Storage (MLS) array, smoothing filter, volume control, Pulse Width Modulation (PWM) Class D speaker driver, and current output.
Features:-
- Non-volatile message storage using patented multi-level storage (MLS)
- 4.0 to 12.0KHz Sampling Frequency provides Industry-Leading Sound Quality
- Designed for Message Management
- Single/Multiple messages
- Low Voltage Operation
- Package: DIP
Datasheet:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 289.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

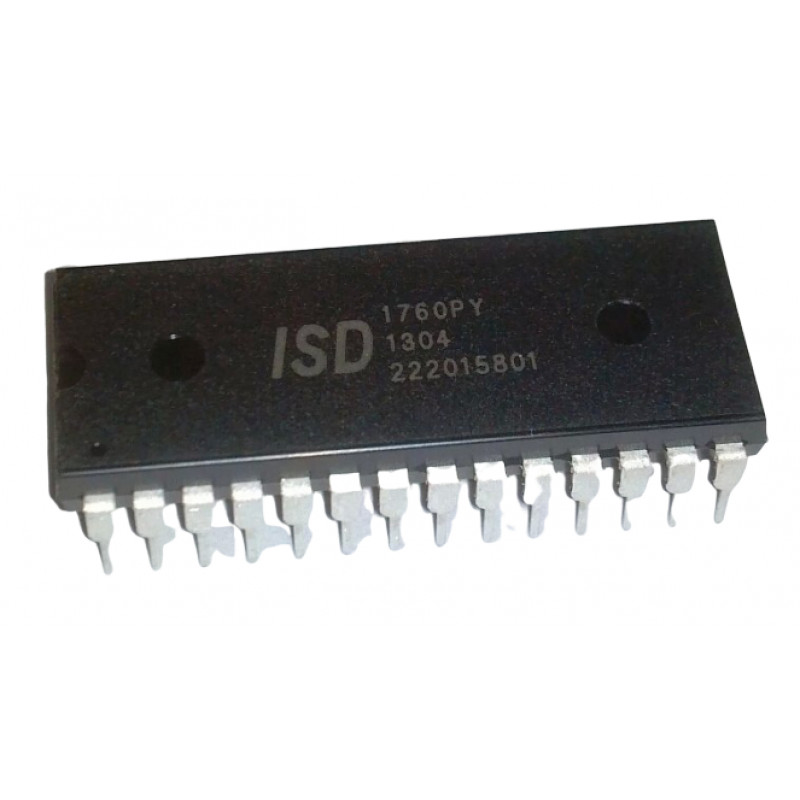

ISD1760 Multi-message Single-chip Voice Record Playback IC DIP-28 Package
- Product Code: EC-3051
- Availability: Out Of Stock
-
Rs.245.00
- (Excluding 18% GST)
