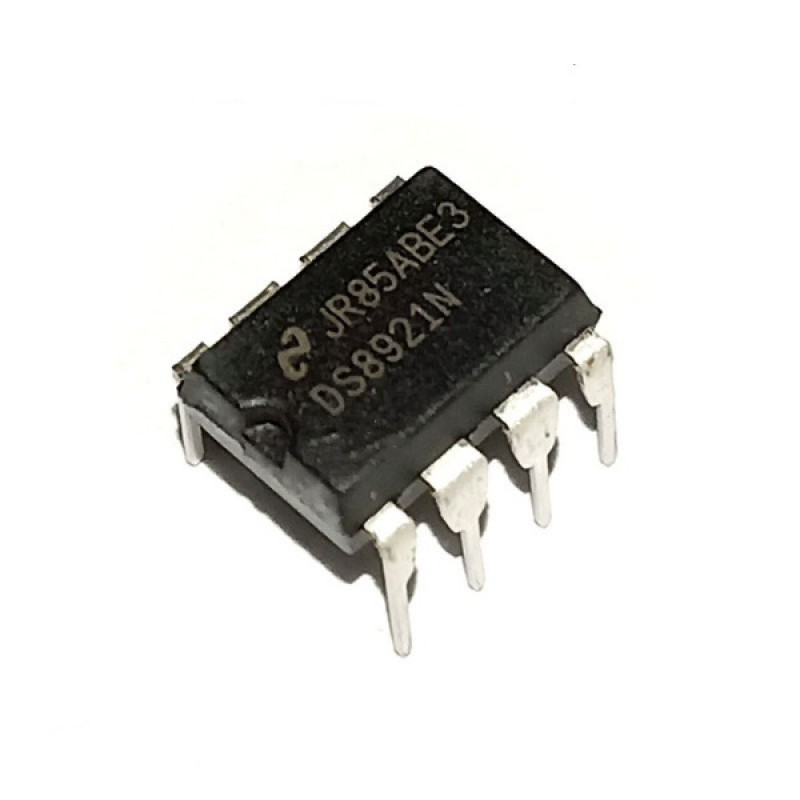

• DS8921 Differential Line Driver and Receiver Pair IC DIP-8 Package

The DS8921 device are differential line driver and receiver pairs designed specifically for applications meeting the ST506, ST412, and ESDI disk drive standards. In addition, these devices meet the requirements of the EIA standard RS-422.

The DS8921x receivers offer an input sensitivity of 200 mV over a &plsumn;7 V common mode operating range. Hysteresis is incorporated (typically 70 mV) to improve noise margin for slowly changing input waveforms.

The DS8921x drivers are designed to provide unipolar differential drive to twisted-pair or parallel wire transmission lines. Complementary outputs are logically ANDed and provide an output skew of 0.5 ns (typical) with propagation delays of 12 ns.

The DS8921x devices are designed to be compatible with TTL and CMOS.


Features:-

  • 12-ns Typical Propagation Delay
  • Output Skew: 0.5 ns Typical
  • Meets the Requirements of EIA Standard RS-422
  • Complementary Driver Outputs
  • High Differential or Common-Mode Input Voltage
    Ranges of ±7 V
  • ±0.2 V Receiver Sensitivity Over the
    Input Voltage Range
  • Receiver Input Hysteresis: 70 mV Typical
  • DS8921AT Industrial Temperature Operation:
    (–40°C to +85°C)


 Specifications:-

Parameter Values
Part number DS8921
Supply voltage(s) (Nom)     (V) 5
Number of TX 1
Number of RX 1
Duplex Full
Signaling rate (Max) (Mbps) 10
IEC 61000-4-2 contact (+/- kV) None
HBM ESD(kV) 2
Fault protection(V) -12 to 12
Number of nodes 32
Common mode range -7 to 7
ICC(Max)(mA) 35
Isolated No
Operating temperature range(C) -40 to 85, 0 to 70
Package Group SOIC | 8


Related Document:-

 DS8921 IC Datasheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

DS8921 Differential Line Driver and Receiver Pair IC DIP-8 Package

  • Product Code: EC-2441
  • Availability: 121
  • Rs.155.00
  • (Excluding 18% GST)
