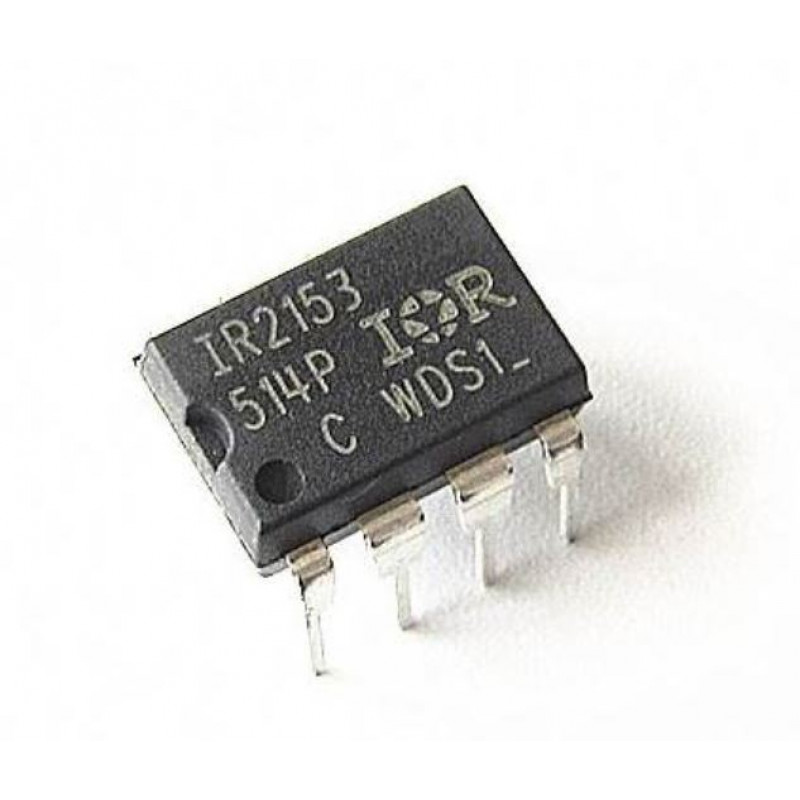

  • IR2153 Self Oscillating Half Bridge Driver IC DIP-8 Package

The IR2153 is an improved version of the popular IR2155 and IR2151 gate driver ICs, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. The IR2153 provides more functionality and is easier to use than previous ICs. A shutdown feature has been designed into the CT pin, so that both gate driver outputs can be disabled using a low voltage control signal. In addition, the gate driver output pulse widths are the same once the rising undervoltage lockout threshold on VCC has been reached, resulting in a more stable profile of frequency vs time at startup. Noise immunity has been improved significantly, both by lowering the peak di/dt of the gate drivers, and by increasing the undervoltage lockout hysteresis to 1V. Finally, special attention has been payed to maximizing the latch immunity of the device, and providing comprehensive ESD protection on all pins.


Features:-

  • Integrated 600V half-bridge gate driver
  • 15.6V zener clamp on Vcc • True micropower start up
  • Tighter initial deadtime control
  • Low temperature coefficient deadtime
  • Shutdown feature (1/6th Vcc) on CT pin
  • Increased undervoltage lockout Hysteresis (1V)
  • Lower power level-shifting circuit
  • Constant LO, HO pulse widths at startup
  • Lower di/dt gate driver for better noise immunity
  • Low side output in phase with RT
  • Internal 50nsec (typ.) bootstrap diode (IR2153D)
  • Excellent latch immunity on all inputs and outputs
  • ESD protection on all leads
  • Also available LEAD-FREE


Specifications:-

Parameter Min Max Unit
VB-High side floating supply voltage -0.3 625 V
VS- High side floating supply offset voltage VB -25 VB +0.3 V
VHO- High side floating output voltage VS -0.3 VB +0.3 V
VLO- Low side output voltage -0.3 VCC+0.3 V
VRT- RT pin voltage -0.3 VCC+0.3 V
ICC-Supply current (note 1) - 25 mA


Related Document:-

 IR2153 IC Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 93.22 (Inclusive of all Taxes)
