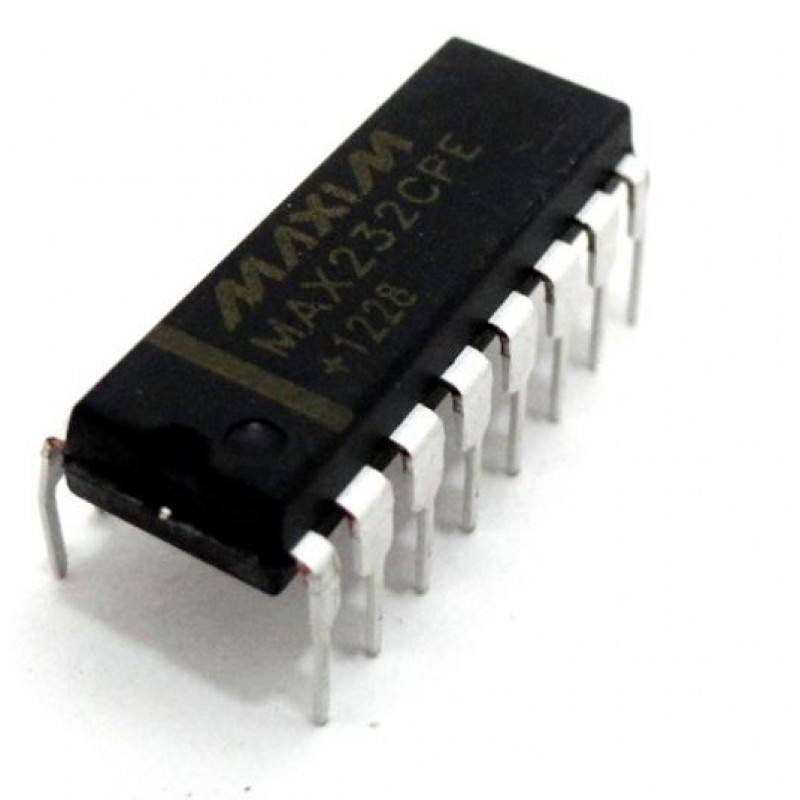

• MAX232 Dual Driver/Receiver IC DIP-16 Package

The MAX232E is from the family of RS-232 and V.28 transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA232E and CCITT V.28 specifications at data rates up to 120kbps when loaded. The MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages.


Features:-

  • Saves Board Space
  • Integrated High ±15kV HBM ESD Protection
  • Integrated Charge Pump Circuitry-Eliminates the Need for a Bipolar ±12V Supply, Enables Single Supply Operation From +5V Supply


Specification:-

Parameters Value
No. Of RS-232 Drivers 2
No. Of RS-232 Receivers 2
Receivers Active In Shutdown 0
No. Of External Capacitors (µf) 4(1)
Low-Power Shutdown No
TTL Tristate No


Related Document:-

  MAX232 IC Datasheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

MAX232 Dual Driver/Receiver IC DIP-16 Package

  • Product Code: EC-0061
  • Availability: 1623
  • Rs.19.00
  • (Excluding 18% GST)
