The INA106 is a monolithic Gain = 10 differential amplifier consisting of a precision op amp and on-chip metal film resistors. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The differential amplifier is the foundation of many commonly used circuits. The INA106 provides this precision circuit function without using an expensive resistor network. The INA106 is available in 8-pin plastic DIP and SO-8 surface-mount packages.
Features:-
● Accurate Gain: ±0.025% max
● High Common-mode Rejection: 86dB min
● Non linearty: 0.001% max
● Easy to Use
● Plastic 8-PIN DIP, SO-8 SOIC Packages
Specification:-
| Parameter | Specification |
| Power Supply Voltage | +18V |
| Input Voltage Range | ±VS |
| Storage Temperature Range | –40°C to +85°C |
| Lead Temperature | +300°C |
| Operating Temperature Range | +260°C |
| Output Short Circuit to Common | Continuous |
Related Document:-
INA106 IC Datasheet
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

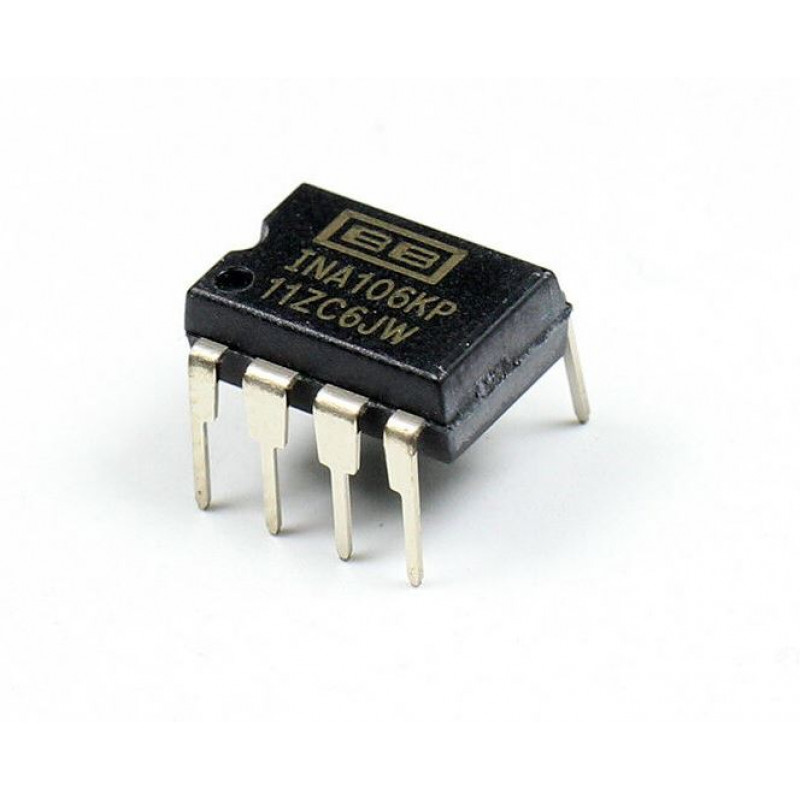

INA106 Difference Amplifier IC DIP-8 Package
- Product Code: EC-1560
- Availability: 83
-
Rs.820.10
