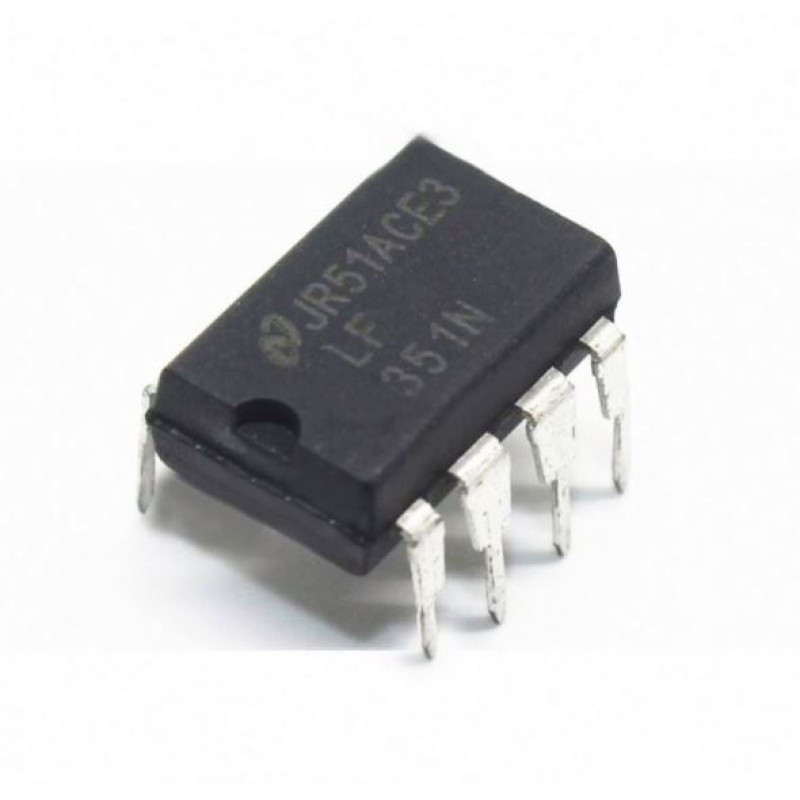

• LF351 Wide Bandwidth JFET Input Op-Amp IC DIP-8 Package

The LF351 is a low cost high speed JFET input operational amplifier with an internally trimmed input offset voltage (BI-FET IITM technology). The device requires a low supply current and yet maintains a large gain bandwidth product and a fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The LF351 is pin compatible with the standard LM741 and uses the same offset voltage adjustment circuitry. This feature allows designers to immediately upgrade the overall performance of existing LM741 designs. The LF351 may be used in applications such as high speed integrators, fast D/A converters, sample-and-hold circuits and many other circuits requiring low input offset voltage, low input bias current, high input impedance, high slew rate and wide bandwidth. The device has low noise and offset voltage drift, but for applications where these requirements are critical, the LF356 is recommended. If maximum supply current is important, however, the LF351 is the better choice.


Features:-

 Internally trimmed offset voltage 10 mV

Low input bias current 50 pA

Low input noise voltage 25 nV/0Hz

Low input noise current 0.01 pA/0Hz

Wide gain bandwidth 4 MHz

High slew rate 13 V/ms

Low supply current 1.8 mA

High input impedance 1012X

Low total harmonic distortion AVe10, k0.02% RLe10k, VOe20 Vp-p, BWe20 Hz –20 kHz

Low 1/f noise corner 50 Hz

Fast settling time to 0.01% 2 ms


Specification:-

Parameter Specification
Supply Voltage Never to be Crossed  +/-18V
Power Dissipation without Heatsink applied 670 mW
Operating Temperature Range 0° C to +70° C
Tj(MAX) 115° C
Differential Input Voltage +/-30V
Supply Voltage Range on Input Pin +/-15V
Period for which Output can be held at Short Circuit Continuous
Storage Temperature Range -65° C to +150° C
IC Pin Temp. (Soldering, not to exceed 10 sec.)  Metal Can 300° C
DIP 260° C


Related Document:-

 LF351 IC Datasheet
