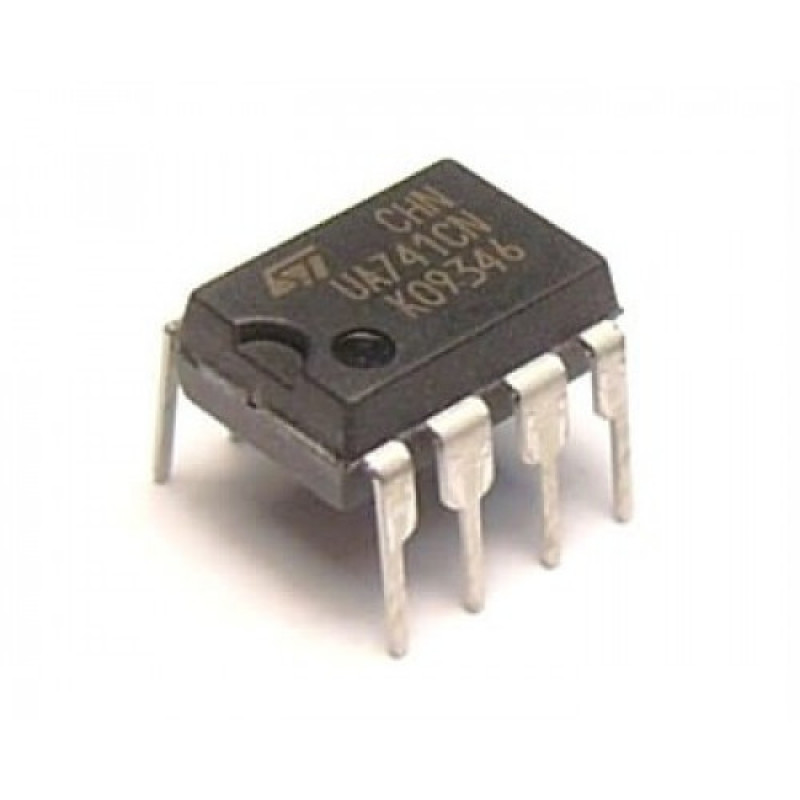

  • LM741 UA741 General Purpose Op-Amp IC DIP-8 Package

The 741 series are general-purpose operational  amplifier which features improved performance over industry standards like LM709. They are direct, Exceeded plug-in replacements for the 709C, LM201, MC1439, and 748 in most applications. The amplifiers offer many features which make theirs application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations. The LM741C is identical to the LM741 and LM741A except that the LM741C has their performance ensured over a 0°C to +70°C temperature range, instead of −55°C to +125°C.


Features:-

• Overload Protection on the Input and Output amplifiers which feature improved performance over

• No Latch-Up When the Common-Mode Range is industry standards like the LM709.


Specification:-

Parameter Test Conditions Min Type Max Unit
Input offset voltage RS ≤ 10 kΩ TA = 25°C
1 5 m V
TAMIN ≤ TA ≤ TAMAX

6 m V
Input offset voltage  TA = 25°C, VS = ±20 V
±15
m V
Input offset current TA = 25°C
20 200 n A
TAMIN ≤ TA ≤ TAMAX
85 500
Input resistance TA = 25°C, VS = ±20 V 0.3 2
Input voltage range TAMIN ≤ TA ≤ TAMAX ±12 ±13
V
Output short circuit current TA = 25°C
25
m A


Related Document:-

 LM741 IC Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 14.16 (Inclusive of all Taxes)
