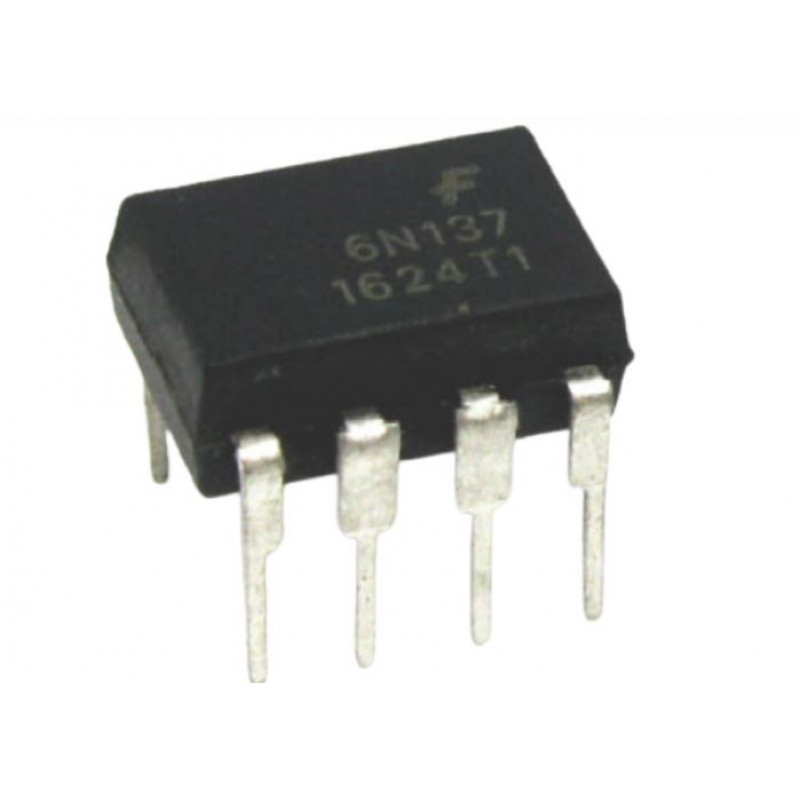

  • 6N137 - High Speed Optocoupler

The 6N137 is single channel 10 MBd opto-couplers utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor output. For the single channel type, an enable function on pin 7 allows the detector to be strobed. The use of a 0.1 μF bypass capacitor connected between pin 5 and 8 is recommended.


Features of 6N137 High Speed Opto-coupler:-

  • Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1000 V/μs
  • High speed: 10 MBd typical
  • +5 V CMOS compatibility
  • Pure tin leads
  • Guaranteed AC and DC performance over temperature: -40 °C to +100 °C temperature range
  • Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) requirements
  • Low input current capability of 5 mA

Applications of 6N137 High Speed Optocoupler:-

  • Microprocessor system interface
  • PLC, ATE input/output isolation
  • Computer peripheral interface
  • Digital fieldbus isolation: CC-link, DeviceNet, profibus, SDS
  • High speed A/D and D/A conversion
  • AC plasma display panel level shifting
  • Multiplexed data transmission
  • Digital control power supply
  • Ground loop elimination, noise isolation

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 31.86 (Inclusive of all Taxes)
