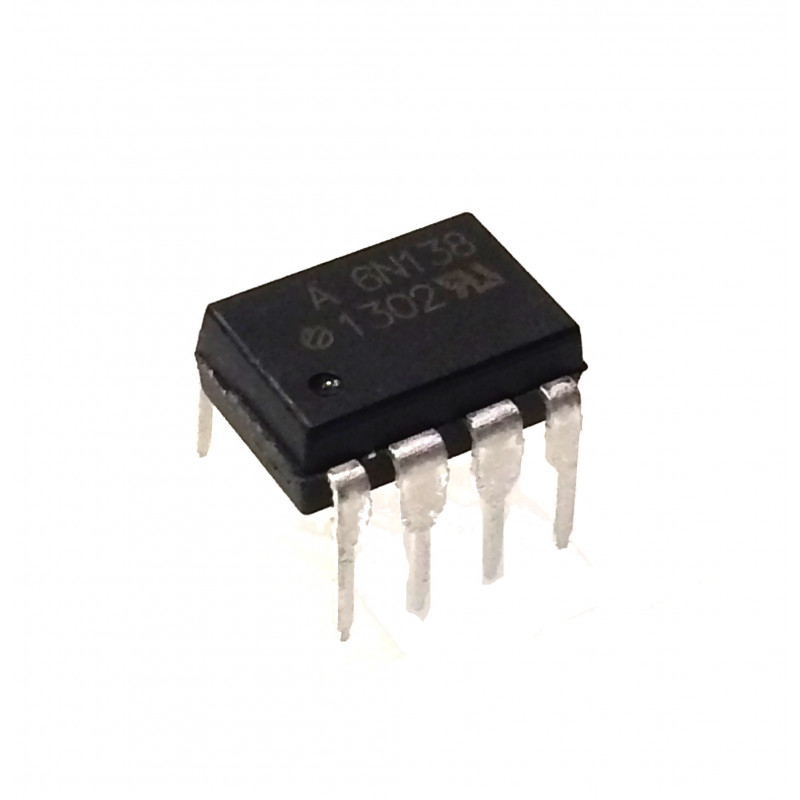

  • 6N138 - High Speed Optocoupler

The 6N138 consists of a GaAℓAs infrared emitting diode coupled with a split-Darlington output configuration. A high speed GaAℓAs Ired manufactured with an unique LPE junction, has the virtue of fast rise and fall time at low drive current.

The 6N138 is ideal for TTL applications since the 300 % minimum current transfer ratio with an LED current of 1.6 mA enables operation with one unit load-in and one unit load-out with a 2.2 kΩ pull-up resistor

Features of 6N138 Optocoupler:-

  • High current transfer ratio, 300 %
  • Low input current, 0.5 mA
  • High output current, 60 mA
  • Isolation test voltage, 5300 VRMS
  • TTL compatible output, VOL = 0.1 V
  • High common mode rejection, 500 V/μs
  • Adjustable bandwidth-access to base


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 40.12 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

6N138 - High Speed Optocoupler

  • Product Code: EC-2845
  • Availability: 624
  • Rs.34.00
  • (Excluding 18% GST)
