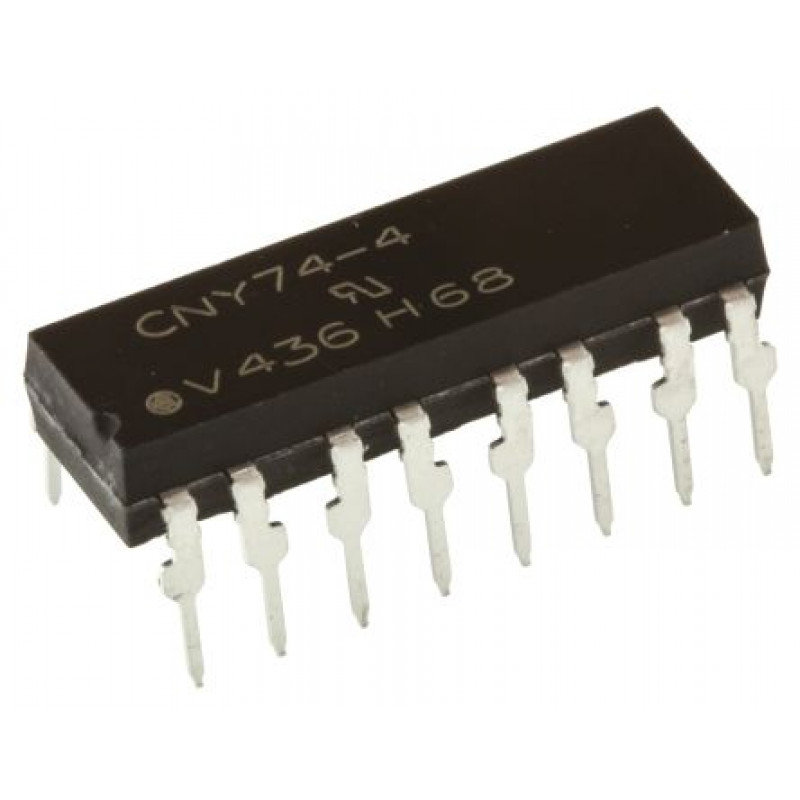

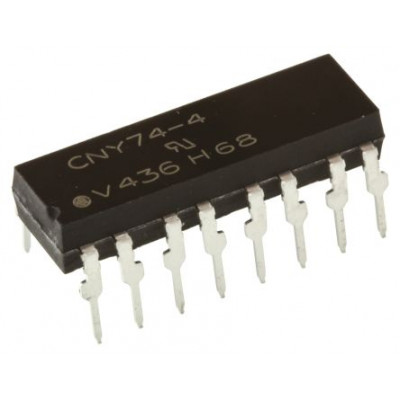

  • CNY74-4 IC - 4-Channel Optocoupler with Phototransistor IC

The CNY74-4 consist of a photo transistor optically coupled to a gallium arsenide infrared-emitting diode in an 8-lead, resp. 16-lead plastic dual inline package. The elements are mounted on one lead frame using a co planar technique, providing a fixed distance between input and output for highest safety requirements.

Features:-

• CNY74-4 includes 4 isolator channels

DC isolation test voltage VIO = 2.5 kV

Test class 25/100/21 DIN 40 045

Low coupling capacitance of typical 0.3 pF

Current Transfer Ratio (CTR) of typical 100%

Low temperature coefficient of CTR

Wide ambient temperature range

Applications:- Galvanically separated circuits, non-interacting switches.

Specification:-

Symbol Parameter Value Unit
VR Reverse voltage 6 V
IF Forward current 60 mA
IFSM Surge current 1.5 A
PV Power dissipation 100 mW
VCEO Collector-emitter breakdown voltage 70 V
VEBO Emitter-base breakdown voltage 7 V
IC Collector current 100 mA
TJ Junction temperature 125 °C
ICM Peak collector current 100 mA


Related Document:-

 CNY74-4 IC Data Sheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 143.96 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

CNY74-4 IC - 4-Channel Optocoupler with Phototransistor IC

  • Product Code: EC-1954
  • Availability: 769
  • Rs.122.00
  • (Excluding 18% GST)

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 9 0% 122.0000
    10 - 24 2% Rs.120.00
    25 - 49 4% Rs.117.00
    50 - 99 7% Rs.114.00
    100+ 10% Rs.110.00
