  • H11AA1 Transistor Output Optocoupler IC DIP-6 Package

The H11AA1 is a bi-directional input optically coupled isolator consisting of two inverse parallel gallium arsenide infrared LEDs coupled to a silicon NPN photo transistor in a 6 pin DIP package. The H11AA1 has a minimum CTR of 20 %, a CTR symmetry of 1:3 and is designed for applications requiring detection or monitoring of AC signals.

Features:-

• AC or polarity insensitive input

• Built-in reverse polarity input protection

• I/O compatible with integrated circuits

• Industry standard DIP package

• Isolation test voltage: 5300 VRMS

• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

Applications:-

 Telephone line detection

• AC line motor

• PLC

• Instrumentation

Specification:-

Symbol Parameter Value Unit
IF Forward current ± 60 mA
PV Power dissipation 100 mW
VCEO Collector-emitter breakdown voltage 30 V
VEBO Emitter-base breakdown voltage 5 V
IC Collector current 100 mA
TJ Junction temperature 100 °C
Tstg Storage temperature range - 55 to + 150 °C


Related Document:-

 H11AA1 IC Data Sheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 40.12 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

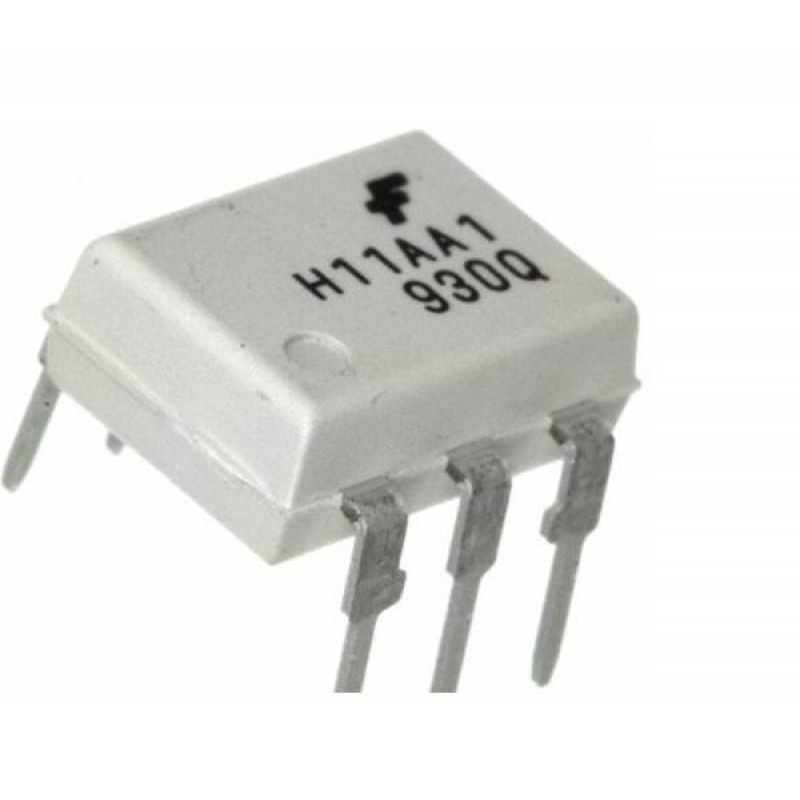

H11AA1 Transistor Output Optocoupler IC DIP-6 Package
