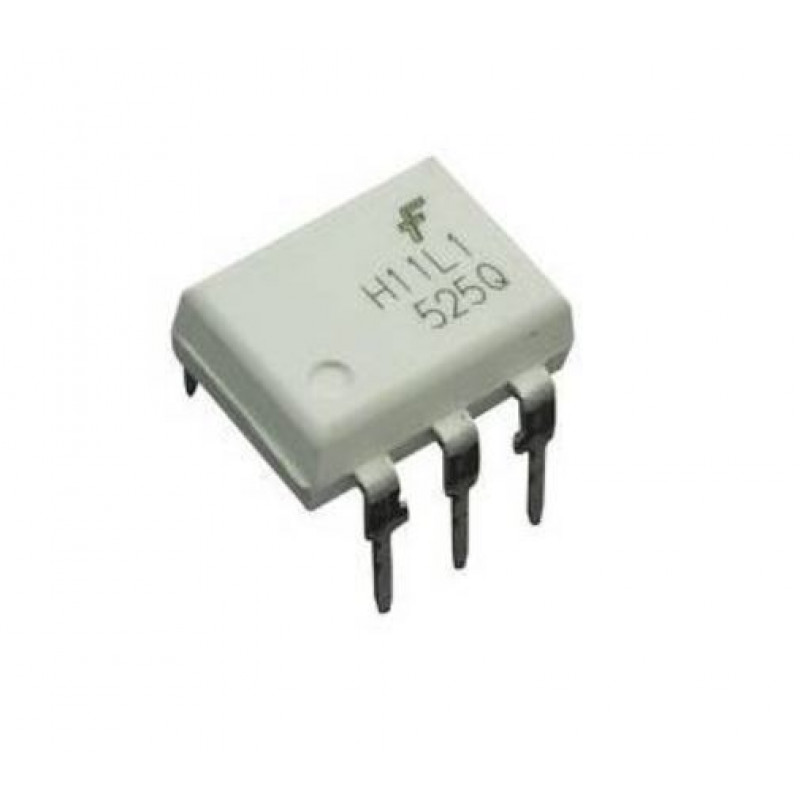

  • H11L1 Schmitt Trigger Output Optocoupler IC DIP-6 Package

The H11L1 consist of a Schmitt Trigger optically coupled to a gallium arsenide Infrared-emitting diode in a 6-lead DIP package with different lead forming options.

Features:-

• High isolation 5000 VRMS

DC input with Schmitt Trigger output

1MHz(NRZ) data rate

RoHS compliance

REACH compliance

Temperature range - 55 °C to 100 °C

Regulatory Approvals

    - UL - UL1577 (E364000)

    - VDE - EN60747-5-5(VDE0884-5)

    - CQC – GB4943.1, GB8898

    - IEC60065, IEC60950

Applications:-

 Line Receiver

Logic to Logic Isolator

Microprocessor system interface

AC to TTL conversion

Specification:-

Symbol Parameter Value Unit
VISO Isolation voltage 5000 V
TOPR   Operating temperature -55 ~ +100 °C
IF Forward current 60 mA
PD Power dissipation 100 mW
F(TRANS) Peak transient current (≤1μs P.W,300pps) 1 A
VR Reverse Voltage 6 V
Vo Output Voltage 0 to 16 V
TSTG Storage temperature range - 55 to + 150 °C
TSOL Lead Solder Temperature 260 for 10 sec °C
Vcc Supply Voltage 3 to 16 V
Io Output Current 50 mA


Related Document:-

 H11L1 IC Data Sheet




Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 76.7 (Inclusive of all Taxes)
