The MCT6 Optocouplers have two channels for density applications. For four channel applications, two-packages fit into a standard 16-pin DIP socket. Each channel is an NPN silicon planar photo transistor optically coupled to a gallium arsenide infrared emitting diode.
Features:-
• Two isolated channels per package
• Two packages fit into a 16 lead DIP socket
• Choice of three current transfer ratios
• Underwriters Laboratory (U.L.) recognized File E90700
Applications:-
• AC Line/Digital Logic – Isolate high voltage transients
• Digital Logic/Digital Logic – Eliminate spurious grounds
• Digital Logic/AC Triac Control – Isolate high voltage transients
• Twisted pair line receiver – Eliminate ground loop feedthrough
• Telephone/Telegraph line receiver – Isolate high voltage transients
• High Frequency Power Supply Feedback Control – Maintain floating grounds and transients
• Relay contact monitor – Isolate floating grounds and transients
• Power supply monitor – Isolate transients
Specification:-
| Symbol | Parameter | Value | Unit |
| IF | Forward current | 60 | mA |
| PD | Power dissipation | 100 | mW |
| VR | Reverse Voltage | 3 | V |
| Tstg | Storage temperature range | - 55 to + 150 | °C |
| TOPR | Operating Temperature | - 55 to + 150 | °C |
| TSOL | Lead Solder Temperature | 260 for 10 sec | °C |
| IF(pk) | Forward Current – Peak (PW = 1µs, 300pps) | 3 | A |
| IC | Collector current | 30 | mA |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 28.32 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

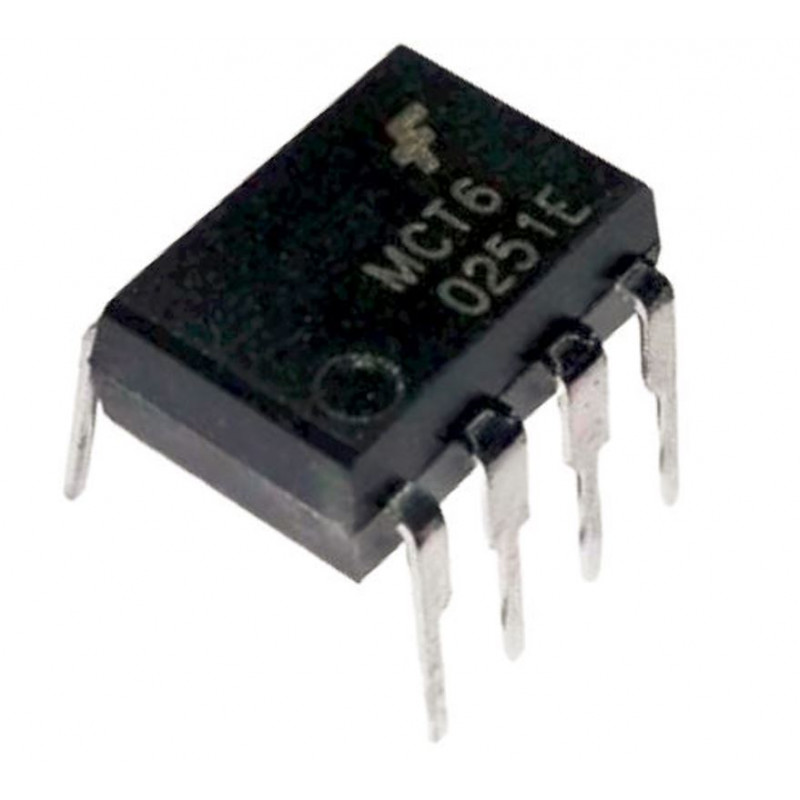

MCT6 IC - Dual Phototransistor Optocoupler IC
- Product Code: EC-0975
- Availability: 2414
-
Rs.24.00
- (Excluding 18% GST)
-
-
Wholesale Pricing
Select Quantity Discount Price per piece 1 - 9 0% 24.0000 10 - 24 1% Rs.23.75 25 - 49 4% Rs.23.00 50 - 99 8% Rs.22.00 100+ 13% Rs.21.00
