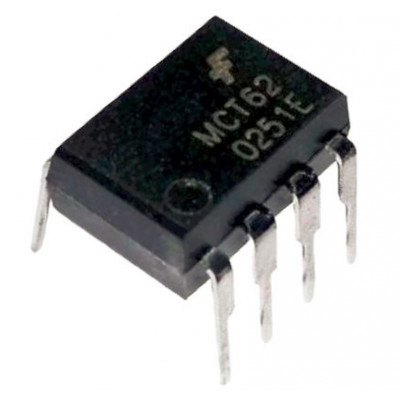

  • MCT62 IC - Dual Channel Phototransistor Optocoupler IC

The MCT62 Optocouplers have two channels for density applications. For four channel applications, two-packages fit into a standard 16-pin DIP socket. Each channel is an NPN silicon planar photo transistor optically coupled to a gallium arsenide infrared emitting diode.

Features:-

• Two isolated channels per package

Two packages fit into a 16 lead DIP socket

Choice of three current transfer ratios

Underwriters Laboratory (U.L.) recognized File E90700

Applications:-

 AC Line/Digital Logic – Isolate high voltage transients

Digital Logic/Digital Logic – Eliminate spurious grounds

Digital Logic/AC Triac Control – Isolate high voltage transients

Twisted pair line receiver – Eliminate ground loop feedthrough

Telephone/Telegraph line receiver – Isolate high voltage transients

High Frequency Power Supply Feedback Control – Maintain floating grounds and transients

Relay contact monitor – Isolate floating grounds and transients

Power supply monitor – Isolate transients

Specification:-

Symbol Parameter Value Unit
IF Forward current 60 mA
PD Power dissipation 100 mW
VR Reverse Voltage 3 V
Tstg Storage temperature range - 55 to + 150 °C
TOPR Operating Temperature - 55 to + 150 °C
TSOL Lead Solder Temperature 260 for 10 sec °C
IF(pk) Forward Current – Peak (PW = 1µs, 300pps) 3 A
IC Collector current 30 mA


Related Document:-

 MCT62 IC Data Sheet







Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 135.7 (Inclusive of all Taxes)
